Bock v2 Electric Bed and Greenline Mattress

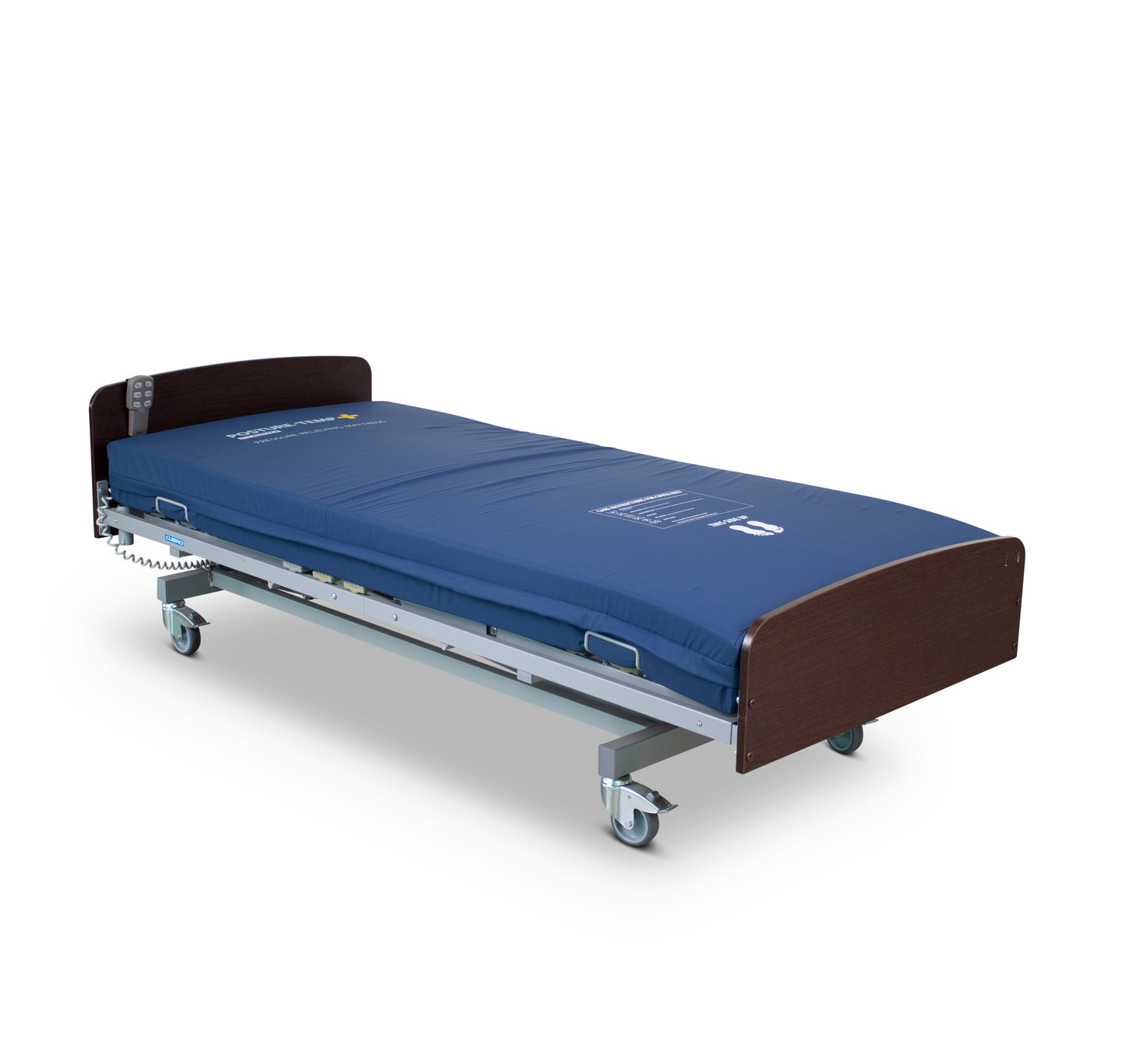

bock v2 Electric Home-Care Bed and Mattress

The German-made bock v2 is a four-section electric home-care bed designed to bring the positioning and height-adjustment functions of a care bed into a more residential-looking frame. It allows the back, knee section and overall mattress platform height to be adjusted electrically, making it easier to change between sleeping, sitting and bedside-care positions.

MoveSmart offers the bock v2 in Single and Super Single sizes. The Single is supplied with a Greenline Hyper-Foam mattress, while the wider Super Single is paired with a Posture-Temp mattress. Both sizes have a 200 kg safe working load and a maximum user weight of 165 kg.

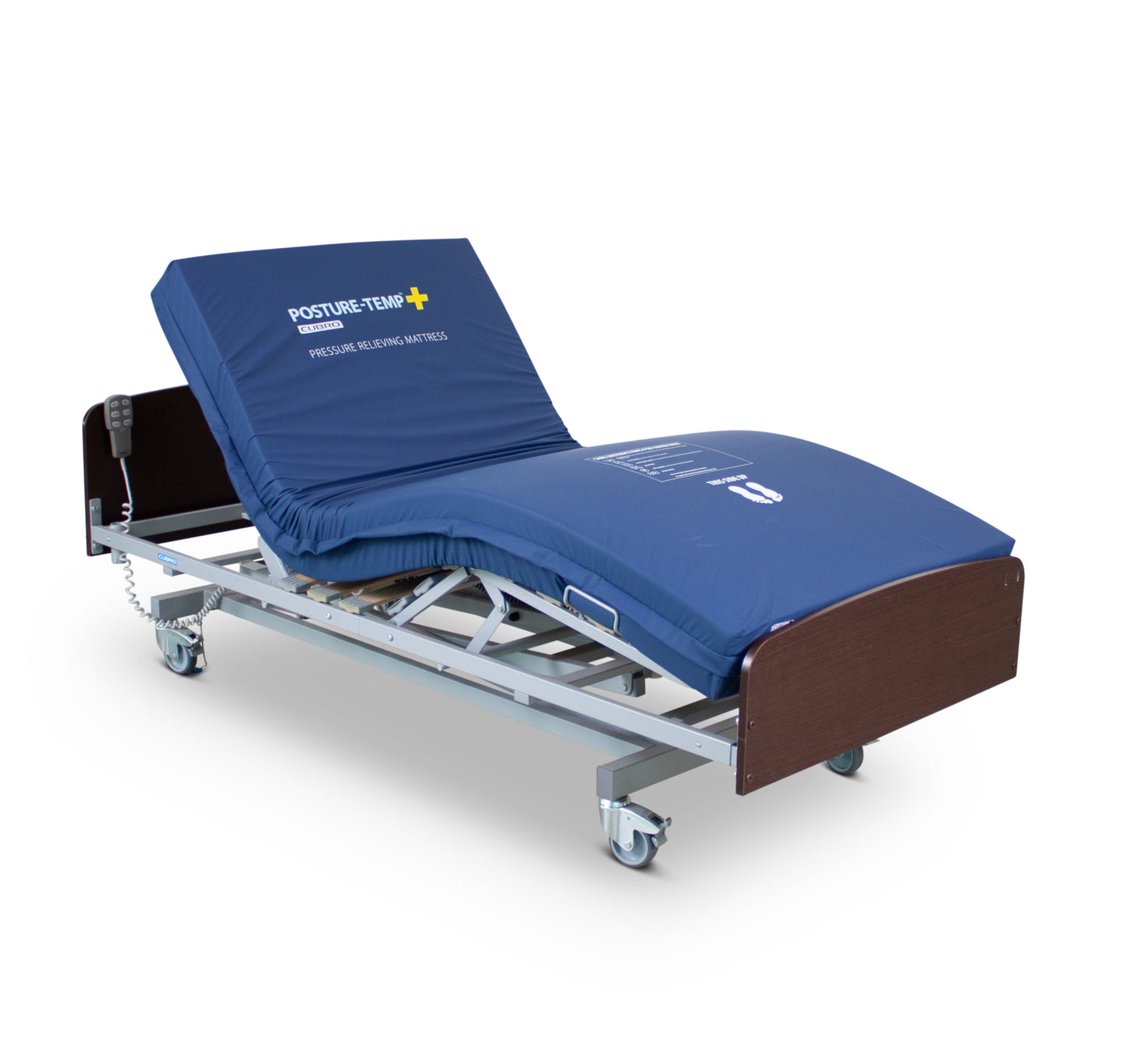

Four-Section Electric Profiling

The mattress platform is divided into four sections so the bed can support a range of lying and seated positions. The backrest raises to approximately 70°, while the knee section adjusts to approximately 35°. This allows the upper body and legs to be positioned independently rather than simply raising the entire mattress on one angle.

For everyday use, that flexibility can make activities such as reading, eating, getting comfortable in bed or preparing to stand much easier than with a fixed bed base.

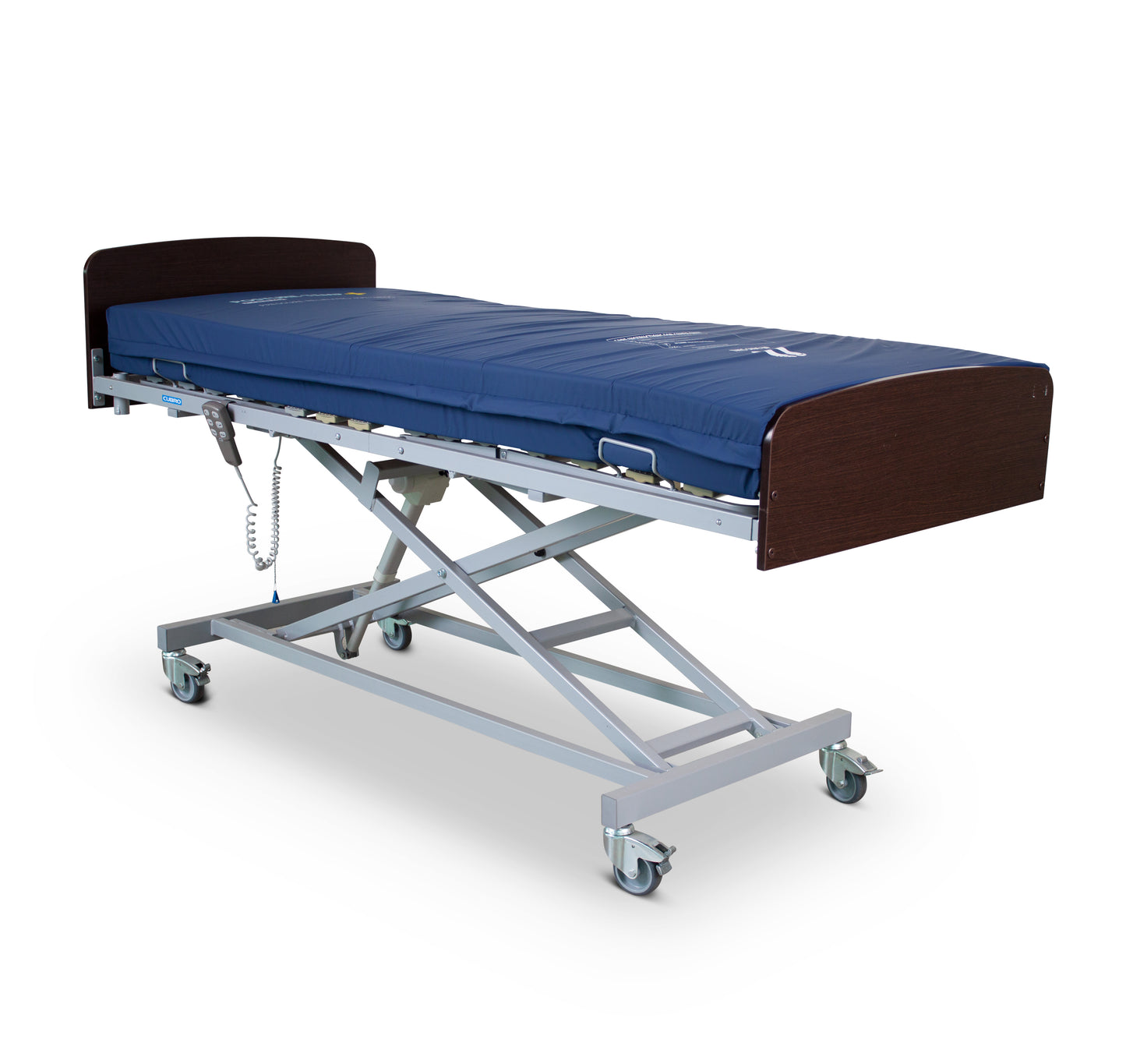

Powered Height Adjustment for Access and Care

The mattress platform adjusts from approximately 370 to 830 mm. Lower settings can make getting into and out of bed easier for some users, while raising the bed can provide a more practical working height for a family member or carer helping at the bedside.

Because both the user and the person providing assistance may have different needs, the ability to change bed height is one of the major advantages of a genuine home-care bed over a standard electric lifestyle bed.

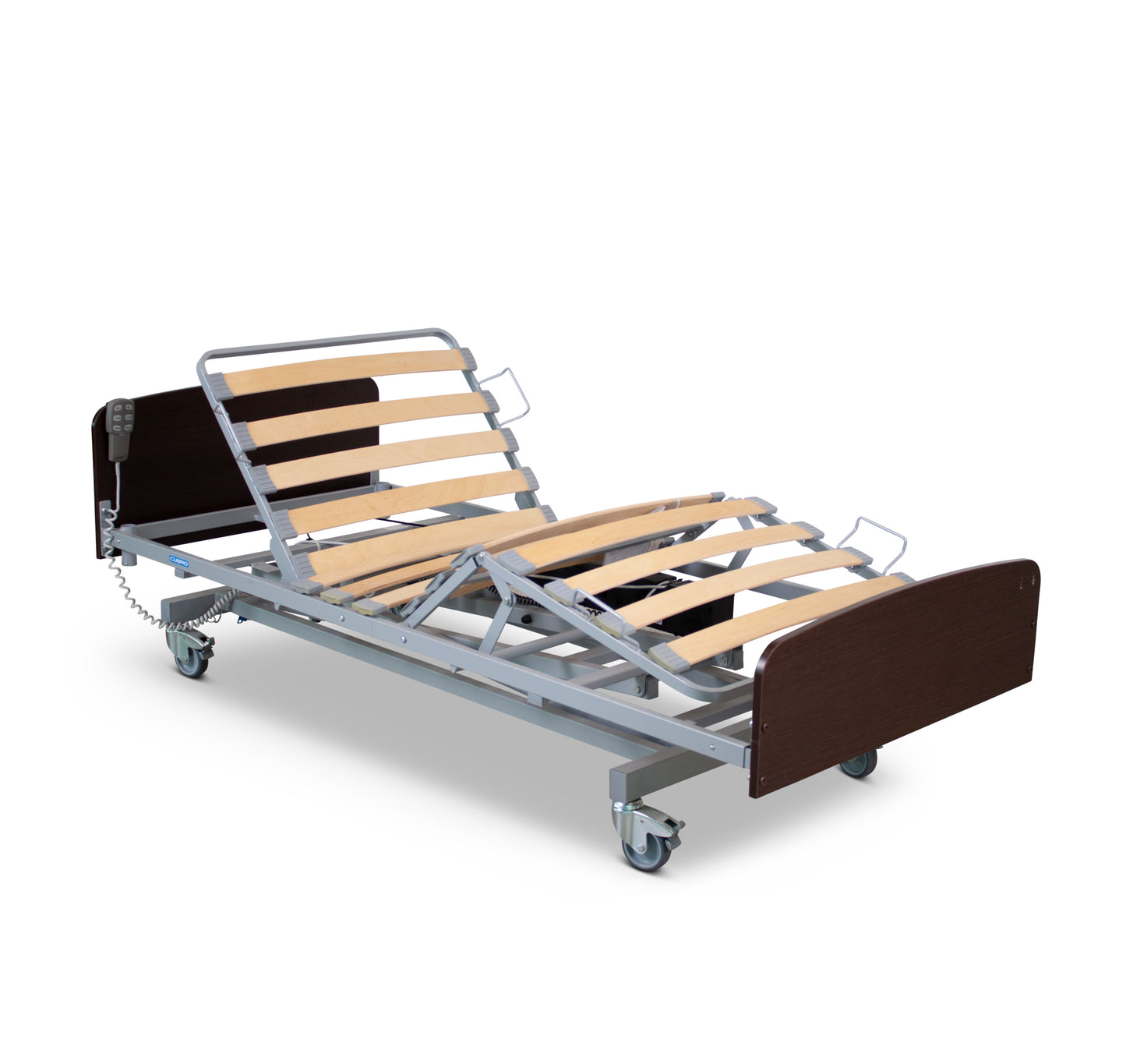

Sprung Slat Base

Rather than using a completely solid platform, the bock v2 has a sprung slat base. The slats provide ventilation beneath the mattress and a degree of flex as the profiling sections move.

The slat system is designed to work with the supplied mattress and the movement of the bed frame, so it is worth treating the bed and mattress as a matched setup rather than choosing the frame in isolation.

Single or Super Single?

The Single bed measures approximately 915 mm wide overall and uses an 880 x 1960 mm mattress. It is the more compact option where bedroom space is limited.

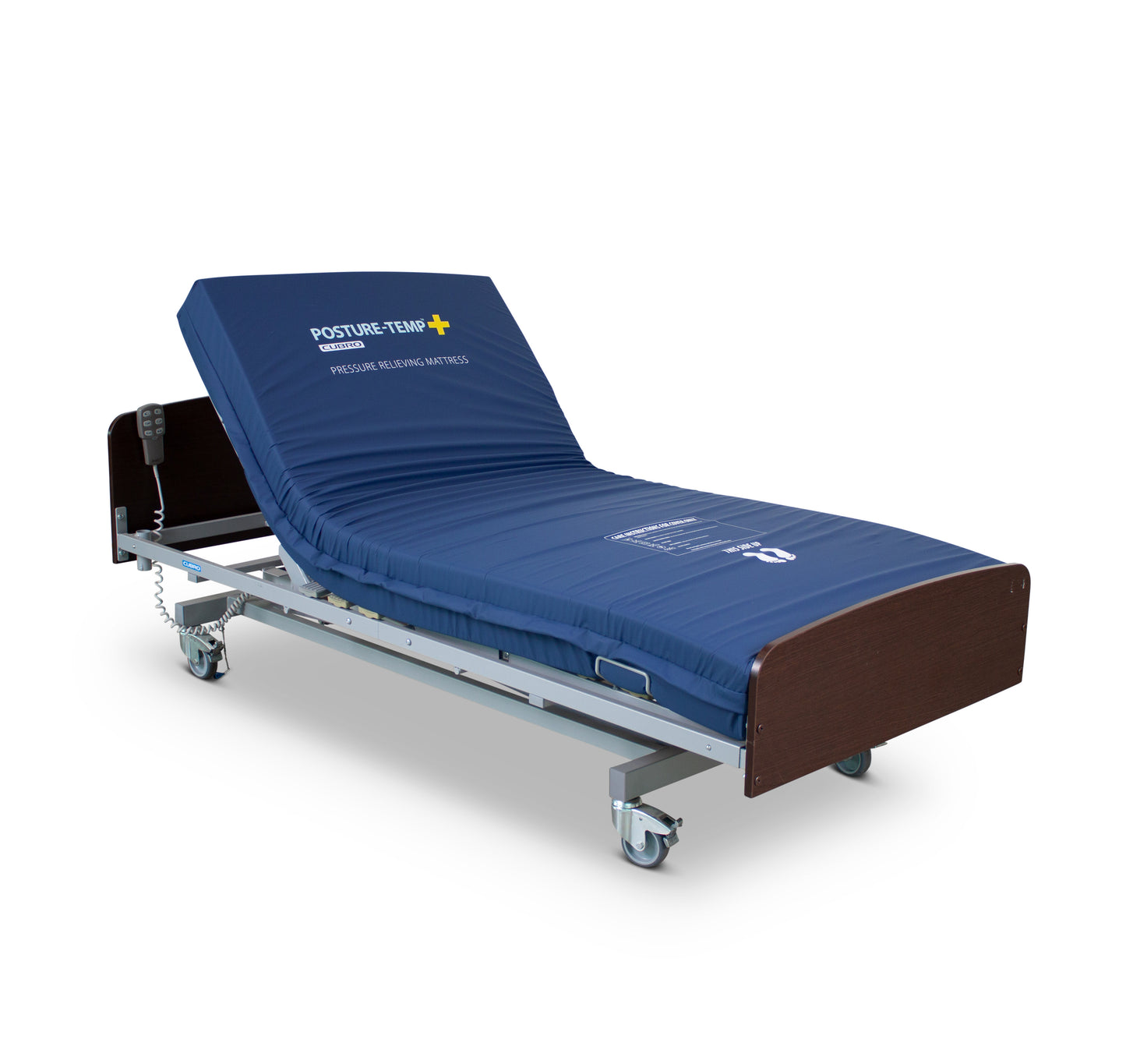

The Super Single increases the overall width to approximately 1220 mm and uses a 1100 x 2000 mm mattress. The extra width gives the user noticeably more room to turn and reposition while retaining the same electric profiling functions and 200 kg safe working load.

The mattress supplied also changes with size: Single variants include the Greenline Hyper-Foam mattress, while Super Single variants include the Posture-Temp mattress.

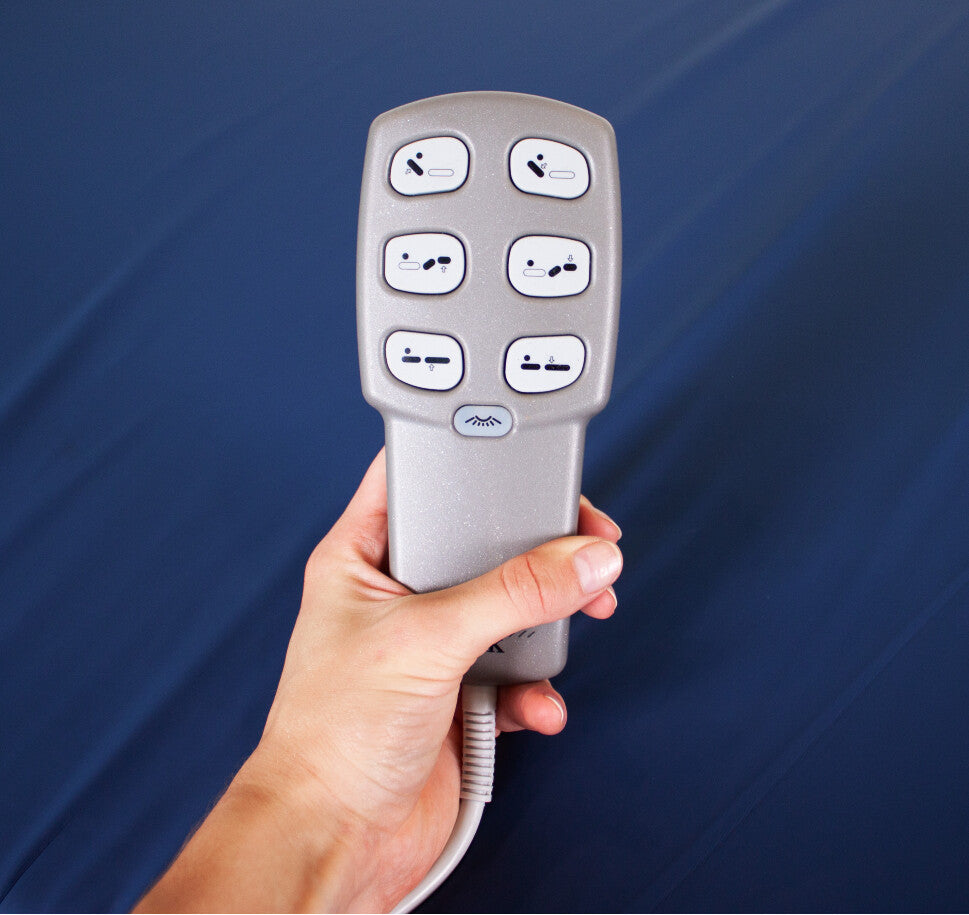

Handset Controls and Function Lock

The Ergo Plus hand controller operates the bed's electric functions and includes a lock/disabler. This allows selected electric functions to be disabled when that is appropriate for the user's care setup.

The handset can be positioned within reach and its coiled cable gives freedom to move it without leaving a long loose lead around the bed.

Emergency Lowering and Everyday Safety

The bock v2 includes a battery-backed emergency lowering function so the bed can be lowered if mains power is unavailable. The electrical system is rated to IPX4 for moisture protection.

Four 100 mm castors allow the bed to be repositioned when required, with individual brakes used to secure the bed once it is in place. Approximately 150 mm of clearance beneath the frame also provides useful under-bed access.

Key Features

• 200 kg safe working load.
• 165 kg maximum user weight.
• Single and Super Single configurations.
• Four-section electric profiling.
• Mattress platform height approximately 370–830 mm.
• Backrest adjustment to approximately 70°.
• Knee adjustment to approximately 35°.
• Sprung slat base for ventilation and mattress support.
• Ergo Plus handset with function lock/disabler.
• Emergency battery lowering.
• IPX4 moisture protection.
• Individual 100 mm castor brakes.
• Approx. 150 mm under-bed clearance.
• Electronics warranty 2 years; frame warranty 5 years.

Bock v2 Electric Bed User Guide

Who Is the bock v2 Best Suited To?

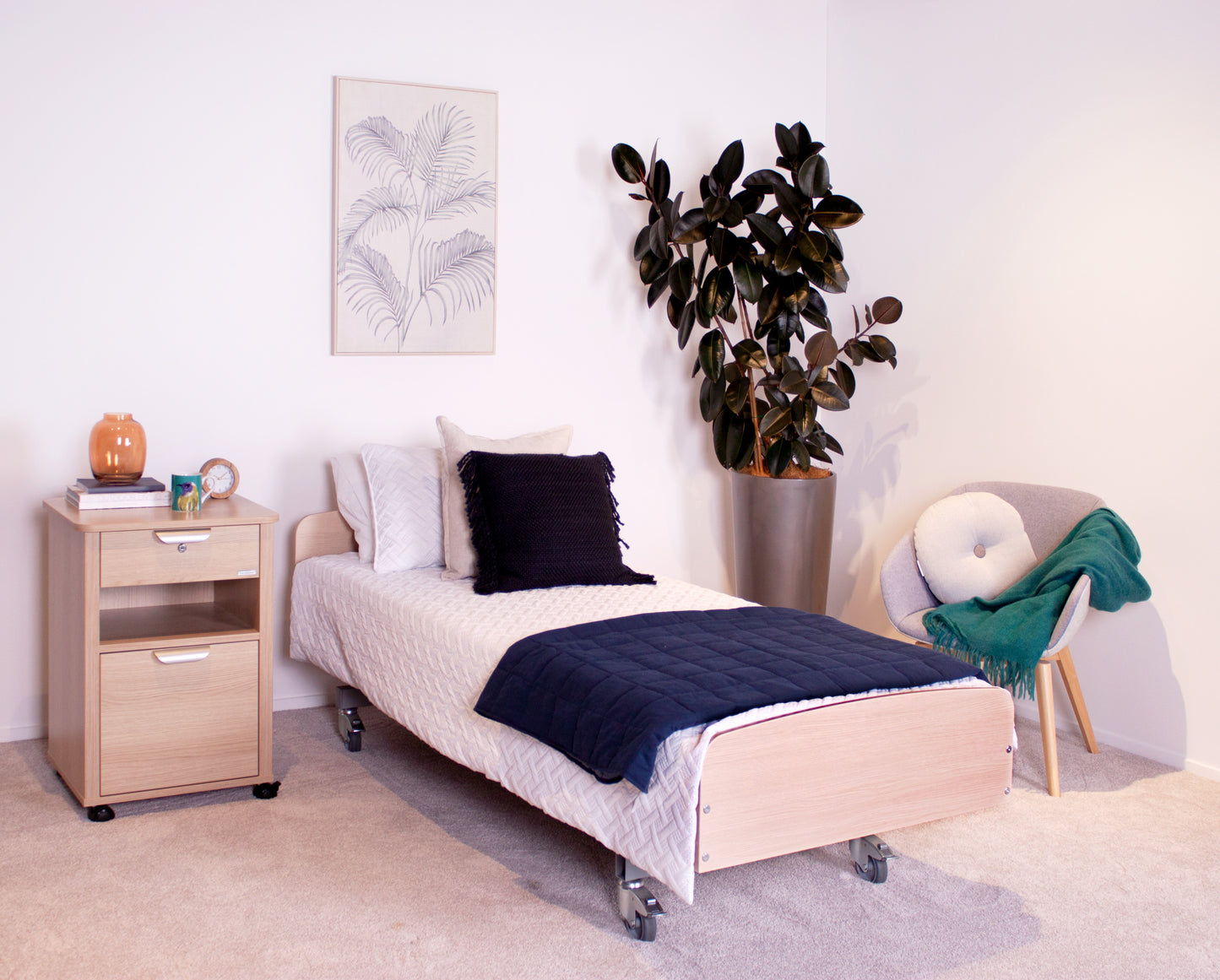

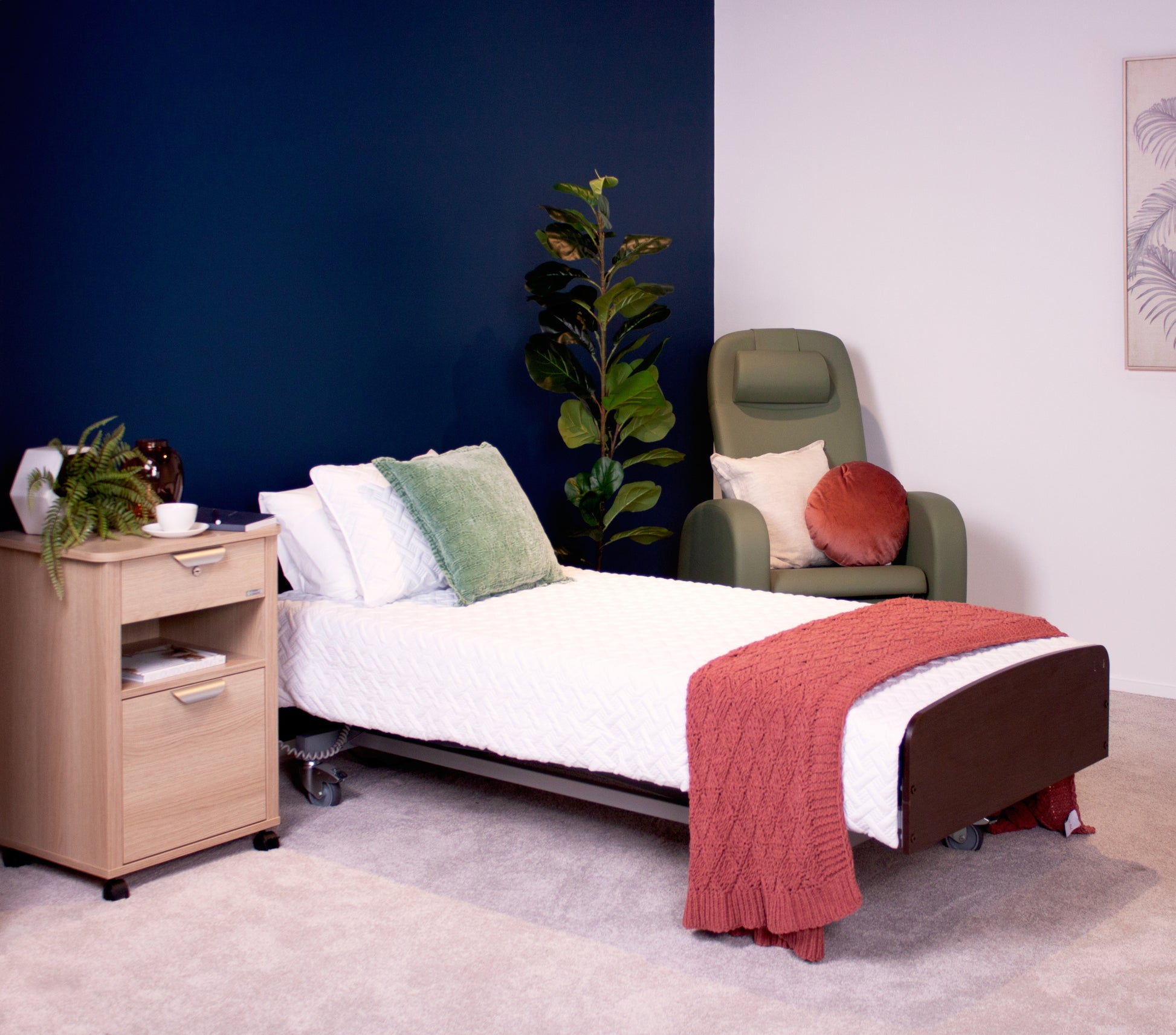

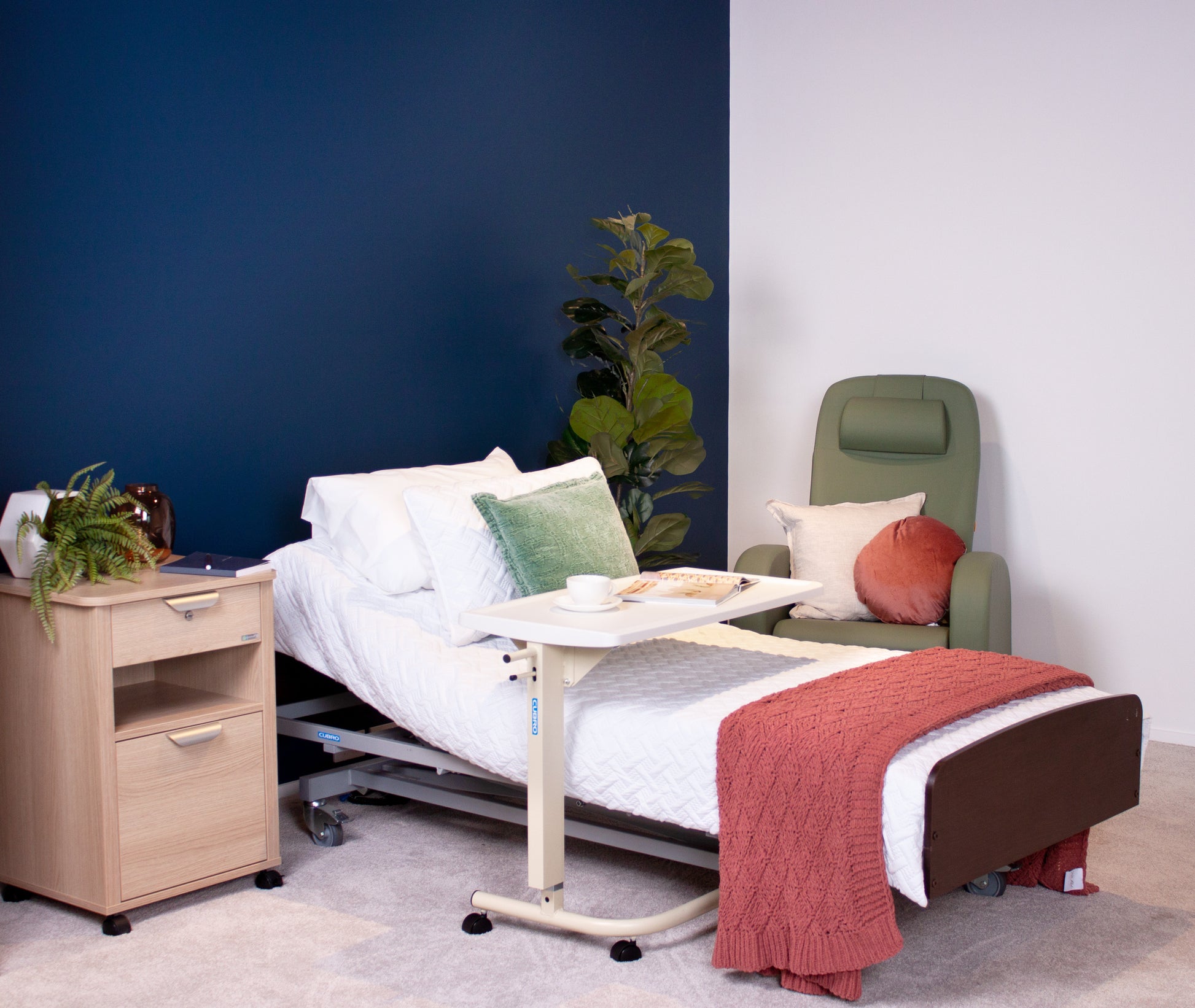

The bock v2 is a strong option when a normal bed no longer provides enough adjustment but the bedroom still needs to feel like a home rather than an institutional setting. It offers substantial height and profiling control while retaining timber-style endboards and a conventional bedroom footprint.

Choosing between Single and Super Single is mainly about available room, user size and how much space the person needs for comfortable repositioning. If access for carers, hoists or other equipment is part of the setup, consider the whole room layout rather than the mattress width alone.

Frequently Asked Questions

Which mattress comes with the Single bed?

The Single bock v2 is supplied with the Greenline Hyper-Foam mattress.

Which mattress comes with the Super Single bed?

The Super Single is supplied with the Posture-Temp mattress.

What is the safe working load?

200 kg for both sizes.

What is the maximum user weight?

165 kg.

What is the height-adjustment range?

The mattress platform adjusts from approximately 370–830 mm.

How far does the backrest raise?

Approximately 70°.

How far does the knee section adjust?

Approximately 35°.

What are the mattress sizes?

Single: approximately 880 x 1960 x 150 mm. Super Single: approximately 1100 x 2000 x 150 mm.

What is the difference in overall bed width?

The Single is approximately 915 mm wide and the Super Single approximately 1220 mm wide; both are about 2160 mm long.

What does the handset lock do?

The integrated disabler allows electric functions to be locked when required as part of the care setup.

Is there emergency lowering?

Yes. A battery provides emergency lowering capability.

How are the castors braked?

The bock v2 uses individual castor brakes rather than a central braking pedal.

What warranty applies?

The warranty is 2 years on electronics and 5 years on the frame.

Is there a user guide?

Yes. The existing bock v2 user guide is linked above.

Can MoveSmart supply the bed in New Zealand?

Yes. Contact MoveSmart for current configuration availability and delivery arrangements.
