Casero Duo Plus Double and Queen Electric Care Bed
The Casero Duo Plus is a wide electric care bed for people who need significantly more sleeping space than a Single or Super Single care bed can provide. Available from MoveSmart in Double and Queen sizes, it combines a generous platform with powered height adjustment, backrest and knee positioning, Trendelenburg/reverse Trendelenburg and a substantial 450 kg safe working load.
Its width makes the Duo Plus particularly relevant for larger users, people who want more room to turn and reposition, or couples who need a wider care-bed platform while retaining the adjustment and access features of a clinical-style bed.
Wide Care-Bed Platform for More Sleeping Space
The Double has a sleeping surface approximately 135 cm wide, while the Queen increases this to approximately 150 cm. Both extend in length from around 200 to 220 cm.
That extra width changes more than comfort. A larger bed also affects room layout, access for carers and the space available for hoists, transfer equipment or bedside furniture. Before ordering, it is worth measuring the whole working area around the bed rather than checking mattress dimensions alone.

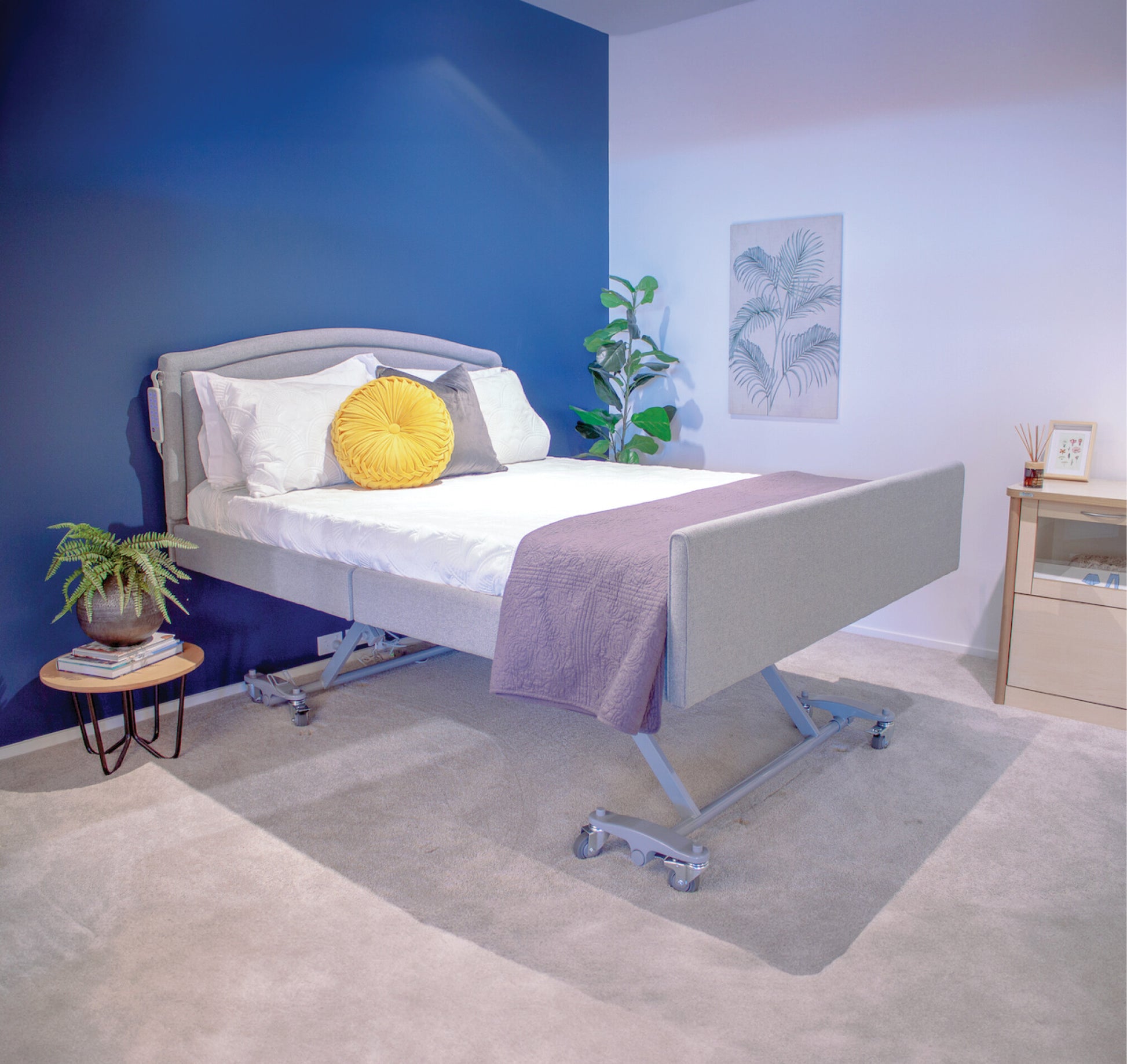

Electric Height Adjustment for Transfers and Bedside Care
The current Cubro specification table gives a mattress-platform height range of approximately 26–66 cm. That allows the bed to be lowered for suitable transfers and raised to a more practical height for dressing, personal care, repositioning and bedding changes.
A note on the low-height figure: Cubro's current feature list also refers to an ultra-low height of 18.4 cm, while the same page's specification table gives 26–66 cm for both Double and Queen. Until that discrepancy is clarified, MoveSmart uses the 26–66 cm table value rather than presenting 18.4 cm as confirmed for these variants.

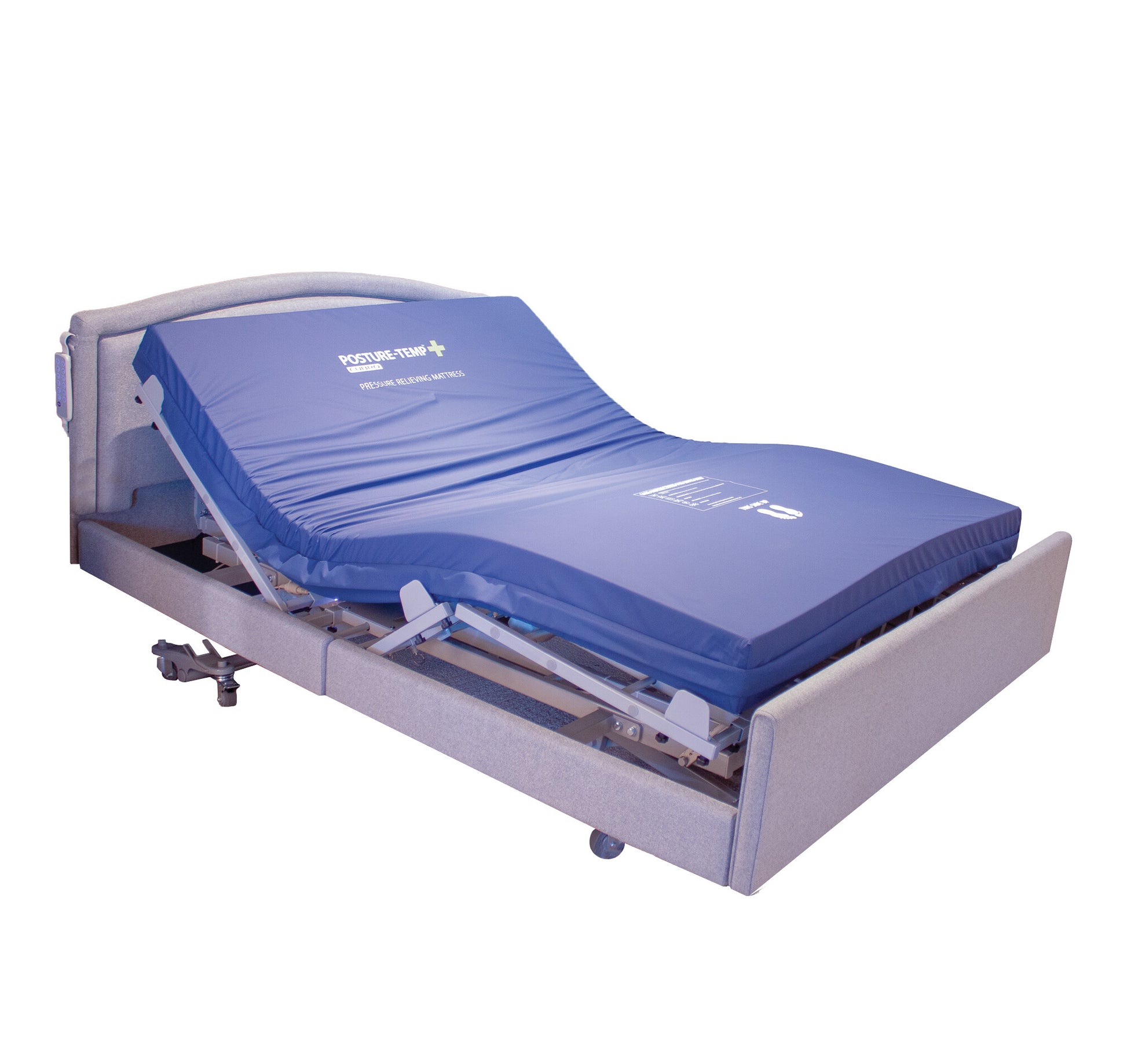

Backrest and Knee-Break Positioning
The backrest raises to approximately 65° and the knee section to around 32°. These sections can be used to move from a flat sleeping position into a more upright posture for reading, meals or conversation, or to change leg position without simply tilting the whole bed.
Because the Duo Plus is a genuine profiling care bed, these adjustments are intended to work together with a suitable profiling mattress rather than a conventional rigid mattress.
Trendelenburg and Reverse Trendelenburg
The complete mattress platform can tilt through approximately ±12°. This gives the Duo Plus both Trendelenburg and reverse Trendelenburg positions in addition to the individual back and knee adjustments.
If a particular tilt position has been recommended for a medical or care reason, follow the advice of the relevant health professional. The value of the feature for most buyers is the additional positioning flexibility it adds to the bed.
Extendable for Taller Users
The sleeping platform extends from approximately 200 cm to 220 cm in 10 cm or 20 cm increments. The integrated extension includes a foot-end mattress retainer so the frame can be lengthened without replacing the complete bed.
A suitable mattress or extension arrangement still needs to match the chosen platform length, so confirm the mattress setup when ordering.
Central Braking and Under-Bed Access
A central braking system is operated from the foot end, making it easier to secure the bed's castors together after it has been repositioned. Full under-bed clearance also helps when compatible mobile lifting equipment or close bedside access is required.

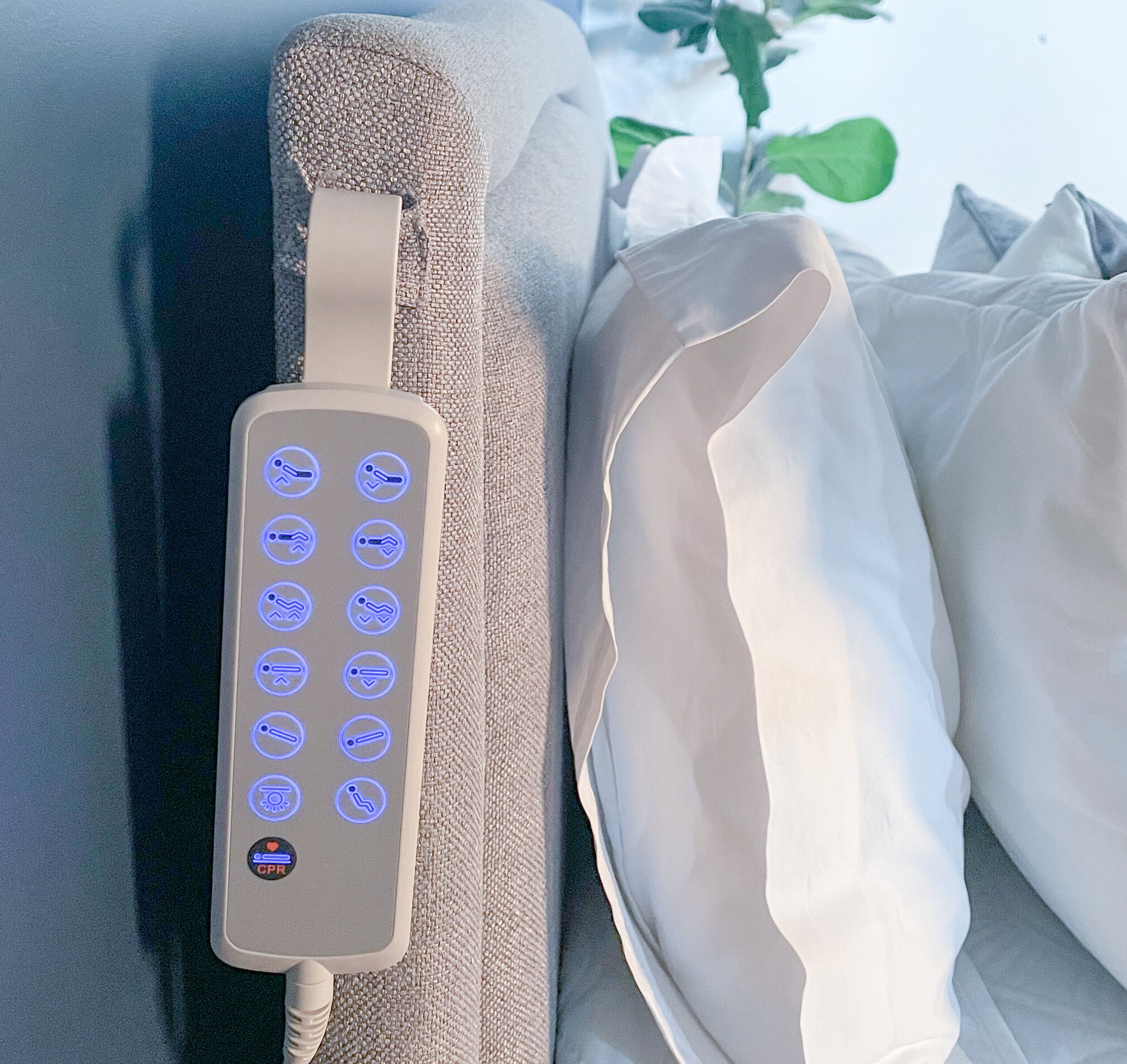

The bed includes a CPR backrest function that allows the back section to be lowered quickly toward flat when emergency access is required. Follow the user guide for correct operation.
High-Capacity Care Bed
The Duo Plus has a 450 kg safe working load and a maximum user weight of 410 kg. Safe working load includes the load carried by the bed as a system, so it should not be treated as simply another wording for user weight.
For a higher-capacity bed, mattress selection, transfers and room layout are especially important. MoveSmart can help confirm the bed size and compatible mattress before purchase.
Key Features
- Double and Queen size options.
- 450 kg safe working load.
- 410 kg maximum user weight.
- Mattress platform approximately 26–66 cm based on Cubro's current specification table.
- Backrest adjustment to approximately 65°.
- Knee-break adjustment to approximately 32°.
- ±12° Trendelenburg and reverse Trendelenburg.
- Sleeping length extends approximately 200–220 cm.
- Central braking at the foot end.
- CPR backrest function.
- Full under-bed clearance.
- Designed for larger users, couples or anyone requiring a wider care-bed platform.
Casero Duo Plus Double and Queen Bed User Guide
Choosing Double or Queen
The Double provides a 135 cm sleeping width in a bed approximately 149 cm wide overall. The Queen increases the sleeping surface to 150 cm and overall width to approximately 163 cm. Both provide the same core powered functions and load ratings.
Choose according to the user's space requirements and the bedroom itself. The wider Queen can provide welcome extra room, but only if there is still adequate access around the bed for transfers, care and equipment.
Frequently Asked Questions
What sizes are available?
MoveSmart offers Double and Queen variants.
What is the safe working load?
The safe working load is 450 kg for both sizes.
What is the maximum user weight?
The maximum user weight is 410 kg.
What is the platform-height range?
MoveSmart uses approximately 26–66 cm, which is the range in Cubro's current specification table for these Double and Queen variants.
Why does some Casero Duo Plus information mention 18.4 cm?
Cubro's current page contains two different figures: its feature list refers to 18.4 cm, while its Double and Queen specification table gives 26–66 cm. MoveSmart uses the table value until that discrepancy is clarified.
What is the Double sleeping width?
Approximately 135 cm.
What is the Queen sleeping width?
Approximately 150 cm.
Can the bed length be extended?
Yes. The sleeping platform extends from approximately 200–220 cm.
Does it have Trendelenburg positioning?
Yes. Powered Trendelenburg and reverse Trendelenburg are available through approximately ±12°.
What are the backrest and knee angles?
The backrest adjusts to approximately 65° and the knee section to approximately 32°.
Does it have central braking?
Yes. The central braking system is operated from the foot-end area.
Can a mattress be purchased separately?
Yes. Mattress suitability depends on the selected bed width and profiling requirements, so confirm the exact required mattress before ordering.
Is there a user guide?
Yes. The existing Casero Duo Plus user guide is linked above.
Can MoveSmart arrange supply in New Zealand?
Yes. The Duo Plus is an order-in care bed and MoveSmart can discuss current supply and delivery arrangements.
| Feature | Double | Queen |
|---|---|---|
| Safe working load | 450 kg | 450 kg |
| Maximum user weight | 410 kg | 410 kg |
| Overall width | 149 cm | 163 cm |
| Sleeping width | 135 cm | 150 cm |
| Sleeping length | 200–220 cm | 200–220 cm |
| Mattress platform height | 26–66 cm | 26–66 cm |
| Back / knee angle | 65° / 32° | 65° / 32° |
| Product weight | 120 kg | 130 kg |
| Trendelenburg | ±12° | |
