Description

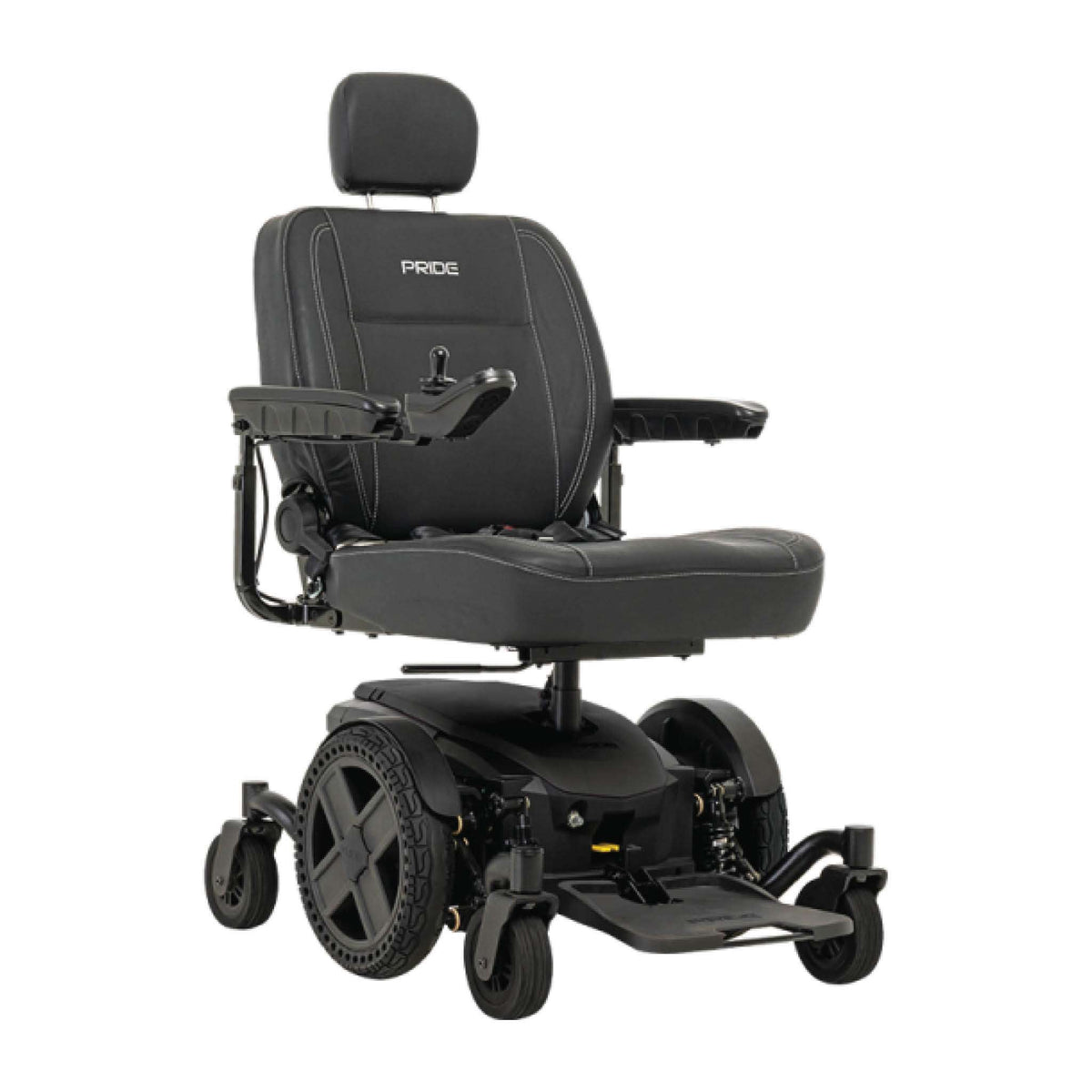

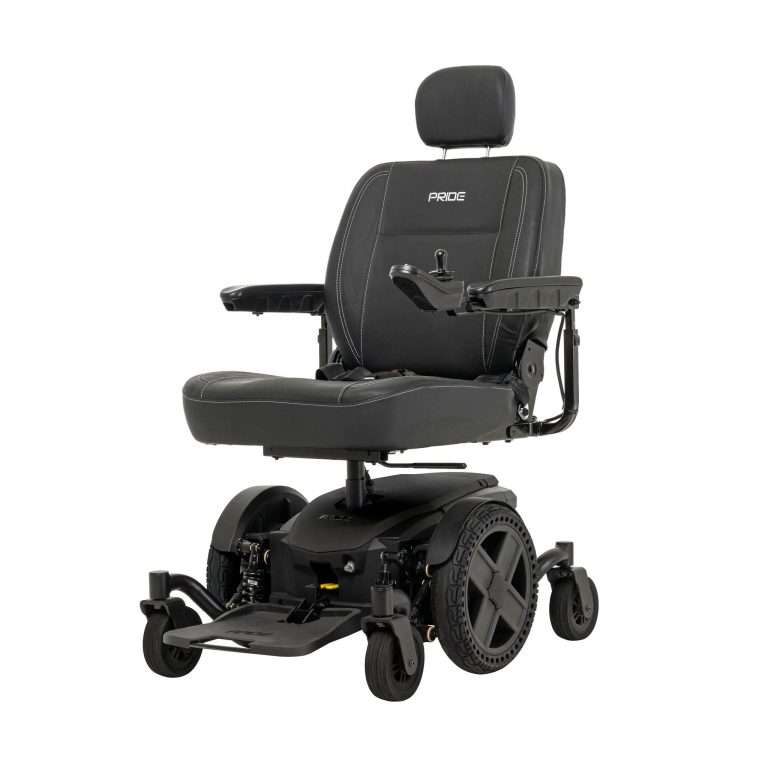

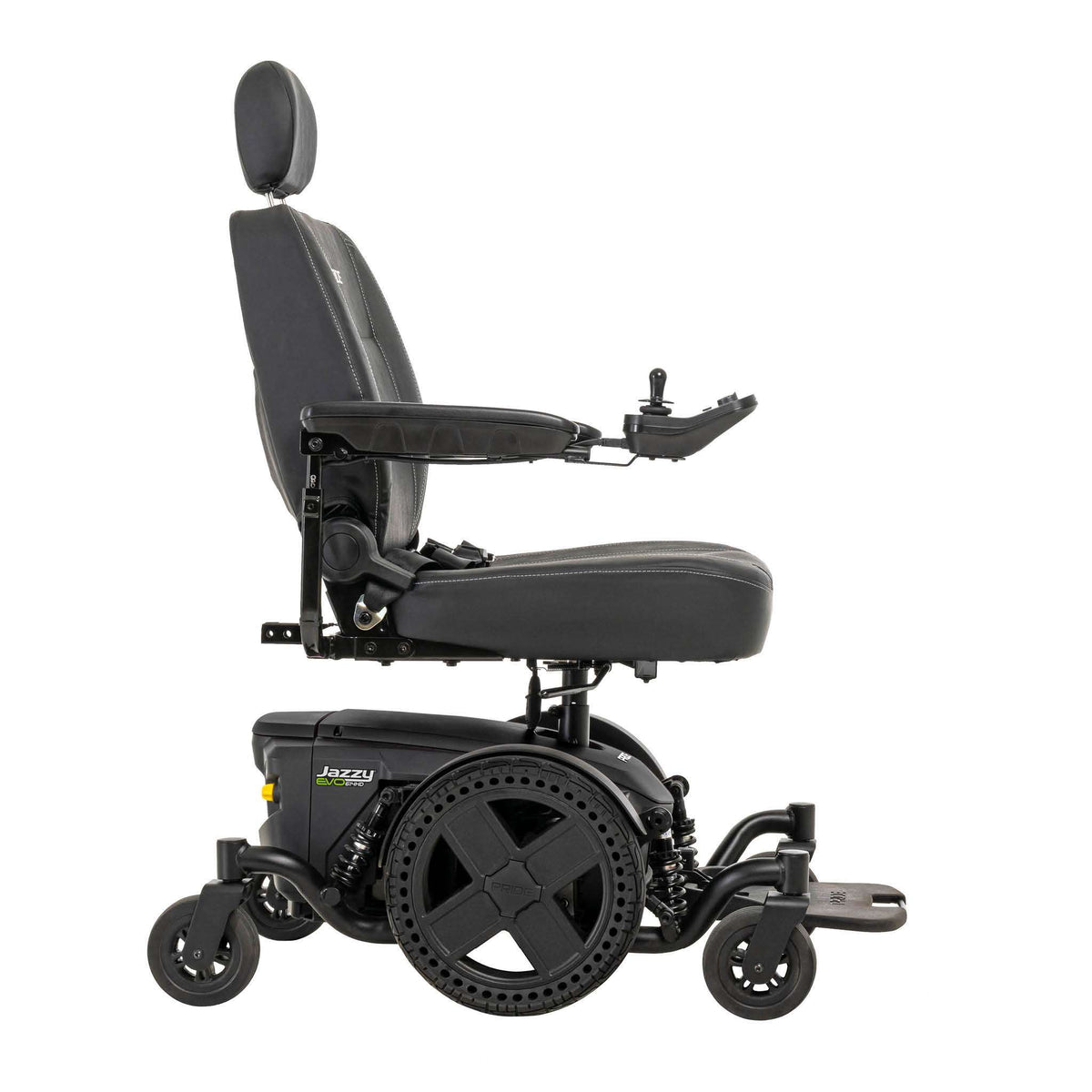

Pride Jazzy EVO 614 HD Powerchair for Heavy-Duty Everyday Mobility
The Pride Jazzy EVO 614 HD is a heavy-duty mid-wheel drive power wheelchair designed for people who need a higher user weight capacity without giving up practical manoeuvrability around the home and community. With a maximum user weight of 204 kg, a 55.9 cm turning radius and a compact 64.5 cm power-base width, it combines substantial capacity with responsive everyday control.
Its two-motor in-line HD drive system is paired with front and rear independent Active-Trac® ATX Suspension and 13.75-inch solid drive wheels. This helps the chair manage everyday transitions and varied surfaces while remaining easy to position in tighter indoor areas. Maximum speed is up to 7.8 km/h, with a published maximum range of up to 21 km per charge under suitable conditions.
Comfort is supported by a depth-adjustable, limited-recline memory foam high-back swivel seat, adjustable flip-up armrests and a large footplate with a removable rubber cover. The standard Dynamic LiNX 60A electronics provide joystick control, while the heavy-duty seat post and high-capacity platform make the EVO 614 HD a strong option for regular powered mobility.

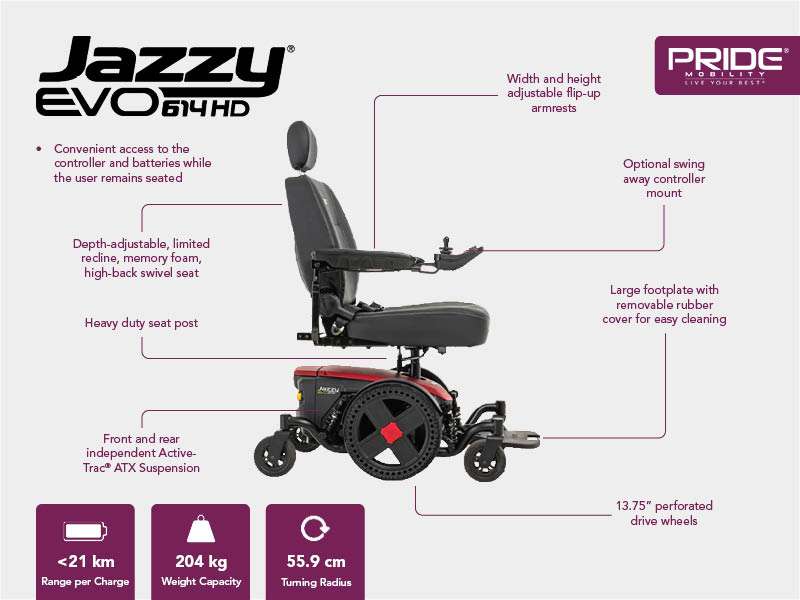

Key Features of the Jazzy EVO 614 HD
- 204 kg weight capacity: Heavy-duty construction supports a higher maximum user weight for people who need a more substantial powerchair platform.
- Mid-wheel drive manoeuvrability: A 55.9 cm turning radius helps with positioning and turning in homes, shops and other tighter spaces.

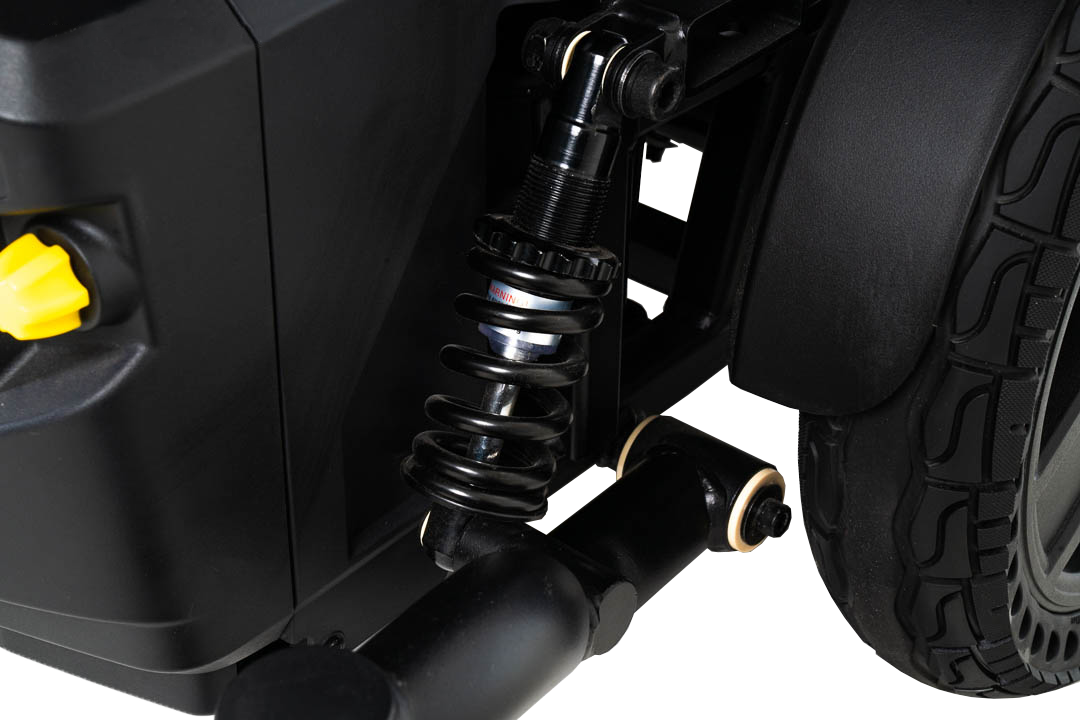

- Active-Trac® ATX Suspension: Independent front and rear suspension helps smooth everyday transitions and uneven surfaces.
- Up to 21 km range: Suitable for regular daily mobility, with real-world range varying with user weight, terrain, battery condition and other operating factors.
- Up to 7.8 km/h maximum speed: Provides practical powered travel for indoor and community use.
- 13.75-inch solid drive wheels: Large mid-mounted drive wheels are paired with 6-inch front and rear castors for stable, low-maintenance rolling performance.
- Memory foam high-back swivel seat: The seat is depth adjustable with limited recline and can swivel to support easier access and positioning.
- Adjustable flip-up armrests: Width and height adjustment helps tailor the seating area, while flip-up operation can assist with side access.

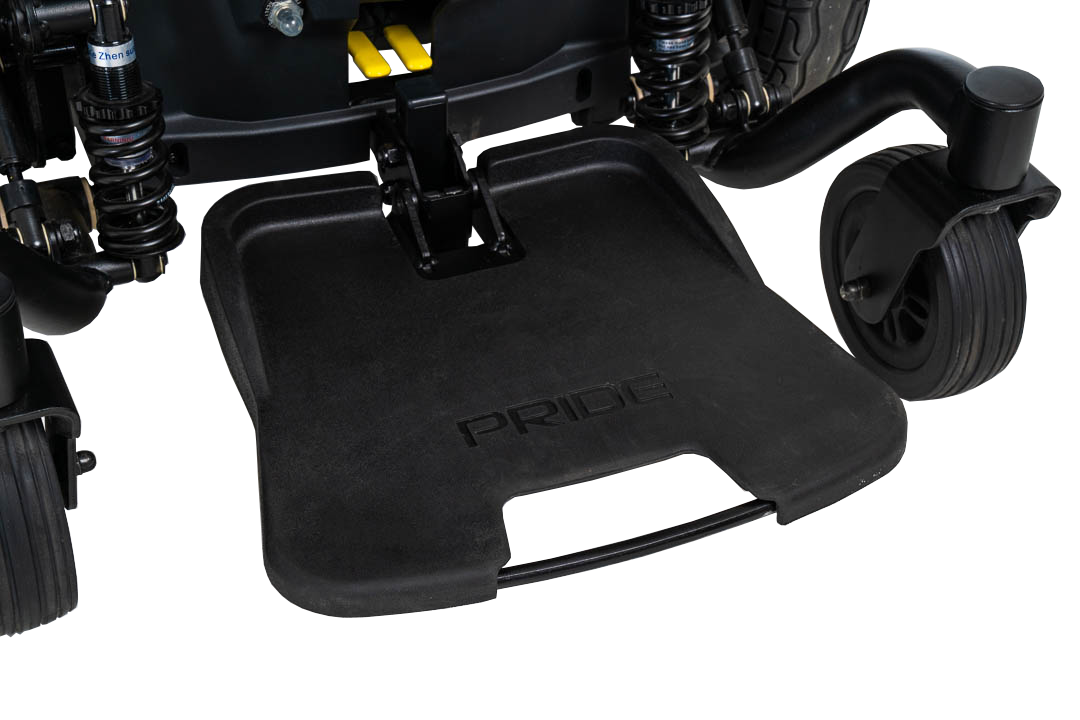

- Large easy-clean footplate: The footplate has a removable rubber cover for straightforward cleaning and everyday maintenance.
- Dynamic LiNX controls: Standard 60A Dynamic LiNX electronics provide intuitive joystick control, with an optional swing-away controller mount available.
Seating, Batteries and Everyday Use
Two standard seat widths are available: 50.8 cm (20 inches) and 55.8 cm (22 inches), with an adjustable 20–22 inch seat-depth range. The high-back seat-to-floor range is 55.8–60.9 cm, and the standard 20 x 20 inch high-back seat is listed at 23.5 kg.
The Jazzy EVO 614 HD uses two 55Ah, 12V deep-cycle batteries, with AGM or gel-cell types recommended by Pride, and an off-board 5A charger. Each battery weighs approximately 16.8 kg. The chair uses regenerative and electro-mechanical braking.
This is a full-size heavy-duty powerchair rather than a lightweight folding travel chair. The heaviest piece weighs approximately 65 kg, so vehicle loading, ramps, hoists and storage space should be planned before transport. MoveSmart can help discuss practical delivery and setup considerations for New Zealand customers.
Pride Mobility Jazzy EVO 614 HD Powerchair Manual PDF
Why Choose the Pride Jazzy EVO 614 HD for Heavy-Duty Powered Mobility?
The Jazzy EVO 614 HD brings together a 204 kg user weight capacity, compact mid-wheel steering, full Active-Trac® ATX Suspension, supportive high-back seating and up to 21 km published range. For customers looking for a robust electric wheelchair with indoor manoeuvrability and capable everyday outdoor performance, it offers a well-rounded combination of strength, comfort and control from an established mobility brand.
Frequently asked questions
Frequently Asked Questions
What is the maximum user weight for the Jazzy EVO 614 HD?
The maximum user weight is 204 kg.
How far can the Jazzy EVO 614 HD travel on a charge?
The maximum stated range is up to 21 km per charge. Actual range varies with user weight, terrain, battery condition, charge level, tyre condition and operating conditions.
What is the maximum speed?
The published maximum speed is up to 7.8 km/h.
Is the Jazzy EVO 614 HD suitable for indoor use?
Yes. Its mid-wheel drive layout and 55.9 cm turning radius are designed to provide useful manoeuvrability in indoor spaces. Always check doorways, turning areas and the complete configured chair width for your environment.
Can it be used outdoors?
It is designed for both indoor and everyday outdoor mobility. Active-Trac® ATX Suspension and the 13.75-inch drive wheels help with transitions and varied surfaces, but loose sand, deep gravel, steep slopes and slippery conditions still require caution.
What seat sizes are available?
Available seat widths are 50.8 cm (20-inch) and 55.8 cm (22-inch), with a 20–22 inch adjustable depth range. Final seating configuration should be selected to suit the user.
Does the seat swivel?
Yes. The memory foam high-back seat is mounted on a heavy-duty seat post and is designed to swivel. It also offers depth adjustment and limited recline.
Are the armrests adjustable?
Yes. The standard armrests are width and height adjustable and can flip up for easier access.
What batteries does the Jazzy EVO 614 HD use?
It is specified for two 55Ah, 12V deep-cycle batteries. Pride recommends AGM or gel-cell battery types for this model.
What charger does it use?
It uses an off-board 5A charger.
What is the maximum recommended incline?
The maximum recommended incline angle is 10.5% (6 degrees). Safe performance also depends on surface conditions, load and correct operation.
Does the Jazzy EVO 614 HD fold for transport?
No. It is a substantial heavy-duty powerchair, and the heaviest piece weighs approximately 65 kg, so transport usually requires suitable vehicle space and appropriate loading equipment.
How should the chair be cleaned and maintained?
Follow the Pride owner’s manual for routine inspection, battery charging and maintenance. The footplate’s removable rubber cover is designed to make cleaning easier. Electrical components should not be exposed to excessive moisture.
Is this power wheelchair available for delivery across New Zealand?
We can and do deliver to customers across New Zealand — however, mobility scooters and power chairs are more complex products and can be sizeable, so we generally recommend finding a local retailer who can provide hands-on service and ongoing support. It is also a good idea to test-drive or trial a power chair before committing to a purchase. MoveSmart focuses its sales and servicing within the Central Plateau region, but we are always happy to chat. Get in touch and we can offer advice, suggest a trusted dealer closer to you, or work with you to tailor a solution.
What warranty applies in New Zealand?
Please contact MoveSmart for the warranty terms that apply to the chair, electronics, drive components and batteries.
Specifications
| Model | JEVO614HD |
| Product Type | Heavy-duty mid-wheel drive power wheelchair |
| Maximum User Weight | 204 kg |
| Maximum Range | Up to 21 km per charge |
| Maximum Speed | Up to 7.8 km/h |
| Turning Radius | 55.9 cm |
| Overall Length | 101.6 cm |
| Power Base Width | 64.5 cm |
| Weight of Heaviest Piece | 65 kg |
| Ground Clearance | 7.6 cm at mid-frame |
| Seat Width | 50.8 cm (20") or 55.8 cm (22") |
| Seat Depth | 20–22 inches, adjustable |
| Standard Seat Weight | 23.5 kg (20" x 20" high-back seat) |
| High-Back Seat-to-Floor Range | 55.8–60.9 cm |
| Standard Electronics | 60A Dynamic LiNX |
| Drive Train | Two motor, in-line HD, mid-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension | Front and rear independent Active-Trac® ATX Suspension |
| Drive Wheels | 13.75-inch solid |
| Front Castors | 6-inch |
| Rear Castors | 6-inch |
| Battery Requirements | 2 x 55Ah, 12V deep-cycle batteries; AGM or gel-cell recommended |
| Battery Charger | Off-board, 5A |
| Battery Weight | 16.8 kg each |

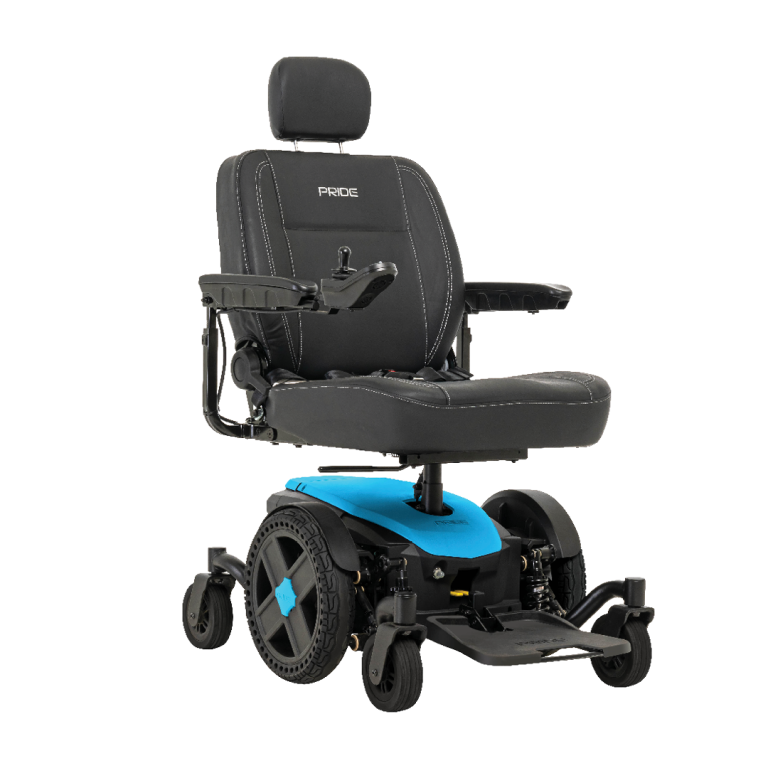

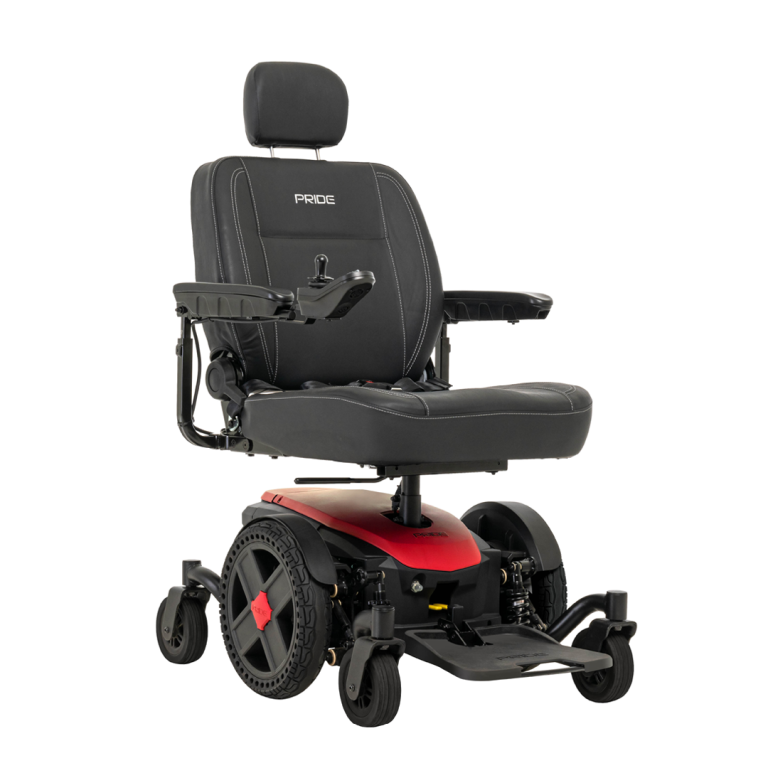

| Colour Options | Black, Cardinal Red, Robin's Egg Blue |
| Maximum Recommended Incline | 10.5% (6°) |
