Pride Mobility Rubber Threshold Ramp

Pride Mobility Rubber Threshold Ramp

The Pride Mobility Rubber Threshold Ramp is a modular recycled-rubber access ramp for small thresholds, low steps and changes in floor level. Choose a complete ramp kit for a new installation, or an individual section to extend or repair an existing compatible Pride ramp.

Buying a new ramp? Choose “Complete ramp kit — all sections included”, then select the finished rise you need. A complete kit includes one of every required section from 2.54 cm (1") up to your selected height. You do not need to add the lower sections separately.

Individual sections are not complete higher-rise ramps. For example, the 5.08 cm (2") section on its own does not make a complete 5.08 cm (2") ramp: the 2.54 cm (1") and 3.81 cm (1.5") sections are also required.

How to Choose and Order

1. Choose kit or individual section. Select Complete ramp kit — all sections included when starting from scratch. Select Individual section only — add-on/replacement only when you need a specific piece for an existing compatible system.

2. Select the rise or section height. For a complete kit, this is the finished vertical rise of the assembled ramp. For an individual section, it identifies the section supplied; it does not mean you receive all the pieces needed for a ramp of that height.

3. Check the selection and add to cart. Quantity 1 of a complete kit means one full set of the required sections for that rise. Quantity 1 of an individual section means one selected section only.

Example: a Complete 5.08 cm (2") Ramp

A 5.08 cm (2-inch) complete kit includes the 2.54 cm (1"), 3.81 cm (1.5") and 5.08 cm (2") sections. The complete kit price is $480, made up of $150 + $160 + $170. Choose the complete kit and add quantity 1 to your cart.

The $431.8 cm (170")dividual 5.08 cm (2") section is an add-on or replacement only. It is appropriate when you already have the required 2.54 cm (1") and 3.81 cm (1.5") sections.

The height labels are not added together. The sections interlock in their intended sequence to form a continuous ramp with the selected finished rise. They are not separate ramps to stack arbitrarily on top of one another.

Adding to an Existing Ramp

Already have a complete 3.81 cm (1.5") Pride ramp? Add the individual 5.08 cm (2") section to extend it to a 5.08 cm (2") finished rise. Starting with only the 2.54 cm (1") base? You need both the 3.81 cm (1.5") and 5.08 cm (2") sections to reach a complete 5.08 cm (2") configuration. Do not skip intermediate sections.

The 2.54 cm (1") base section is the exception: it forms the lowest complete ramp by itself. The 2.54 cm (1") complete kit and individual 2.54 cm (1") section therefore contain the same single base section.

Key Features

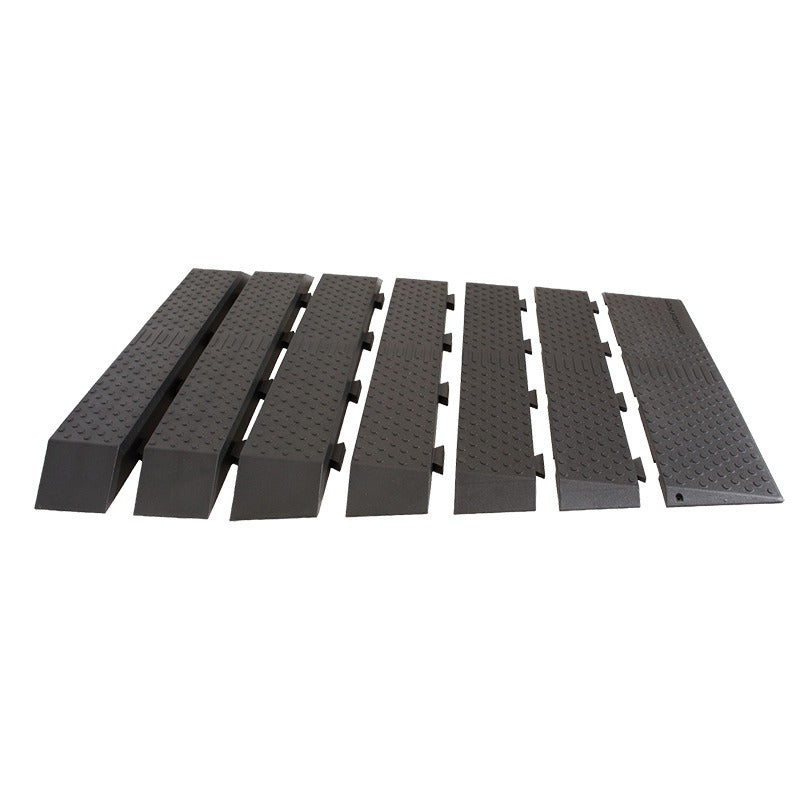

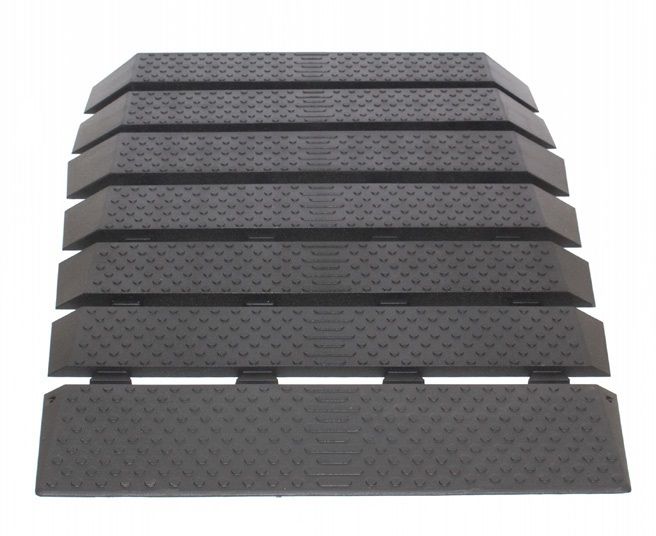

• Modular interlocking design: hidden dovetail connections join the required sections into the intended ramp configuration.
• Seven nominal finished rises: 2.54 cm (1 inch) to 10.16 cm (4 inches), in 1.27 cm (0.5") increments.
• 91.4 cm usable width for compatible wheeled mobility equipment.
• 385.5 kg (850 lb) maximum load, including the user, mobility device and anything carried.

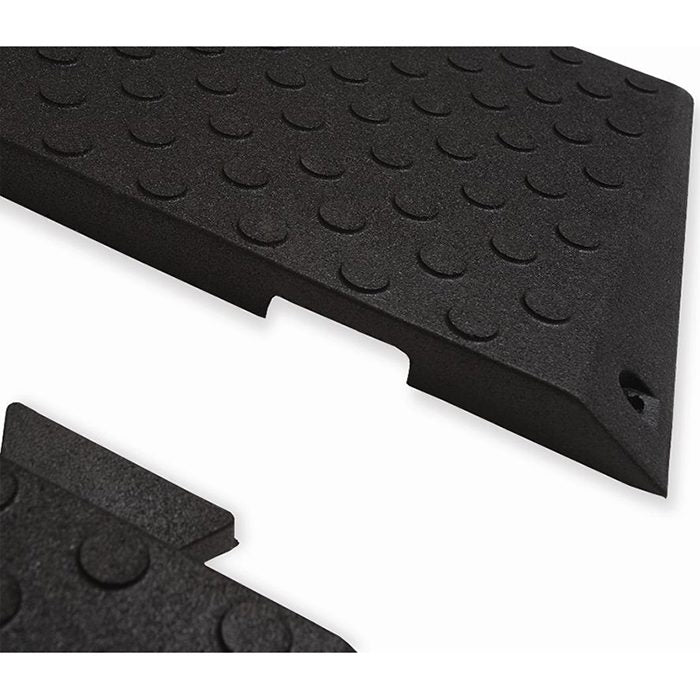

• High-impact recycled rubber with a textured, slip-resistant surface.
• Suitable for appropriate indoor and outdoor installations.
• Can be trimmed or notched where an appropriate custom fit is required.
• Maintenance-free rubber construction; keep the ramp clean and inspect its positioning and condition.

Pride Mobility Rubber Threshold Ramps Specification Sheet

Measure the Threshold Before Ordering

Measure the vertical rise from the lower surface to the upper landing, together with the available approach space, doorway clearance and the width needed by your mobility device. Check that the assembled ramp's incline and clearances are suitable for the wheelchair, powerchair or mobility scooter being used.

The supporting surfaces must be firm, stable and suitable for the complete ramp configuration. Use every required section, follow Pride's setup instructions and check the combined load against the ramp rating. The system's recommended maximum incline is approximately 4° (7%); your mobility device may have its own limits. Do not assume a ramp is suitable simply because the rise matches.

Not sure which configuration you need? Contact MoveSmart with the measured rise and details of any Pride ramp sections you already own.

Frequently Asked Questions

Which option should I choose for a new ramp?

Choose Complete ramp kit — all sections included, then select the required finished rise. This includes one of every required section from the 2.54 cm (1") base through to the selected height.

What is included in a complete 5.08 cm (2") ramp kit?

One 2.54 cm (1") section, one 3.81 cm (1.5") section and one 5.08 cm (2") section. Together they form the intended 5.08 cm (2-inch) finished-rise configuration. Add quantity 1 of the complete kit; the lower sections are already included.

Why does the complete 5.08 cm (2") kit cost more than the individual 5.08 cm (2") section?

The complete kit includes three different sections and costs $480: $150 + $160 + $170. The $431.8 cm (170")dividual option supplies only the 5.08 cm (2") section, without the 2.54 cm (1") base or 3.81 cm (1.5") section.

Do I add the section heights together?

No. The highest section identifies the finished rise of the correctly assembled system. For example, the 2.54 cm (1"), 3.81 cm (1.5") and 5.08 cm (2") sections form a 5.08 cm (2") finished-rise ramp, not a 11.4 cm (4.5") ramp.

Can I use a higher individual section by itself?

No, not as a complete ramp from ground level. Sections above 2.54 cm (1") require all the preceding sections in the intended Pride modular configuration. Do not skip the lower or intermediate sections.

Can I buy a section to extend a ramp I already own?

Yes. Choose Individual section only — add-on/replacement and select the section you need. For example, a complete 3.81 cm (1.5") system needs the 5.08 cm (2") section to extend it to a 5.08 cm (2") rise. Confirm that your existing ramp is the compatible Pride modular system.

What do I need to extend a 2.54 cm (1") ramp to 5.08 cm (2")?

Keep your existing 2.54 cm (1") base and add both the 3.81 cm (1.5") and 5.08 cm (2") individual sections. Buying only the 5.08 cm (2") section would leave a required intermediate section missing.

Is the 2.54 cm (1") complete kit different from the individual 2.54 cm (1") section?

No. Both contain the same single 2.54 cm (1") base section, which forms the lowest complete ramp by itself. The individual option is also useful when replacing a base section in a larger system.

What does the cart quantity mean?

Quantity 1 of a complete kit is one full set for the selected rise. Quantity 1 of an individual section is one selected piece only. Check both the purchase option and the height before adding to cart.

How wide is the usable ramp surface?

Approximately 91.4 cm (36 inches).

What is the maximum load?

385.5 kg (850 lb), including the person, wheelchair or scooter, and any carried items. The rating does not increase when more sections are added.

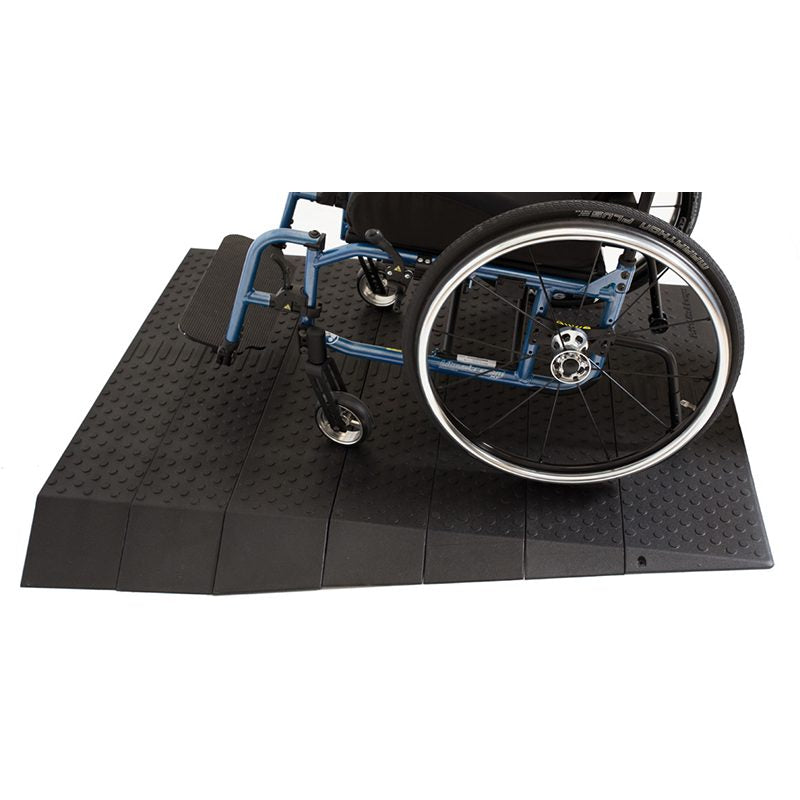

Can it be used with a wheelchair, powerchair or mobility scooter?

Yes, where the complete ramp's rise, incline, width and clearances are suitable for the device and user. Follow the mobility device manufacturer's gradient limits as well as the ramp instructions.

Can the ramp be used outdoors?

Yes, in suitable outdoor installations as well as indoors. Keep the textured surface clean and take extra care when it is wet, contaminated or icy; slip-resistant does not mean slip-proof.

Can the rubber be trimmed to fit?

Yes, it can be trimmed or notched where an appropriate custom fit is required. Check the location, section layout and fitting instructions before altering any components.

Does it need maintenance or securing?

The rubber construction is maintenance-free, but the ramp still needs regular cleaning and checks for damage, movement and obstruction. Follow Pride's positioning and setup instructions so the complete ramp remains stable during use.

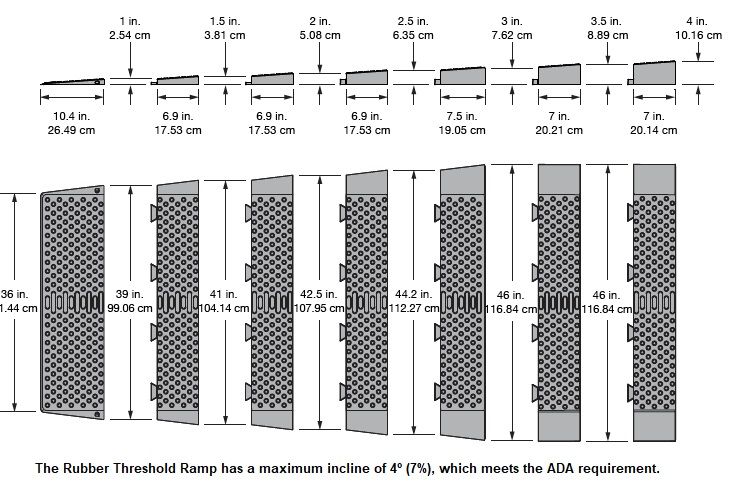

Where can I check the section combinations?

The table below shows every complete kit and the sections supplied. The Pride specification sheet is linked above. Contact MoveSmart before ordering when you are unsure about an existing section or a threshold measurement.
