AMW Maxi HT (Heavy Terrain) Scooter

AMW Maxi HT Heavy Terrain Mobility Scooter

The AMW Maxi HT is a large heavy-terrain mobility scooter built for riders who need more ground clearance, motor power and outdoor capability than a conventional pavement scooter can provide. Its 1200W motor, 35.6 cm (14") tyres, full suspension and 16 cm ground clearance make it particularly well suited to rural properties, longer outdoor journeys and firm uneven surfaces.

Two 75Ah GEL batteries give the Maxi HT substantial energy capacity, with a typical range of around 35–40 km per charge depending on conditions. Maximum speed is up to 18 km/h, while the large adjustable seat and spacious chassis are intended for users who need more room and support than a smaller mobility scooter provides.

Built for More Demanding Outdoor Use

The Maxi HT sits well above the Explorer and Discovery in AMW's range. Its 1200W motor provides considerably more reserve for hills and heavier outdoor work, while the larger 35.6 cm (14") tyres and 16 cm clearance help it negotiate rougher surfaces and changes in level more confidently.

Full suspension helps isolate the rider from bumps and vibration, but this is still a mobility scooter rather than an all-terrain vehicle. Soft ground, steep cross-slopes, loose gravel and abrupt obstacles should always be approached conservatively.

Large GEL Batteries for Longer Trips

The scooter uses two 75Ah 12V GEL batteries. Range is around 35–40 km in suitable conditions, although rider weight, tyre pressure, gradients, temperature, battery age and terrain all affect how far the scooter will travel.

For longer rural or community trips, it is sensible to plan with a reserve rather than treating the maximum figure as a guaranteed distance. Regular charging and good battery care are especially important with a larger scooter that may be used farther from home.

Speed and Control

With a maximum speed of up to 18 km/h, the Maxi HT is faster than many everyday mobility scooters. The P&G controller manages the drive system, while electronic regenerative braking slows the scooter when the throttle is released.

A dash-mounted brake release is included for appropriate freewheel use. Because of the scooter's size and performance, a test drive is particularly worthwhile before purchase so the rider can become familiar with acceleration, braking and turning space.

Adjustable Seating and Rider Fit

The seat adjusts forward and back, swivels for easier access, changes height and allows backrest adjustment. That makes it easier to tailor the riding position for different leg lengths and preferred posture.

The user-capacity guidance is 150–200 kg depending on terrain and use. At the upper end of that range, the intended terrain, gradients and overall operating conditions become especially important, so MoveSmart recommends discussing the setup before purchase.

Key Features

• 1200W motor for heavy-terrain mobility.
• 2 × 75Ah GEL 12V batteries.
• 35.6 cm (14") tyres.
• Full suspension.
• Up to 18 km/h maximum speed.
• Approx. 35–40 km range, depending on conditions.
• 150–200 kg user-capacity range, depending on terrain and use.
• 16 cm ground clearance.
• 15° climbing grade under suitable conditions.
• Electronic regenerative braking.
• 24V DC system.
• Adjustable seat with fore/aft, swivel, height and backrest adjustment.

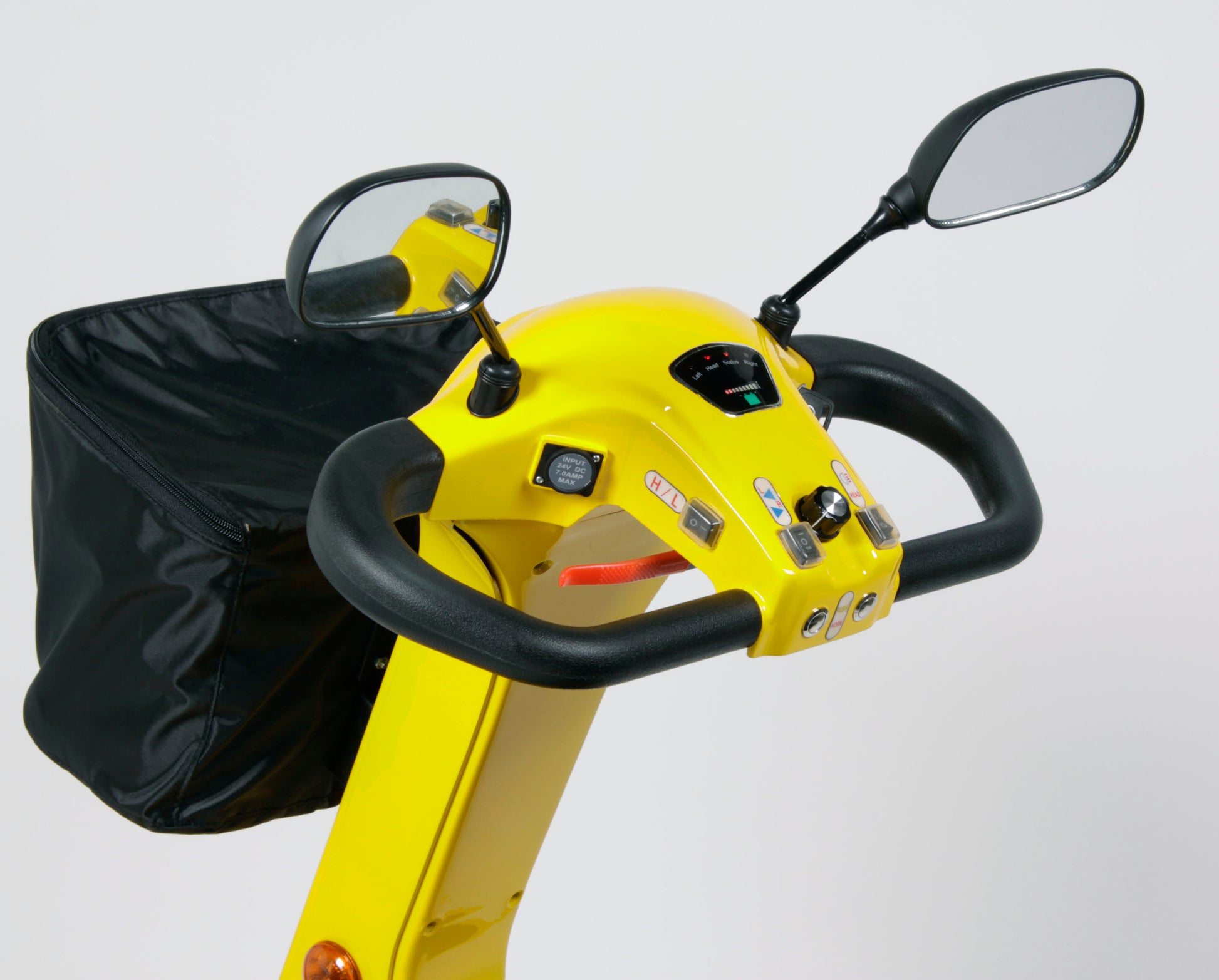

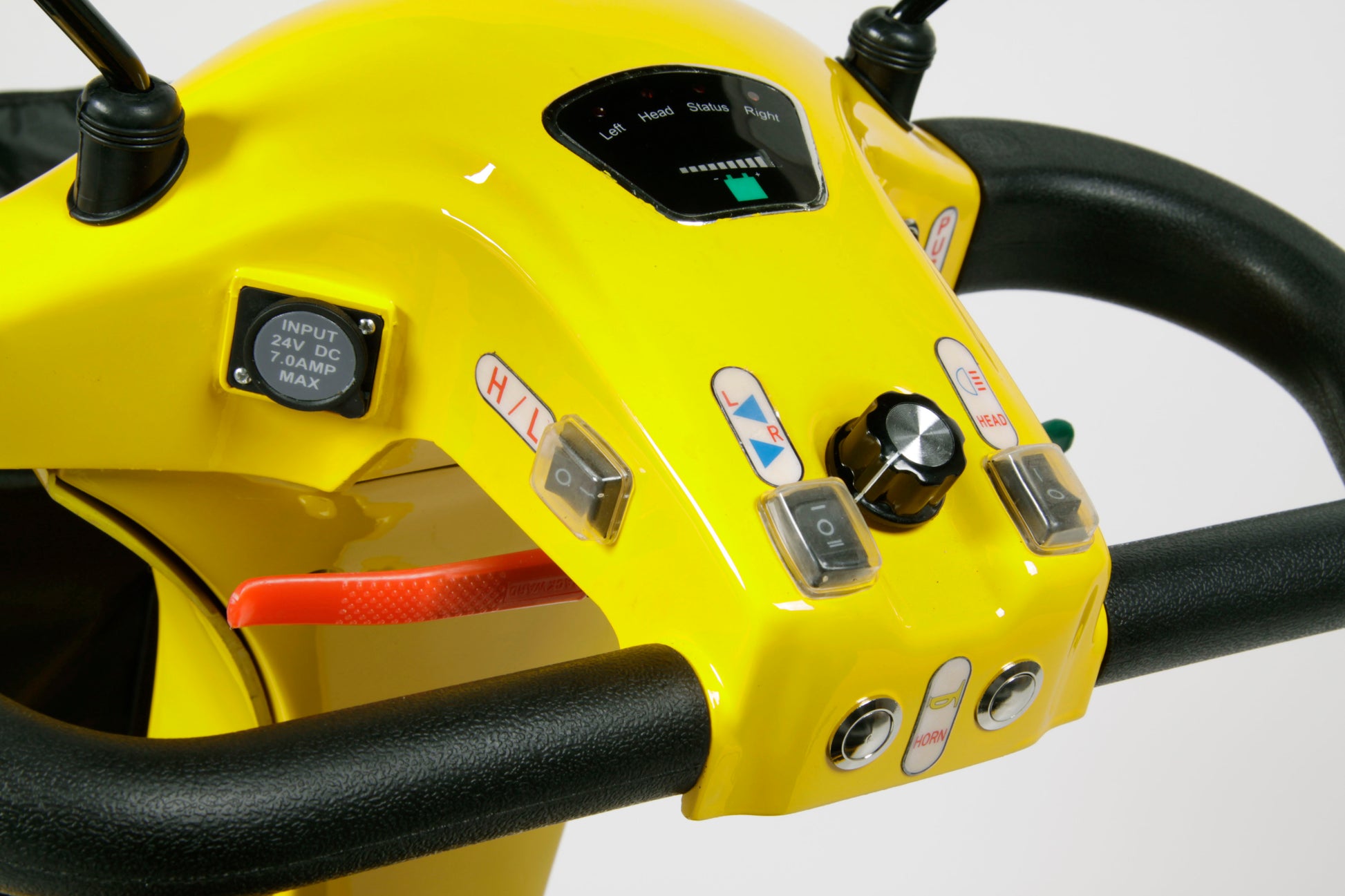

• Dash-mounted brake release.
• P&G controller.
• Blue, Red and Yellow variants available through MoveSmart.

AMW Maxi (HT) Scooter Owners Manual

Who Is the AMW Maxi HT Best Suited To?

The Maxi HT is a strong option for someone who regularly travels outdoors, needs a larger and more powerful scooter, and values high ground clearance, large batteries and a suspended ride. It is particularly relevant for rural and semi-rural users whose routes include firm gravel, grass, uneven paving or longer distances.

If most riding is on ordinary footpaths and shopping areas, the Discovery may be easier to manoeuvre and more than capable enough. The Maxi HT makes most sense when the extra size and terrain capability will genuinely be used.

Frequently Asked Questions

What motor does the AMW Maxi HT use?

The Maxi HT uses a 1200W motor.

What batteries are fitted?

It uses two 75Ah GEL 12V batteries.

What is the user capacity?

The user-capacity range is 150–200 kg depending on terrain and use. For higher user weights, suitability should be considered against the intended terrain and operating conditions.

What is the maximum speed?

Maximum speed is up to 18 km/h.

What travel range can I expect?

Range is approximately 35–40 km per charge. Actual distance varies with rider weight, terrain, gradients, temperature, battery condition and driving style.

What size are the tyres?

The Maxi HT uses 35.6 cm (14") tyres.

Does it have suspension?

Yes. It has full suspension.

What is the ground clearance?

Ground clearance is approximately 16 cm.

What is the turning radius?

The turning radius is approximately 165 cm.

What is the climbing grade?

The climbing grade is up to 15° under suitable conditions.

What braking system does it use?

The Maxi HT uses electronic regenerative braking and has a dash-mounted brake release.

Is the seat adjustable?

Yes. The seat provides fore/aft, swivel, height and backrest adjustment.

What accessories are supplied?

The package includes front and rear baskets, rain cover, owner’s manual, walking-stick holder and stick, charger, paint-repair item and toolkit.

What colours are available?

MoveSmart carries Blue, Red and Yellow variants.

Is this mobility scooter available for delivery across New Zealand?

We can and do deliver to customers across New Zealand — however, mobility scooters and power chairs are more complex products and can be sizeable, so we generally recommend finding a local retailer who can provide hands-on service and ongoing support. It is also a good idea to test-drive or trial a mobility scooter before committing to a purchase. MoveSmart focuses its sales and servicing within the Central Plateau region, but we are always happy to chat. Get in touch and we can offer advice, suggest a trusted dealer closer to you, or work with you to tailor a solution.
