Heartway S21F Freestyler Mobility Scooter

Heartway S21F Freestyler Automatic-Folding Mobility Scooter

The Heartway S21F Freestyler Mobility Scooter is the travel-focused model in MoveSmart's Heartway range. Unlike the larger Blaze and Maven scooters, the Freestyler is designed around automatic folding, compact storage and vehicle transport. It folds at the press of a button or with the supplied remote control and weighs approximately 22.75 kg including the standard lithium battery.

For users who want a mobility scooter for shopping trips, holidays and regular car travel rather than long-distance road use, the Freestyler's compact folded size and simple automatic folding mechanism are its main advantages.

Where the Freestyler Fits in the Heartway Range

The Freestyler is the compact travel model. The Blaze steps up to full suspension, pneumatic tyres and more outdoor capability. The Maven is the long-range road/community scooter, while the Maven XR is the largest semi-all-terrain option.

Choose the Freestyler when portability is more important than suspension, high ground clearance or long range. Its approximately 30 mm clearance, 6 km/h speed and smaller solid wheels mean it is best suited to firm, relatively smooth surfaces.

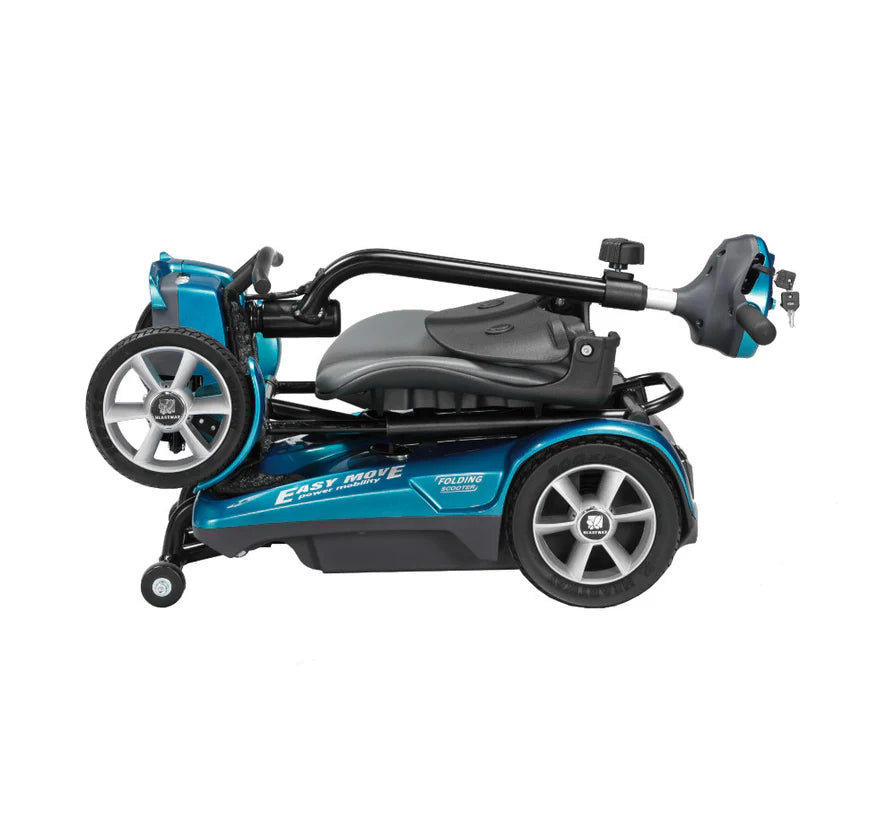

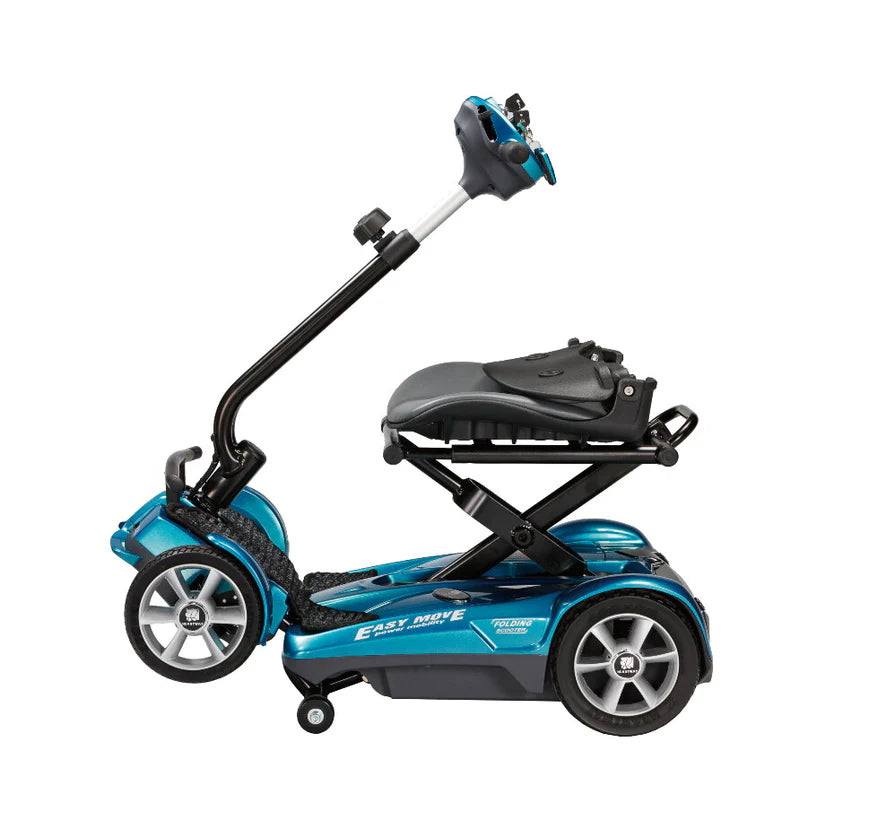

Automatic Folding for Car and Travel Use

The scooter folds electrically rather than requiring the frame to be dismantled into multiple heavy sections. Folded dimensions are approximately 730 x 460 x 465 mm, helping it fit into suitable vehicle boots and storage spaces.

The complete scooter still weighs more than 22 kg, so anyone expected to lift it should make sure that weight is manageable. Automatic folding reduces bulk; it does not make the scooter weightless.

Lithium Battery Options

The standard 13.4Ah lithium battery provides a travel range of up to approximately 13.9 km under suitable conditions. An optional 10.05Ah lithium battery provides a shorter range of around 10.4 km and may suit travellers working within particular airline battery limits.

Airline approval is never automatic. Battery watt-hour limits, documentation and mobility-device procedures vary by airline and route. Confirm the exact battery and scooter requirements directly with the airline before booking or travelling.

Compact Everyday Performance

The Freestyler reaches up to 6 km/h and uses a 180W motor with a Dynamic 50A controller. Its approximately 1000 mm turning radius helps in shopping areas, terminals and other tighter environments.

The small 30 mm ground clearance means kerbs, high thresholds and rough surfaces should be approached cautiously or avoided.

Solid Wheels and Safety Systems

Solid alloy puncture-proof wheels remove the need for tyre-pressure checks. The scooter also includes automatic electric braking, automatic speed reduction, anti-rollback, anti-tip wheels and an auto-stop function designed to prevent folding while the scooter is in use.

Key Features

• Automatic electric folding.
• Remote-control folding.
• 22.75 kg total weight with standard battery.
• 21.3 kg weight without battery.
• 115 kg safe working load.
• Standard 13.4Ah lithium battery with up to 13.9 km range.
• Optional 10.05Ah lithium battery with approximately 10.4 km range.
• Maximum speed up to 6 km/h.
• 180W motor with Dynamic 50A controller.
• 200 x 50 mm solid puncture-proof drive wheels.
• Automatic electric braking and speed reduction.
• Anti-rollback and anti-tip systems.
• LED lighting.

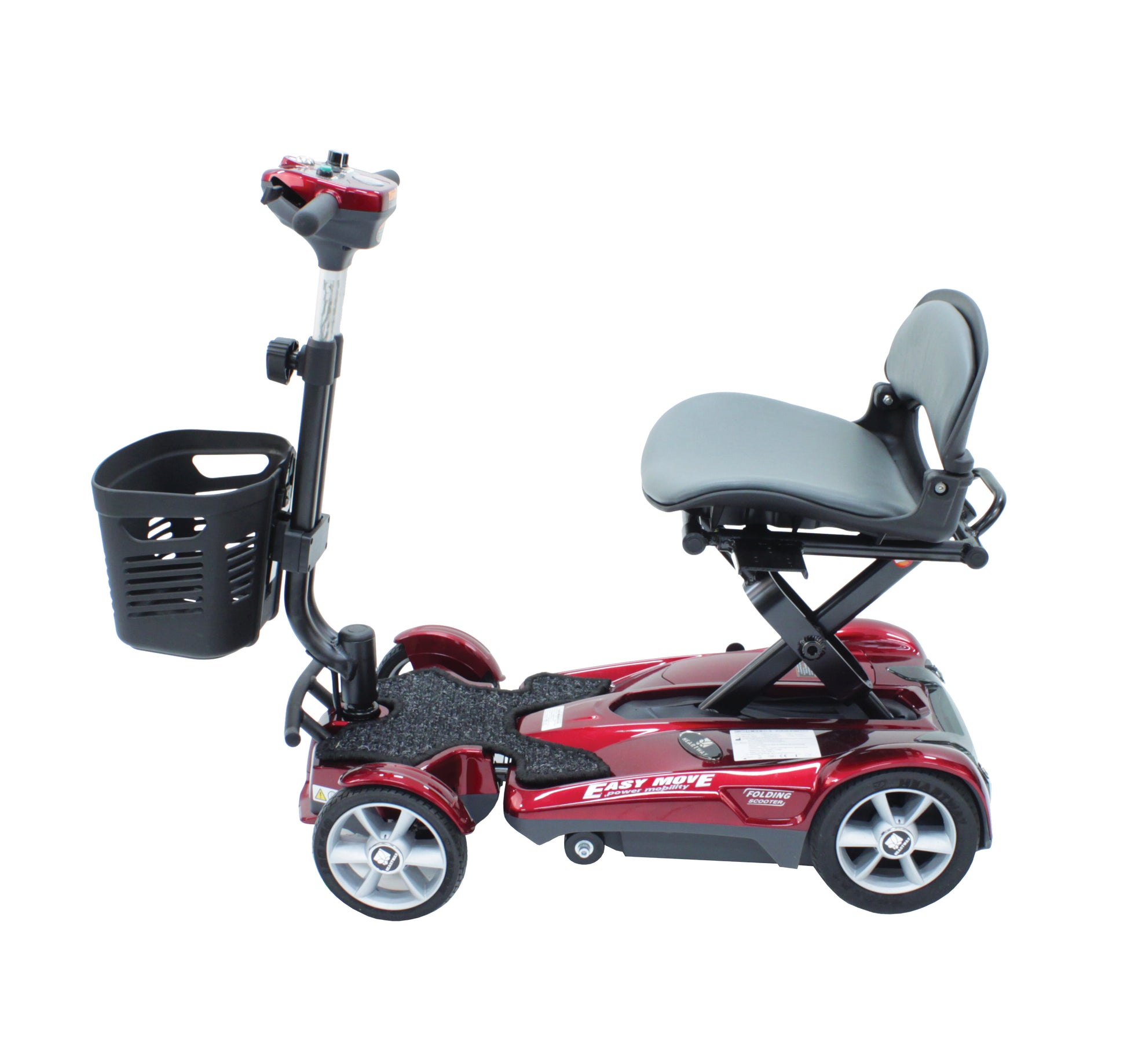

• Front basket.

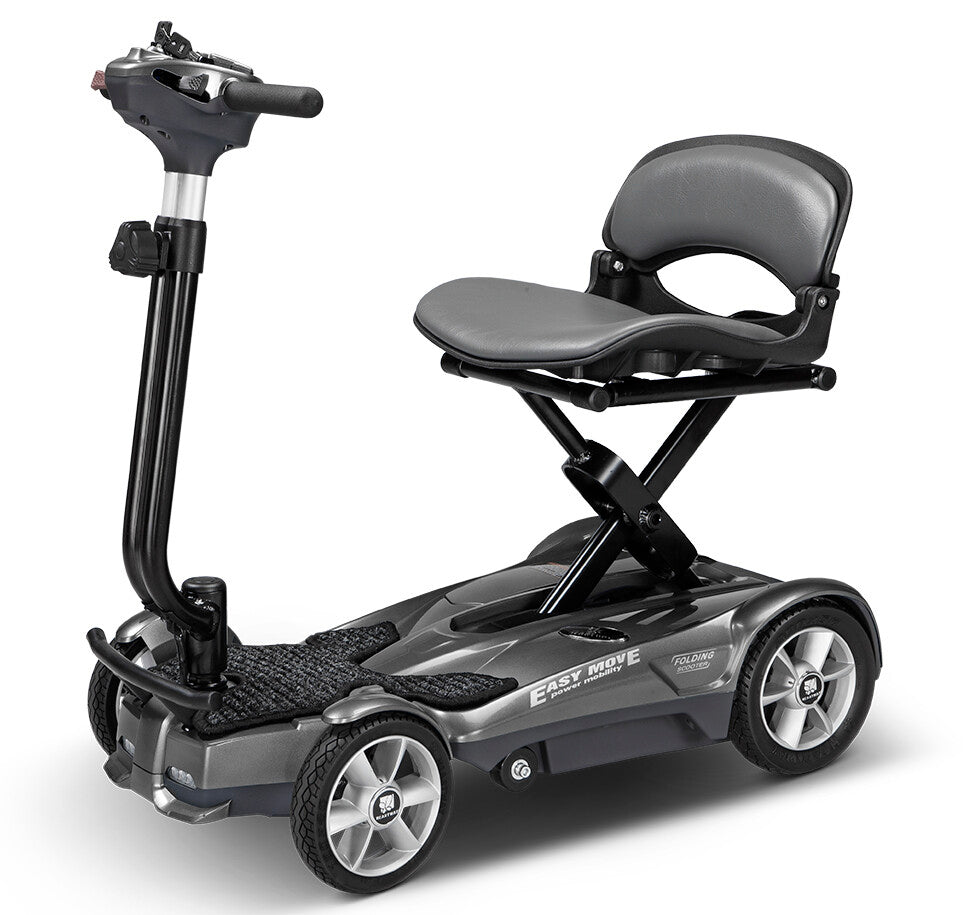

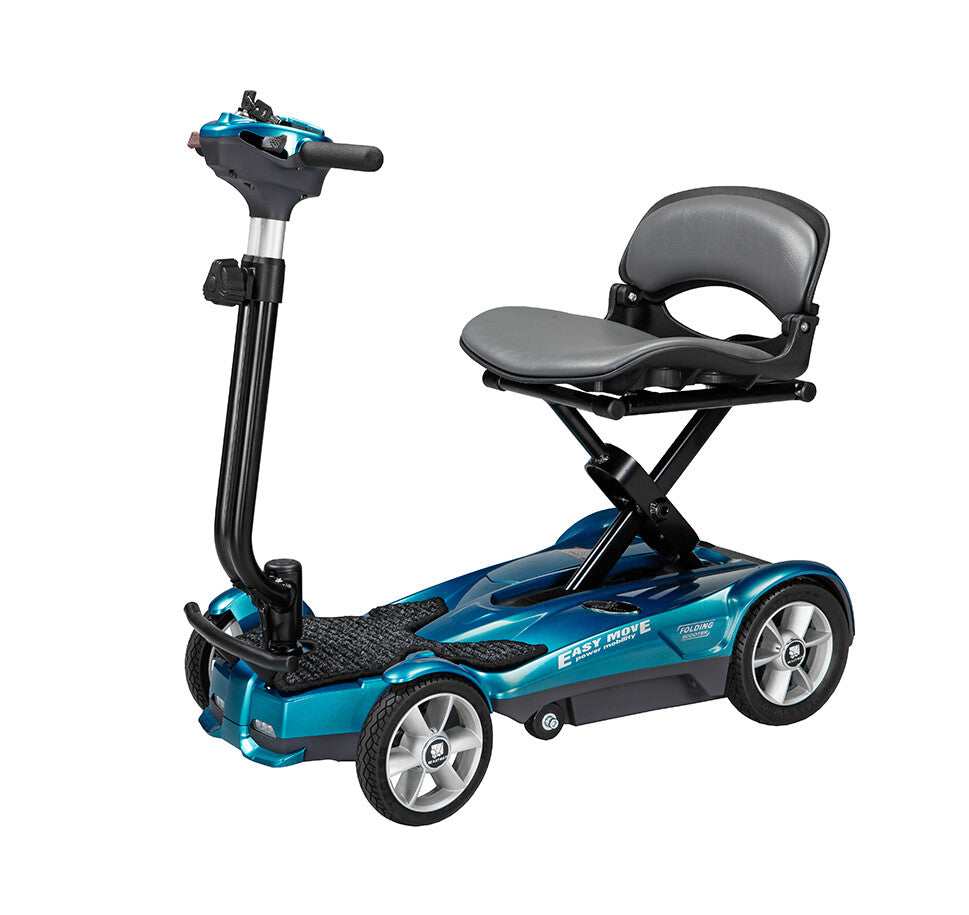

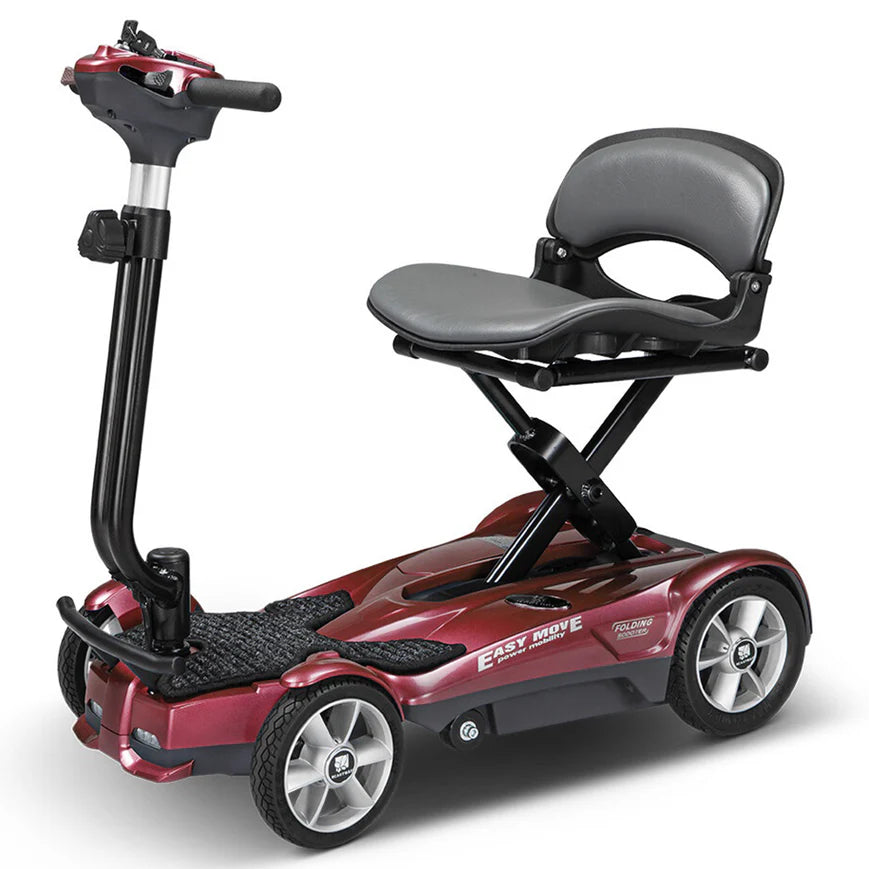

• Red, Blue and Gray variants.

Heartway S21F Freestyler Travel Scooter Owners Manual

Frequently Asked Questions

Who is the Heartway Freestyler best suited to?

It suits users who prioritise compact folding, car transport and travel over long range or rough-terrain capability.

How is it different from the Heartway Blaze?

The Freestyler is much lighter and automatically folds for transport. The Blaze is a larger outdoor scooter with full suspension, pneumatic tyres and substantially more range.

How much does the S21F weigh?

Approximately 22.75 kg with the standard battery and 21.3 kg without the battery.

Does it fold automatically?

Yes. Folding can be activated on the scooter or using the supplied remote control.

What are the folded dimensions?

Approximately 730 mm long x 460 mm wide x 465 mm high.

What is the maximum user weight?

115 kg.

What range does the standard battery provide?

Up to approximately 13.9 km under suitable conditions. Actual range varies with user weight, terrain, gradients, battery condition, temperature and driving style.

What is the optional 10.05Ah battery for?

It provides a lower-capacity battery option that may suit some airline battery policies. Its range is approximately 10.4 km. Always confirm acceptance with the airline before travel.

Is the scooter airline approved?

No blanket airline approval should be assumed. Airlines set their own mobility-device and lithium-battery requirements, so confirm the exact scooter and battery with the airline before travelling.

What is the maximum speed?

Up to 6 km/h.

What is the turning radius?

Approximately 1000 mm.

What is the ground clearance?

Approximately 30 mm.

What is the maximum safe slope?

3°. Surface condition, load and weather still affect safe operation.

Are the tyres puncture-proof?

The scooter uses solid puncture-proof wheels.

What colours are available?

Red, Blue and Gray, subject to availability.
