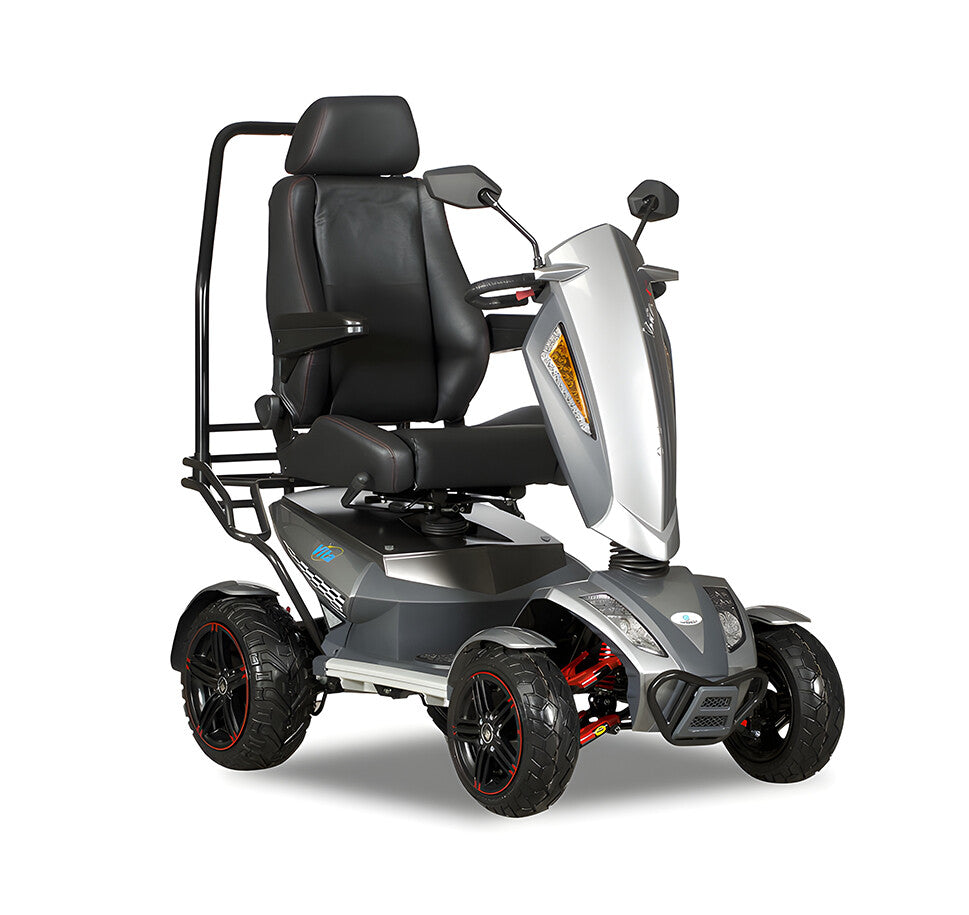

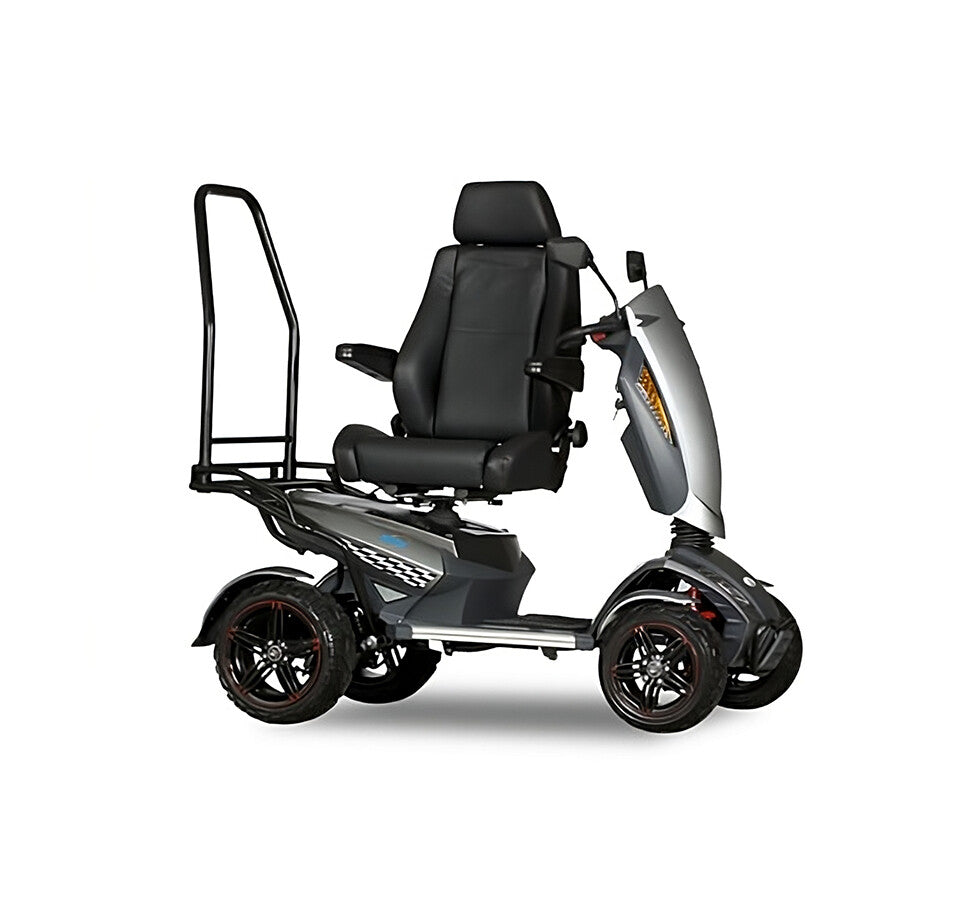

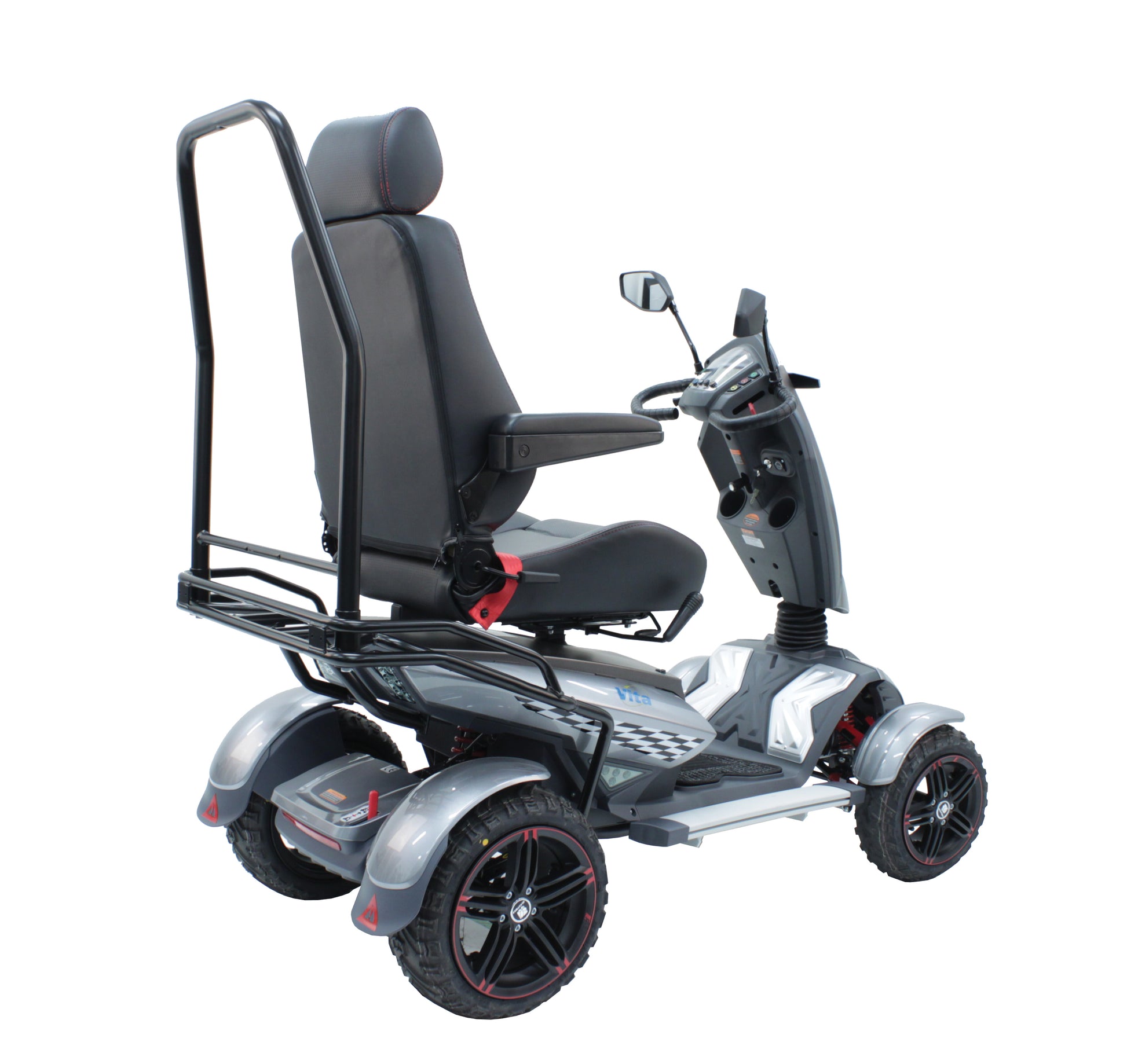

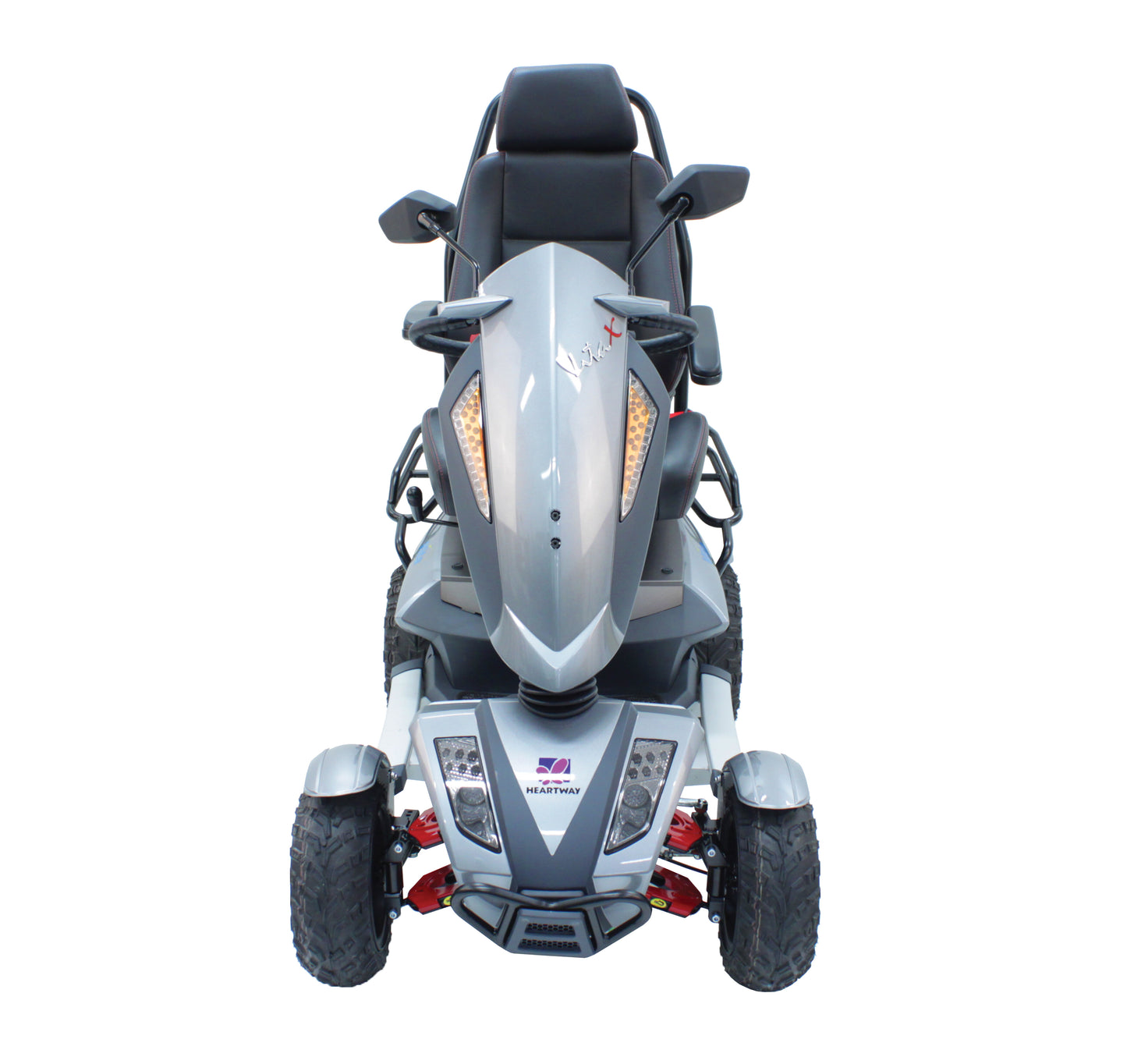

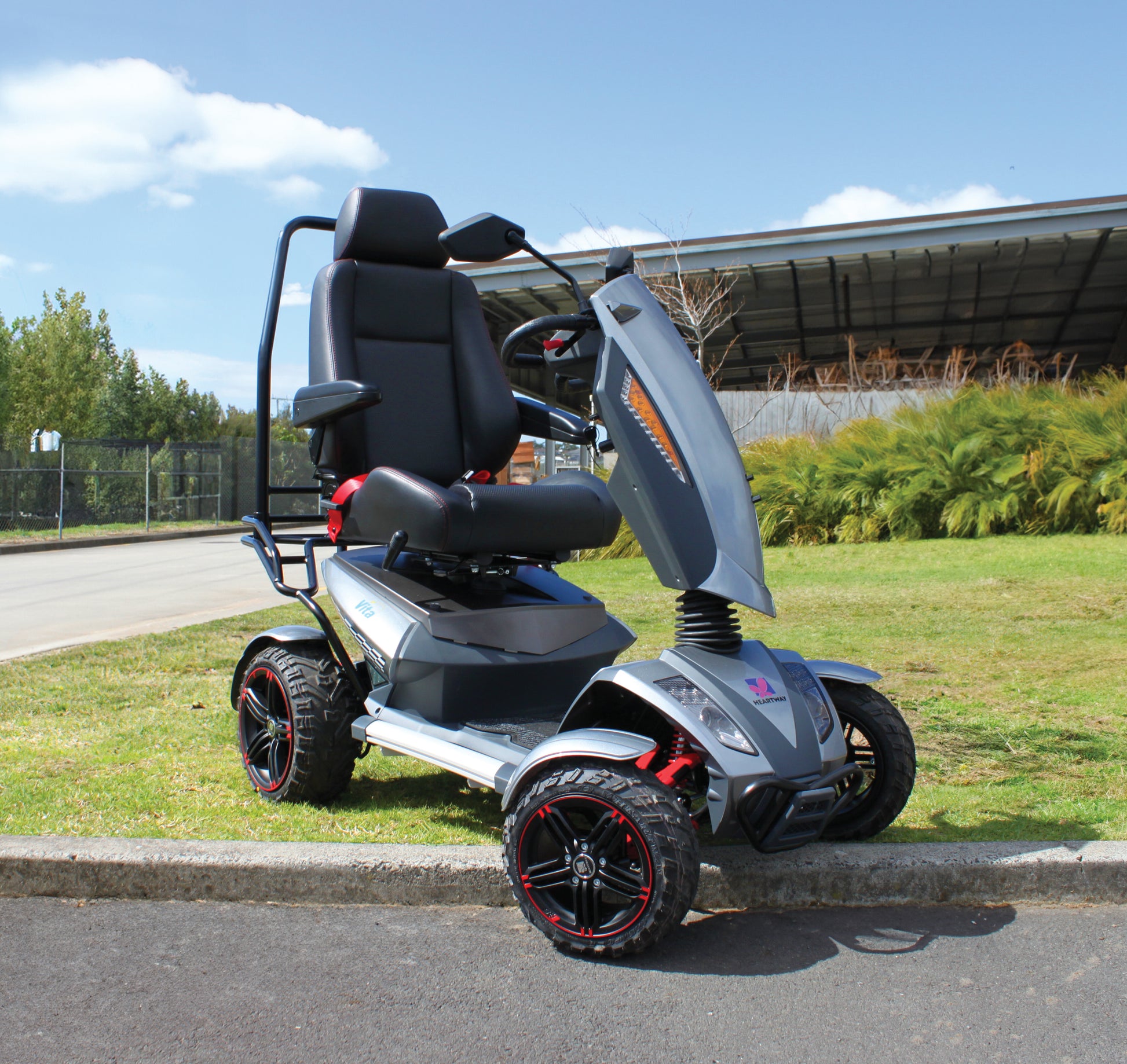

Heartway Maven XR Mobility Scooter
The Heartway Maven XR Mobility Scooter is the largest and most rugged model in MoveSmart's current Heartway scooter range. It is built for users who need more ground clearance, stronger suspension and deeper-tread tyres than a conventional road or community scooter provides.
A 900W 4-pole motor, 170 mm ground clearance, heavy-duty full suspension and large semi-all-terrain tyres give the Maven XR more capability on suitable gravel, firm grass and uneven outdoor surfaces. It supports users up to 160 kg, reaches up to 15 km/h, and offers a travel range of up to approximately 40 km.
Where the Maven XR Fits in the Heartway Range
The Freestyler is the compact automatic-folding travel model. The Blaze is the narrower mid-size outdoor scooter. The Maven is the long-range road and community model. The Maven XR goes further toward semi-all-terrain use with a stronger 900W motor, 170 mm clearance, larger tyres and more substantial suspension.
Choose the XR when rougher outdoor surfaces are a regular part of the journey and the scooter's extra size is acceptable. If most travel is on formed paths and roads, the standard Maven is smaller and provides a slightly longer stated range.

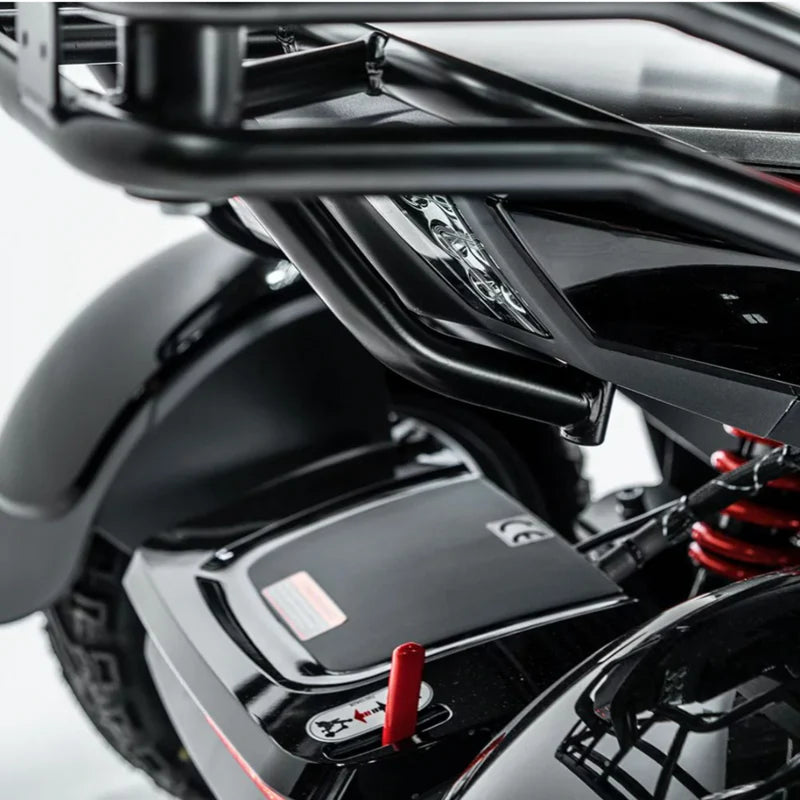

900W Motor and Heavy-Duty Suspension
The Maven XR uses a 900W 4-pole motor with an S-Drive 200A controller. Double A-arm front suspension and rear shock absorption are designed to manage more demanding outdoor surfaces than the standard Maven.
This is still a mobility scooter rather than an off-road recreational vehicle. Loose gravel, steep slopes, mud, deep grass and unstable surfaces can exceed the safe limits of any scooter, so terrain should always be assessed conservatively.

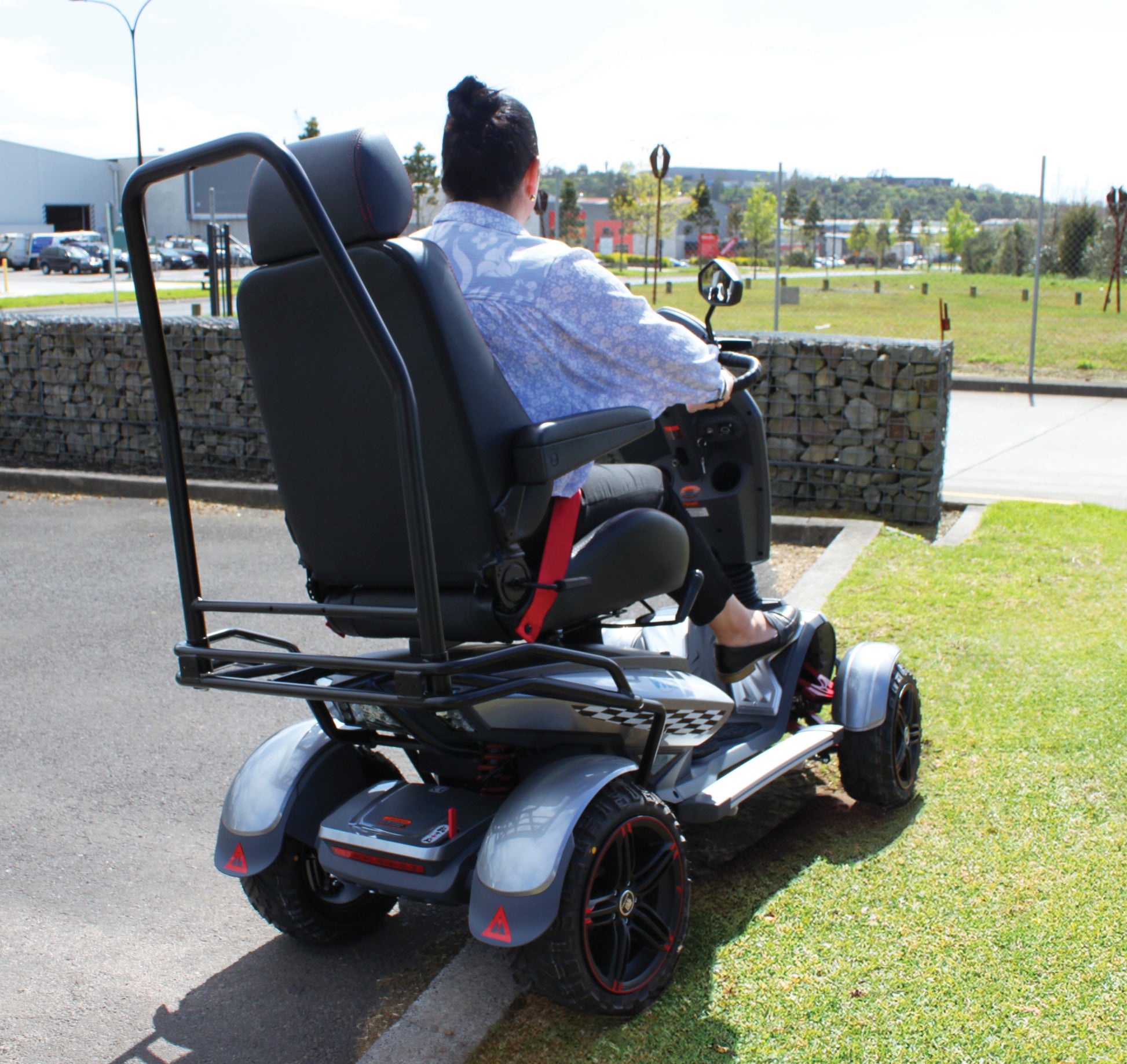

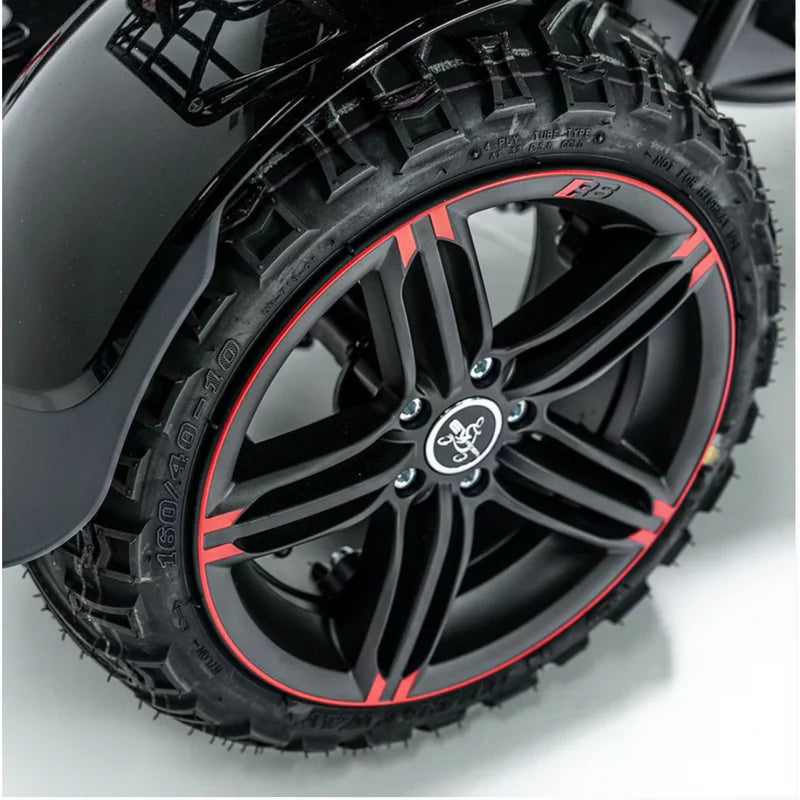

170 mm Ground Clearance and Deep-Tread Tyres
Ground clearance is approximately 170 mm, substantially more than the standard Maven's 80 mm. Front wheels are approximately 350 x 120 mm and drive wheels around 380 x 150 mm, with deep-tread semi-all-terrain tyres.
The extra clearance and tyre size are the main reasons to choose the XR for rougher paths, but they also contribute to the scooter's larger footprint and approximately 2000 mm turning radius.
Long-Range 80Ah Battery System
Two 12V 80Ah batteries provide a travel range of up to approximately 40 km under suitable conditions. Actual distance varies with user weight, terrain, gradients, tyre pressure, temperature, battery condition and driving style.

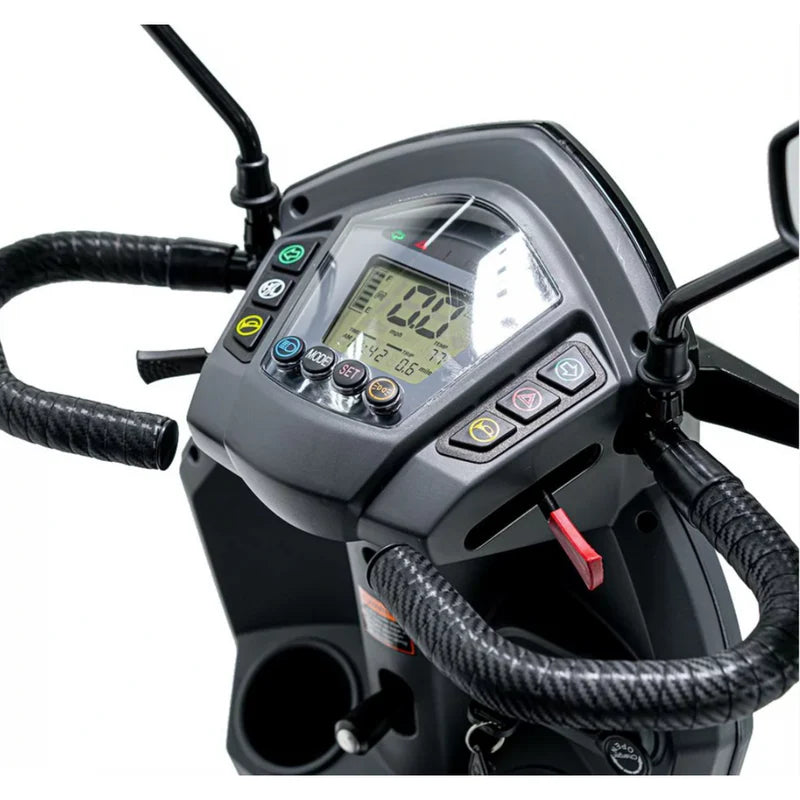

Captain Seat, LCD Console and Lighting

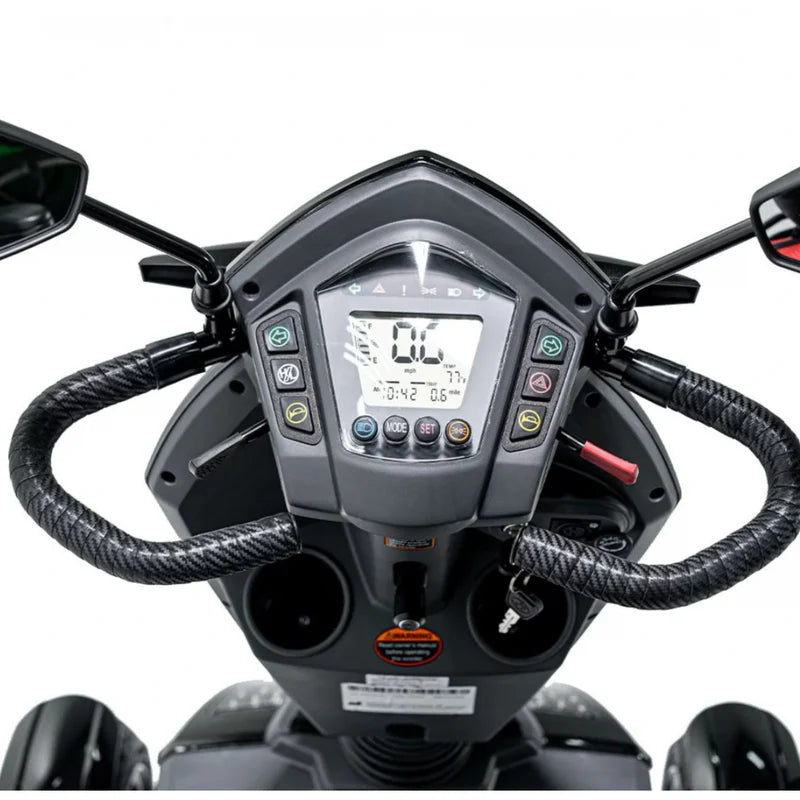

The captain-style seat swivels and has adjustable armrests to assist access and driving comfort. The LCD console provides key driving information, while full LED lighting, mirrors and a front basket support regular outdoor and community use.
Key Features
- 900W 4-pole motor.
- 160 kg safe working load.
- Up to 40 km travel range.
- Maximum speed up to 15 km/h.
- 170 mm ground clearance.
- Heavy-duty full suspension with double A-arm front suspension and rear shock absorption.
- Large deep-tread semi-all-terrain tyres.
- 2 x 12V 80Ah batteries.
- S-Drive 200A controller.
- Captain-style swivel seat with adjustable armrests.
- LCD console.
- Full LED lighting, front basket and mirrors.
- Titanium Grey finish.
Frequently asked questions
Frequently Asked Questions
Who is the Heartway Maven XR best suited to?
It suits users who regularly encounter rougher outdoor surfaces and want more ground clearance, stronger suspension and larger tyres than a conventional community scooter provides.
How is the Maven XR different from the standard Maven?
The XR has a stronger 900W motor, 170 mm ground clearance and larger semi-all-terrain tyres. The standard Maven is smaller, more road/community focused and has a slightly longer stated range of up to 45 km.
Is the Maven XR an off-road scooter?
It is best described as semi-all-terrain. It is suited to appropriate roads, paths, firm grass, gravel and uneven outdoor surfaces, but not unsafe steep, loose, muddy or unstable terrain.
What is the safe working load?
160 kg.
What is the maximum speed?
The current specification is up to 15 km/h.
What is the travel range?
Up to approximately 40 km per charge under suitable conditions. Actual range varies with load, terrain, gradients, tyre pressure, battery condition, temperature and driving style.
What motor does it use?
A 4-pole 900W motor.
What batteries does it use?
Two 12V 80Ah batteries.
What is the ground clearance?
Approximately 170 mm.
Does it have full suspension?
Yes. It uses heavy-duty full suspension with double A-arm front suspension and rear shock absorption.
What is the turning radius?
Approximately 2000 mm.
How large is the scooter?
Approximately 790 mm wide x 1620 mm long x 1450 mm high.
Does the seat swivel?
Yes. The captain-style seat swivels and has adjustable armrests.
What colour is available?
Titanium Grey.
Is this mobility scooter available for delivery across New Zealand?
We can and do deliver to customers across New Zealand — however, mobility scooters and power chairs are more complex products and can be sizeable, so we generally recommend finding a local retailer who can provide hands-on service and ongoing support. It is also a good idea to test-drive or trial a mobility scooter before committing to a purchase. MoveSmart focuses its sales and servicing within the Central Plateau region, but we are always happy to chat. Get in touch and we can offer advice, suggest a trusted dealer closer to you, or work with you to tailor a solution.
Specifications
| Specification | Details |
|---|---|
| Safe working load | 160 kg |
| Overall dimensions | 790 mm wide x 1620 mm long x 1450 mm high |
| Seat dimensions | 500 mm wide x 480 mm deep |
| Ground clearance | 170 mm |
| Turning radius | 2000 mm |
| Battery | 2 x 12V 80Ah |
| Maximum range | Up to 40 km |
| Maximum speed | 15 km/h |
| Motor | 4-pole 900W, 25:1 |
| Controller | S-Drive 200A |
| Front wheel | 350 x 120 mm |
| Drive wheel | 380 x 150 mm |
| Suspension | Full |
| Product weight | 150 kg |
| Product weight without batteries | 100 kg |
