Heavy-Duty Outdoor Scooter with Full Suspension and Hydraulic Brakes
The Pride Pathrider® 140 XL is a large, high-performance four-wheel mobility scooter designed for demanding outdoor travel. A robust 24V DC motor, full front and rear suspension, sealed hydraulic braking system and 33 cm (13") pneumatic tyres provide the stability, traction and braking performance needed for longer journeys and more challenging suitable terrain.
The Pathrider 140 XL supports users up to 181 kg, reaches speeds of up to 10 km/h and provides a range of up to 35 km per charge. Its 13.3 cm ground clearance and substantial chassis suit outdoor environments where smaller scooters may be less comfortable or capable.
A deluxe pillow-top high-back seat, adjustable wraparound tiller and bright LED lighting support comfort and control over longer rides. The scooter uses two 70Ah batteries and an off-board 8A charger for dependable daily range.
Pride Pathrider 140 XL – Key Features
- 181 kg maximum user weight.
- Up to 35 km range per charge.
- Maximum speed of 10 km/h.

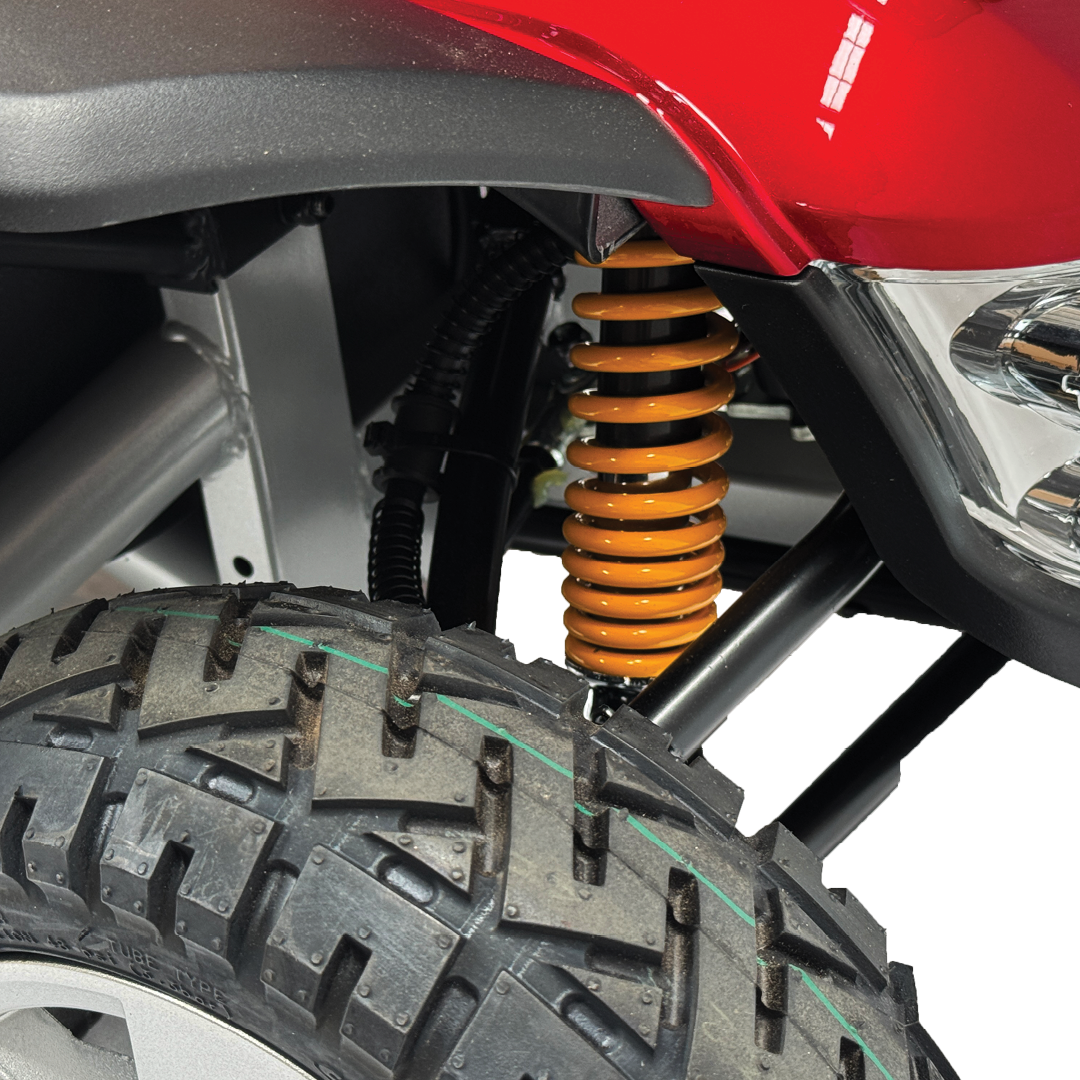

- Full front and rear suspension for outdoor ride comfort.
- Sealed hydraulic braking system for confident stopping.
- 33 cm (13") pneumatic tyres for traction and cushioning.
- 13.3 cm ground clearance at the mid-frame.
- 24V DC motor for strong outdoor performance.
- Deluxe pillow-top high-back seat for extended comfort.

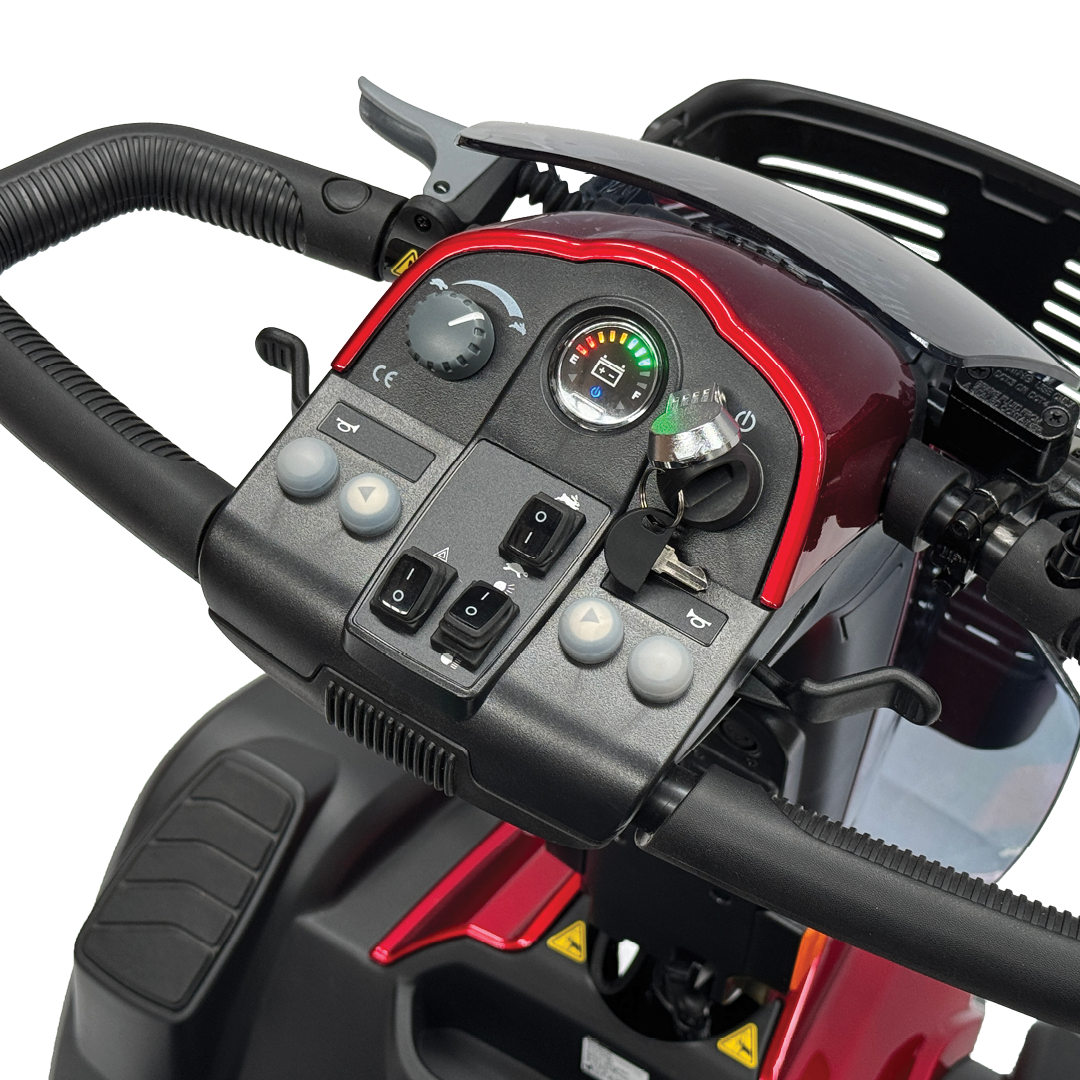

- Adjustable wraparound tiller for ergonomic control.
- Bright LED lighting for improved visibility.
- Accessible tie-down points for transport of the unoccupied scooter.
- Two 70Ah batteries with off-board 8A charger.
Why Choose the Pride Pathrider 140 XL?
The Pathrider 140 XL is built for users who regularly travel outdoors and want greater ground clearance, suspension travel, braking capability and battery range than a mid-size scooter offers. Its heavy-duty chassis, hydraulic brakes and 33 cm (13") pneumatic tyres make it a strong choice for longer journeys on varied suitable surfaces.
Pride Pathrider 140XL Mobility Scooter Owners Manual
Frequently Asked Questions
What is the maximum user weight?
The Pathrider 140 XL supports users up to 181 kg.
How far can it travel on one charge?
The stated range is up to 35 km per charge. Actual range varies with user weight, terrain, tyre pressure, battery condition, temperature and driving conditions.
What is the maximum speed?
The maximum speed is up to 10 km/h.
What is the turning radius?
The turning radius is approximately 210 cm to the right and 208 cm to the left.
What suspension does the Pathrider 140 XL use?
It uses full front and rear suspension for improved comfort and control on uneven outdoor surfaces.
What type of brakes does it use?
The scooter uses a sealed hydraulic braking system.
What size are the tyres?
It uses 33 cm (13") pneumatic tyres at both the front and rear.
What is the ground clearance?
Ground clearance is approximately 13.3 cm at the mid-frame.
What size is the standard seat?
The deluxe pillow-top high-back seat measures approximately 49.5 cm wide by 44.5 cm deep.
Is the tiller adjustable?
Yes. The wraparound tiller can be adjusted to help achieve a comfortable driving position.
Does it include lights?
Yes. Bright LED lighting is included for improved visibility during outdoor travel.
What batteries does it use?
The Pathrider 140 XL uses two 70Ah batteries with an off-board 8A charger.
How heavy is the scooter?
The scooter weighs approximately 117.7 kg excluding batteries, and the main frame is the heaviest section at approximately 93 kg.
What surfaces is it best suited to?
The 140 XL is designed for outdoor travel on sealed paths and a range of uneven suitable surfaces. Pneumatic tyres, full suspension and high ground clearance make it better suited to demanding terrain than lighter travel scooters.
Is this mobility scooter available for delivery across New Zealand?
We can and do deliver to customers across New Zealand — however, mobility scooters and power chairs are more complex products and can be sizeable, so we generally recommend finding a local retailer who can provide hands-on service and ongoing support. It is also a good idea to test-drive or trial a mobility scooter before committing to a purchase. MoveSmart focuses its sales and servicing within the Central Plateau region, but we are always happy to chat. Get in touch and we can offer advice, suggest a trusted dealer closer to you, or work with you to tailor a solution.
| Product | Pride Pathrider® 140 XL |
|---|---|
| Maximum user weight | 181 kg |
| Range per charge | Up to 35 km |
| Maximum speed | 10 km/h |
| Turning radius | 210 cm right; 208 cm left |
| Overall dimensions | 142.8 cm long x 69.2 cm wide |
| Seat size | 49.5 cm wide x 44.5 cm deep |
| Seat-to-deck height | 47 cm |
| Seat-to-ground height | 66.7–70.5 cm |
| Ground clearance | 13.3 cm at mid-frame |
| Overall weight | 117.7 kg excluding batteries |
| Heaviest piece | 93 kg main frame |
| Suspension | Front and rear |
| Wheel configuration | 4 wheel |
| Front tyres | 33 cm (13") pneumatic |
| Rear tyres | 33 cm (13") pneumatic |
| Batteries | 2 x 70Ah |
| Battery weight | 23.5 kg each |
| Battery charger | Off-board 8A |
| Braking | Sealed hydraulic brakes |

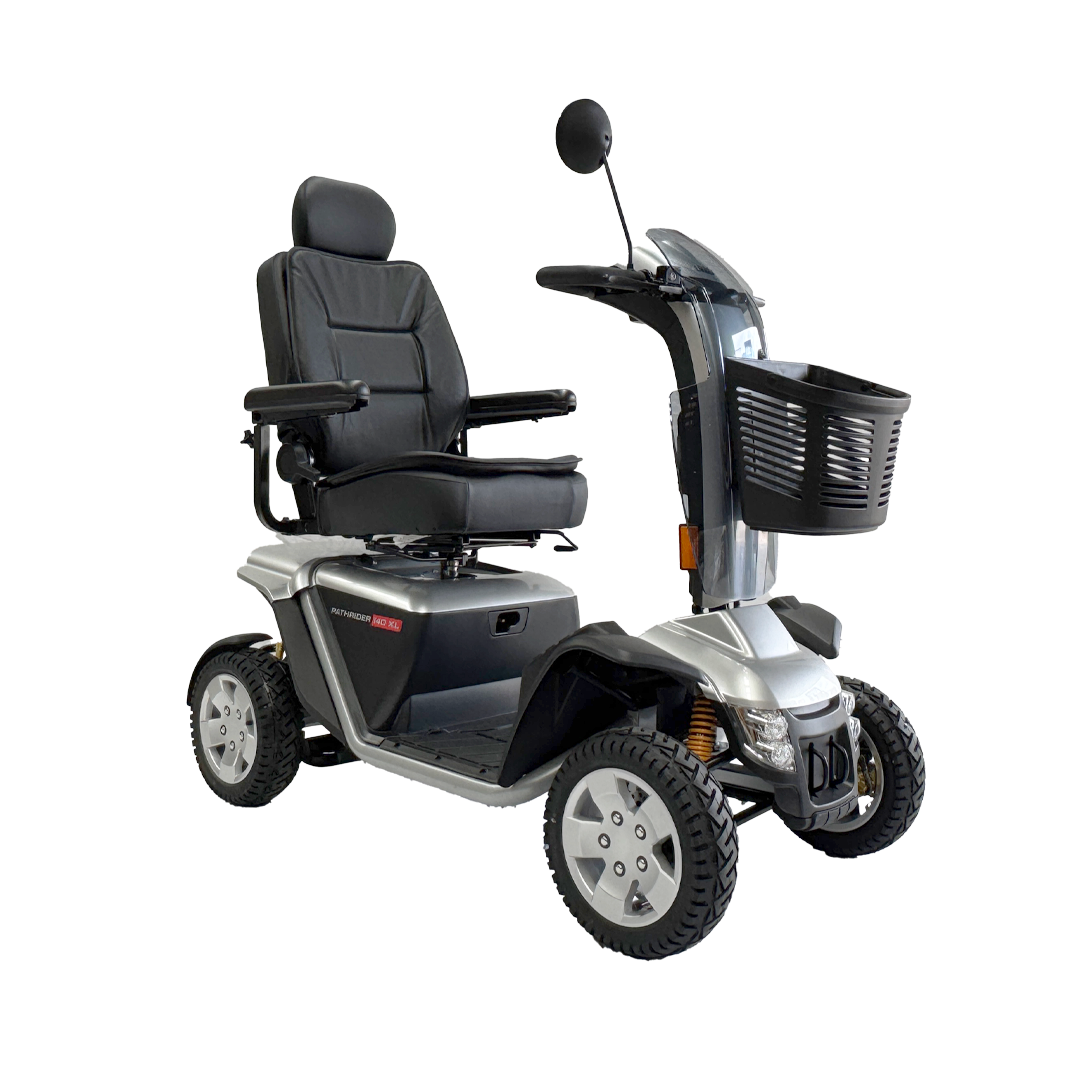

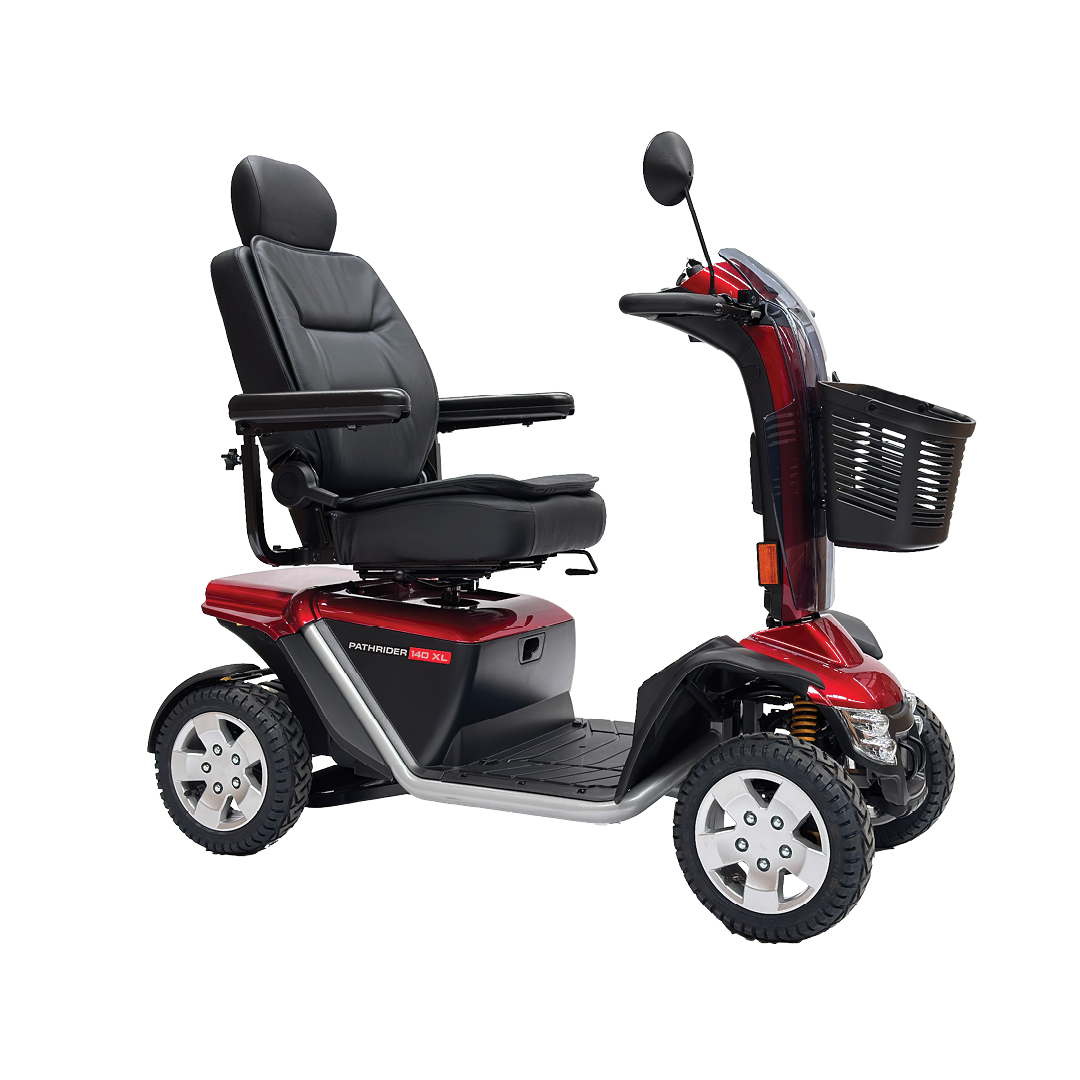

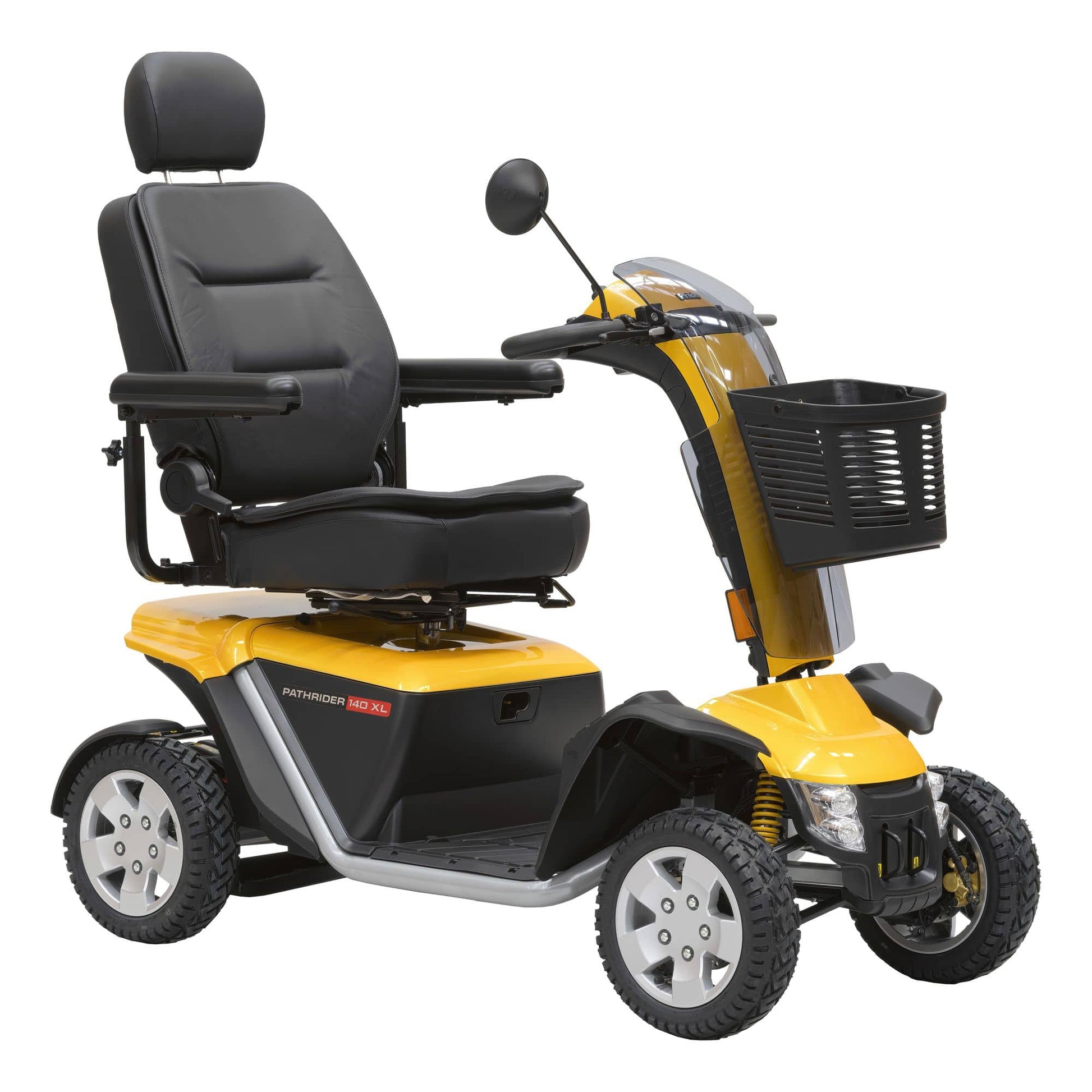

| Colour options | Candy Apple Red, Yellow and Silver |
| Warranty | 2 years structural frame and drivetrain; 1 year electronics; 6 months batteries |
