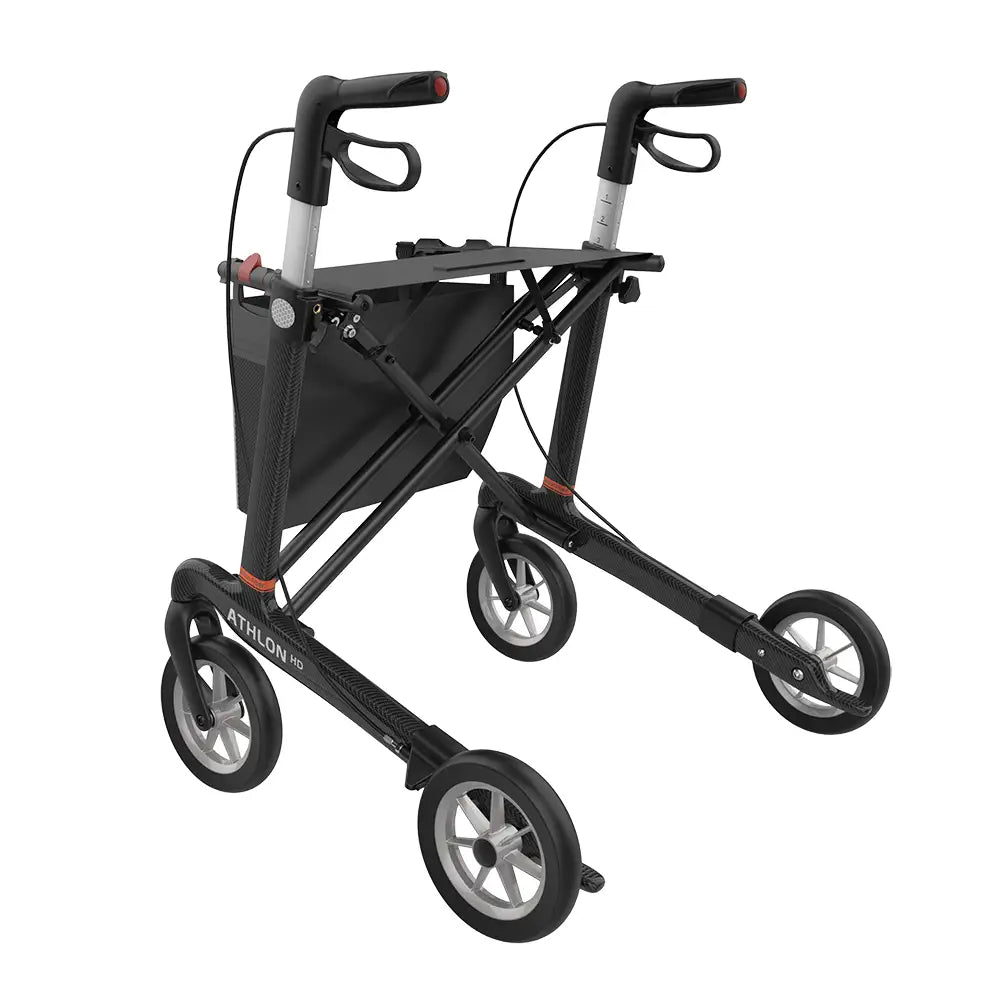

Rehasense Athlon HD Carbon Fibre Bariatric Rollator

Rehasense Athlon HD Carbon Fibre Bariatric Rollator

The Rehasense Athlon HD is a carbon fibre rollator with a reinforced double cross brace and a 200 kg maximum user weight. Its wider frame and seat give larger users space while keeping the standard configuration light enough for everyday handling.

Choose Medium or Large in Black, with TPE wheels or comfort soft PU wheels. Both sizes include a premium Comfort backrest, shopping bag, walking stick holder and kerb step pedal.

Key Features

• Carbon fibre frame with double cross brace for heavy-duty use.
• 200 kg maximum user weight.
• Medium and Large sizes with different seat and handle heights.
• 51 cm wide seat and premium 86 x 20 cm Comfort backrest.
• Choice of TPE or soft PU wheels.
• Height-adjustable ergonomic handles and lockable brakes.
• Side-folding design with Click & Safe catch.
• Removable shopping bag, stick holder, kerb step pedal and reflective details.

Higher Capacity Without a Conventional Heavy Frame

The Athlon HD is designed for users who need a 200 kg rollator capacity and a wider 51 cm seat, while still wanting a frame that is manageable for everyday transport. Its carbon-fibre structure and reinforced double cross brace provide the strength required for the higher rating. At approximately 6.0–6.2 kg in standard configuration, it is considerably lighter to lift than many steel bariatric walkers.

The 69 cm overall width creates more walking and seating room, but it also needs wider doorways and vehicle storage than a standard 61 cm Rehasense rollator. Measure the narrowest indoor route and consider who will lift the folded frame before choosing it primarily for its low weight.

Medium or Large: Choose by Fit, Not Capacity

Both sizes carry the same 200 kg maximum user weight and use the same 51 cm seat width. Medium has a 54 cm seat height and 69–86 cm handle range; Large raises the seat to 60 cm and adjusts from 74–102 cm at the handles. The correct size is the one that supports an upright walking position and safe sit-to-stand movement.

A seat that is too high can make resting and transfers difficult, while handles set too low or high can affect posture and control. Individual fitting is especially important where lower-limb strength, balance or joint range is limited.

TPE or Soft PU Wheels?

TPE wheels provide the standard firm, low-maintenance rollator feel. Soft PU wheels add some shock absorption over paving joints and uneven paths without requiring pneumatic-tyre maintenance. They improve ride comfort but do not turn the Athlon HD into an all-terrain walker.

Compare the carbon Athlon HD with the aluminium Server HD. Both are 69 cm wide and rated to 200 kg; Athlon HD offers Medium and Large sizes with a lighter carbon frame, while Server HD is supplied in a single Large configuration with a wider 55 cm seat.

Fitting and Use

Check seat height, handle range and the 69 cm overall width against the user and intended routes. Set both handles to equal height and fully open the frame before walking. Engage the parking brakes before resting on the seat.

Download the manufacturer user manual

Compatible Accessories

These accessories are sold separately. Match the accessory to your rollator model and size, and read the fitting details before ordering. Some items replace equipment already supplied with the rollator.

• Rehasense Crutch Holder for Athlon and Server Rollators — Choose this holder for this frame family.
• Rehasense Cup Holder for Rollators and Wheelchairs — Universal clamp; check mounting position and clearance.
• Rehasense Wrap-Around Oxygen Bottle Holder — Attaches to a compatible shopping bag; check cylinder fit and bag load.
• Rehasense HD Comfort Backrest 86 × 20 cm — Match the listed length and mounting points to your frame.
• Rehasense HD Comfort Backrest 91 × 20 cm — Match the listed length and mounting points to your frame.
• Rehasense HD Rollator Tray with Anti-Slip Mat — Remove before using the rollator seat.
• Rehasense HD Rollator Comfort Seat — Clips over the matching rollator seat for stationary rests.
• Rehasense Rollator Umbrella with Adjustable Arm – Black — Includes the bracket for this frame family.

Frequently Asked Questions

Which options are available?

Black in Medium or Large, each with TPE or soft PU wheels.

What is the maximum user weight?

200 kg. The shopping bag has a separate 5 kg limit.

How do I choose the right size?

The NZ specification lists Medium handles at 69–86 cm with a 54 cm seat, and Large handles at 74–102 cm with a 60 cm seat. Check the fitted position before use.

Can it be used indoors and outdoors?

Yes. The supplier specifies indoor and outdoor use; choose routes suited to the user and wheel configuration.

Can I sit on the rollator?

The seat is for stationary rest. Engage the parking brakes before sitting and do not use the rollator to transport a seated person.

Does it fold?

Yes. It folds sideways to a listed width of 24 cm and locks closed with the Click & Safe catch.

What is included?

Premium Comfort backrest, standard seat, removable shopping bag, stick/crutch holder and kerb step pedal.

What is the difference between wheel options?

TPE is the standard wheel option. Soft PU is offered for additional shock absorption on uneven surfaces.

How much does it weigh?

The NZ sheet lists 5.6 kg for Medium and 5.8 kg for Large, plus a 0.37 kg bag. Soft-wheel configurations may weigh more; these are standard-configuration figures.

How do I care for it?

Clean the frame and wheels with a damp cloth and mild cleaner, dry afterwards and check brakes and fixings regularly. Follow the manufacturer user manual.
