Tas-Tech Bed Lever with Cord & Cleat

Tas-Tech Bed Lever with Cord & Cleat

The Tas-Tech Bed Lever range provides a secure bedside handhold for supported movement between lying, sitting and standing at the side of a suitable conventional bed. This single listing now covers the standard flat- and stepped-base models, three extra-high loop options, and the heavier-duty Bariatric Winged model.

All configurations fit between the mattress and bed base and use a cord-and-cleat securing system. The standard and Extra High models have a 150 kg maximum user weight, while the Bariatric Winged model increases this to 210 kg. These levers are intended to provide balance and support during movement; they are not designed to carry the user's full body weight.

Key Features

• Eight configurations covering standard, Extra High and Bariatric Winged options.

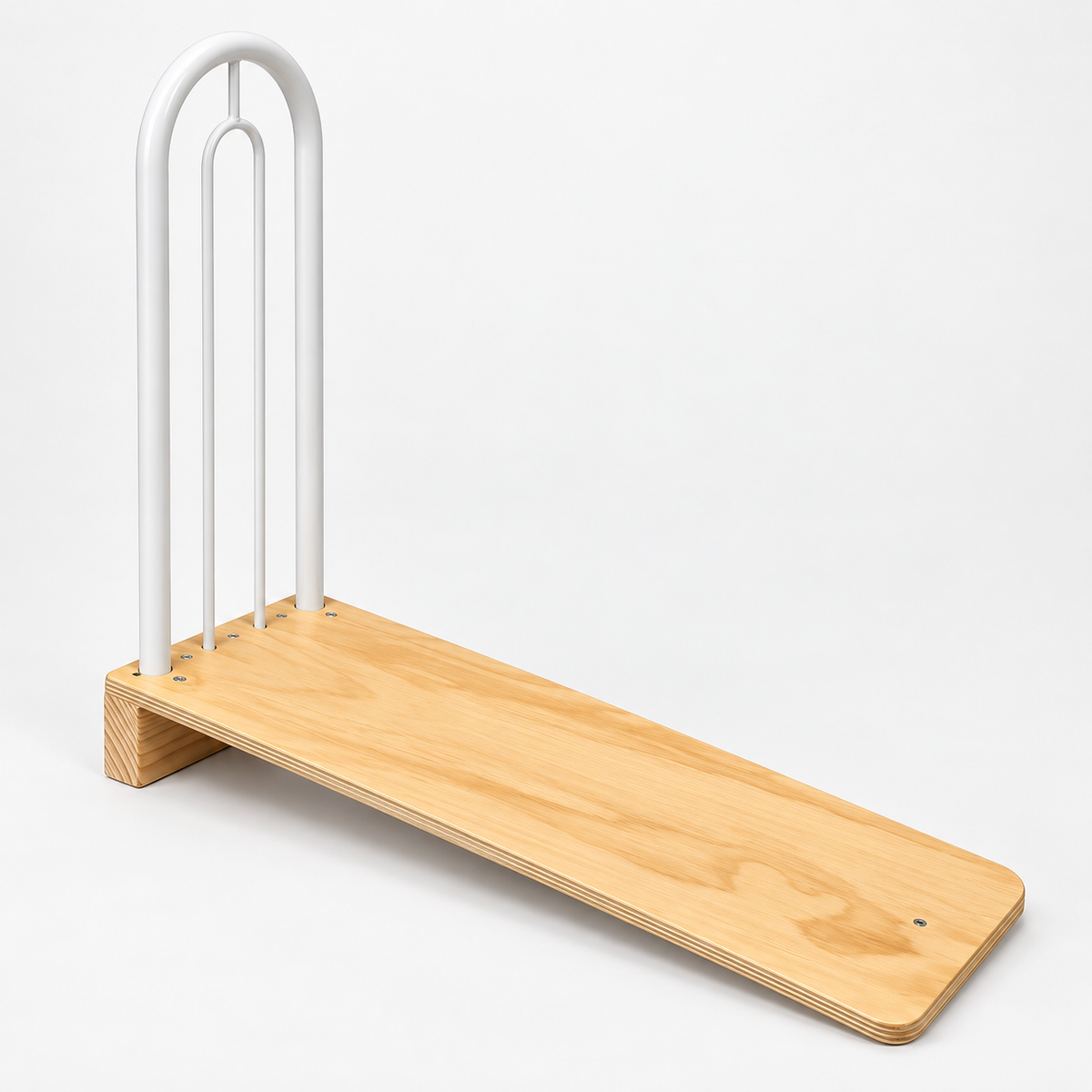

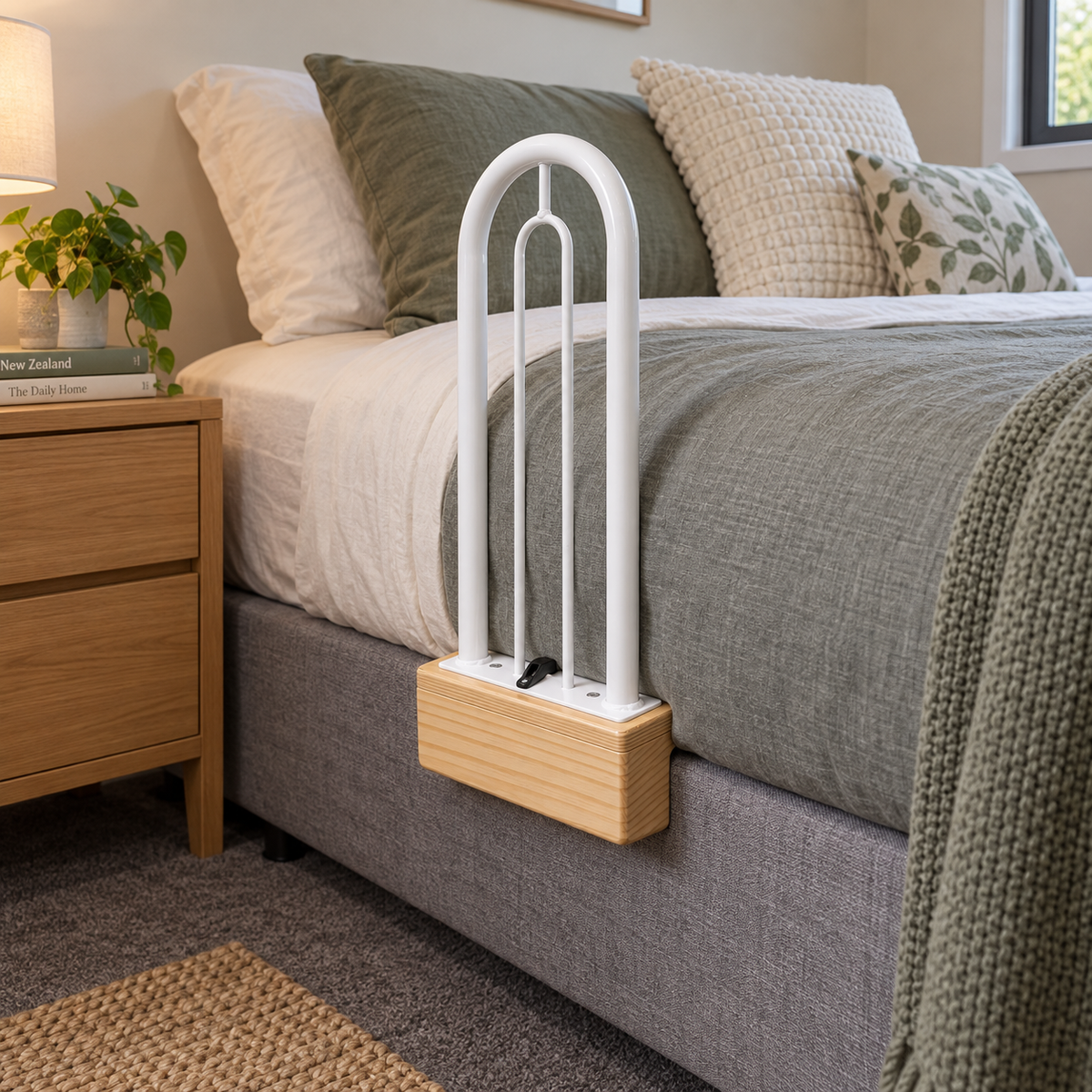

• Standard models: 55 cm loop height with flat or stepped bases in 60 cm and 80 cm lengths.

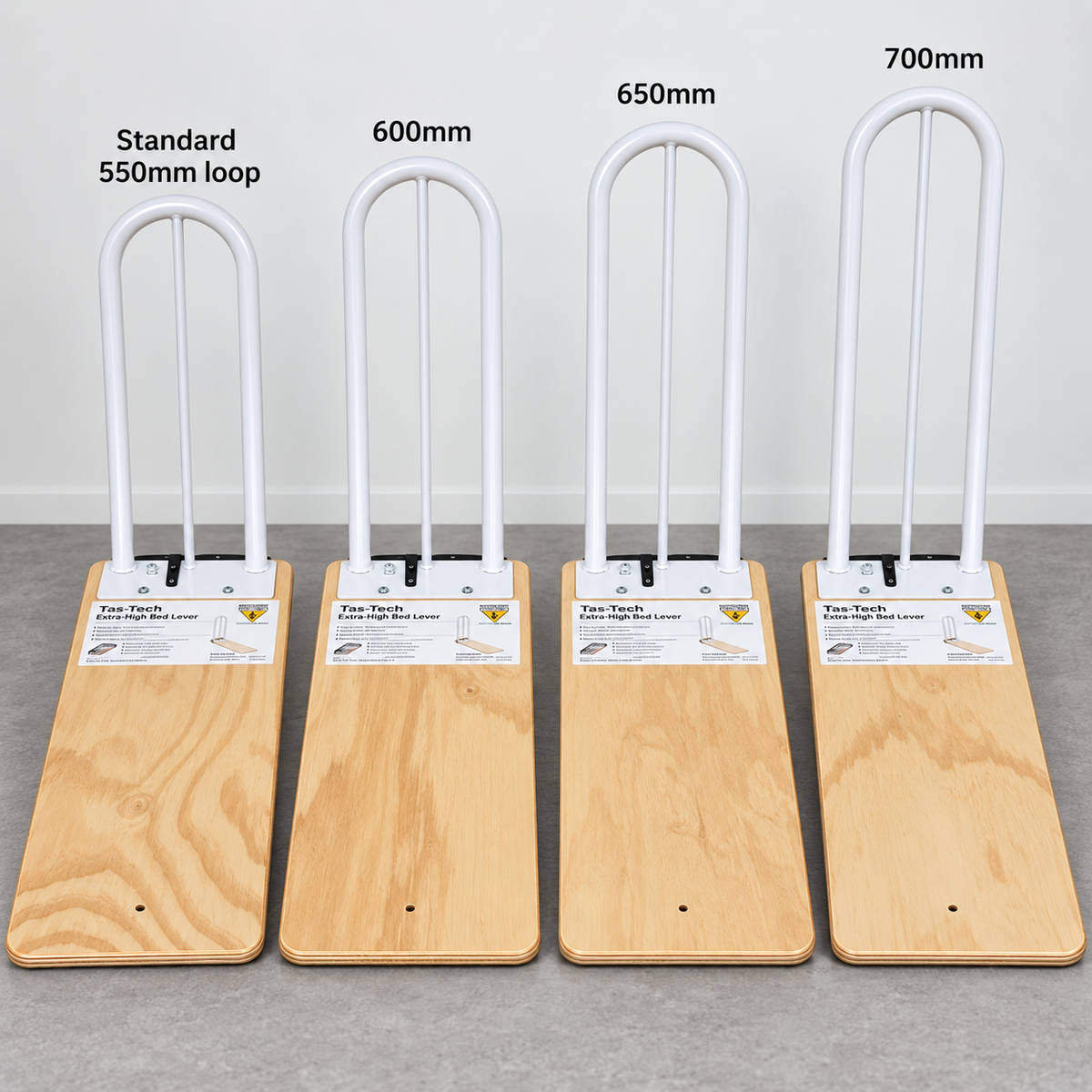

• Extra High models: 60 cm, 65 cm or 70 cm loop heights on an 80 cm flat base.
• Bariatric Winged model: reinforced construction, 55 cm loop height and 210 kg maximum user weight.

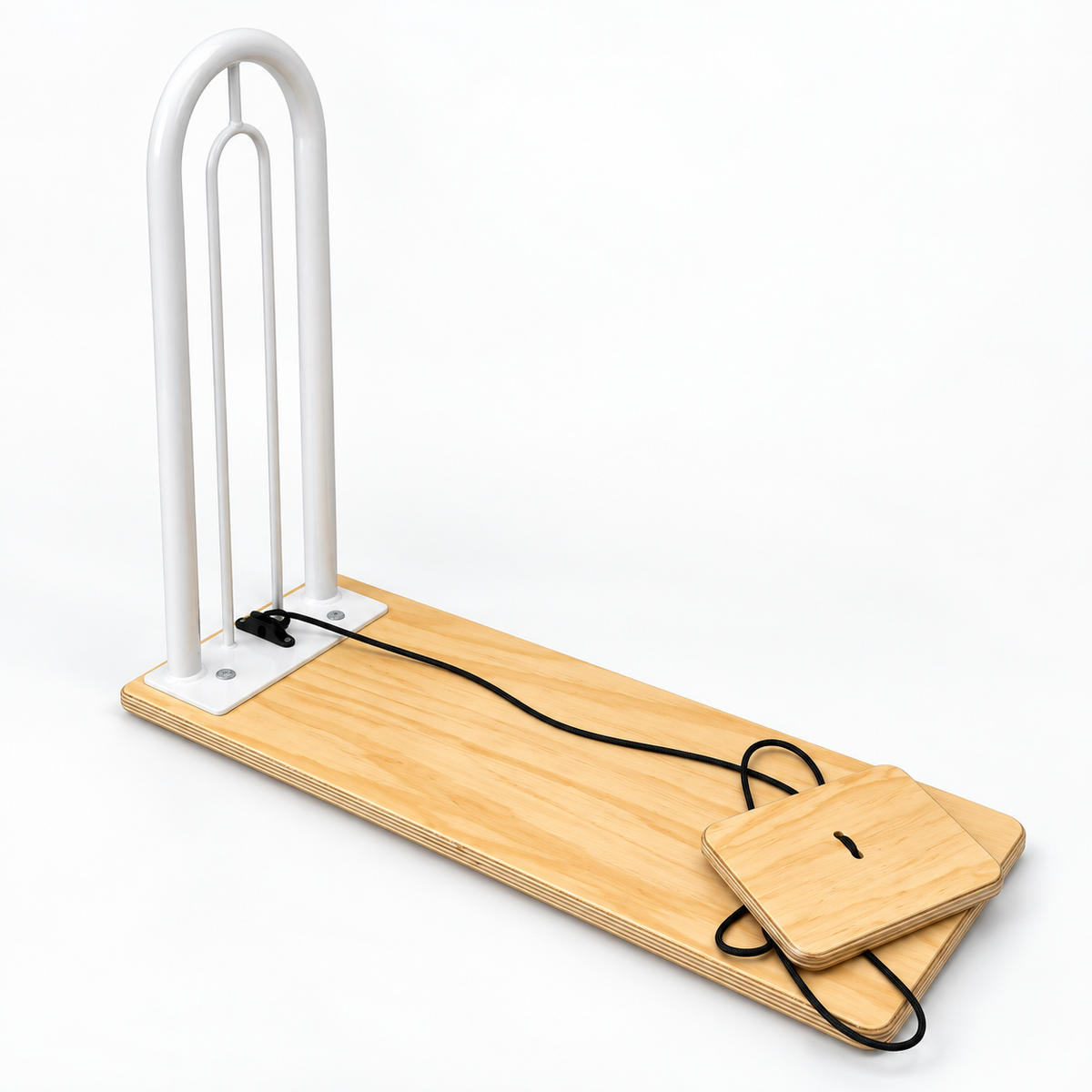

• Cord and cleat included to secure the lever firmly in position.
• 18 mm plywood base construction with steel support loop.
• Designed for suitable conventional beds; not suitable for profile beds.
• Manufactured in Christchurch, New Zealand.
• 3-year full replacement warranty.

Choosing the Right Configuration

Choose the configuration to suit the bed construction, mattress height and the user's safe reach. Standard flat- and stepped-base versions are available with 60 cm or 80 cm base lengths. The Extra High versions use an 80 cm flat base with a taller 60, 65 or 70 cm loop for beds where the standard 55 cm loop would sit too low. The Bariatric Winged model uses reinforced construction and increases the maximum user weight to 210 kg.

A taller loop or longer base is not automatically better. The lever should be positioned so it can be reached comfortably without over-stretching, while avoiding unsafe gaps around the mattress, headboard, footboard or wall.

Installation and Safety

The base fits between the mattress and bed base and must be secured with the supplied cord and cleat. The mattress should be firm enough that it does not compress excessively and create a hazardous gap beside the lever.

Keep the gap between the mattress edge and the bed lever below approximately 10 cm. The lever bar should also be positioned more than approximately 31.8 cm from a wall, headboard or footboard where relevant, helping avoid smaller entrapment spaces. Recheck the fixing regularly, particularly after the bed is made or the mattress has been moved.

Installation guide: Tas-Tech Bed Lever Installation & Risk Assessment Guide (PDF)

Frequently Asked Questions

What configurations are available?

There are eight: four standard base configurations, three Extra High loop-height options and one Bariatric Winged model.

What is the maximum user weight?

The standard and Extra High configurations have a 150 kg maximum user weight. The Bariatric Winged model has a 210 kg maximum user weight.

Does the bed lever support a person's full body weight?

No. It is intended as a balance and movement support while changing position between lying, sitting and standing, not as a full body-weight support.

What is the standard loop height?

The standard configurations use a 55 cm loop.

Which Extra High loop heights are available?

60 cm, 65 cm and 70 cm.

What base options are available on the standard model?

Flat or stepped bases are available in 60 cm and 80 cm lengths.

What base does the Extra High model use?

The Extra High options use an 80 cm flat base, approximately 29 cm wide.

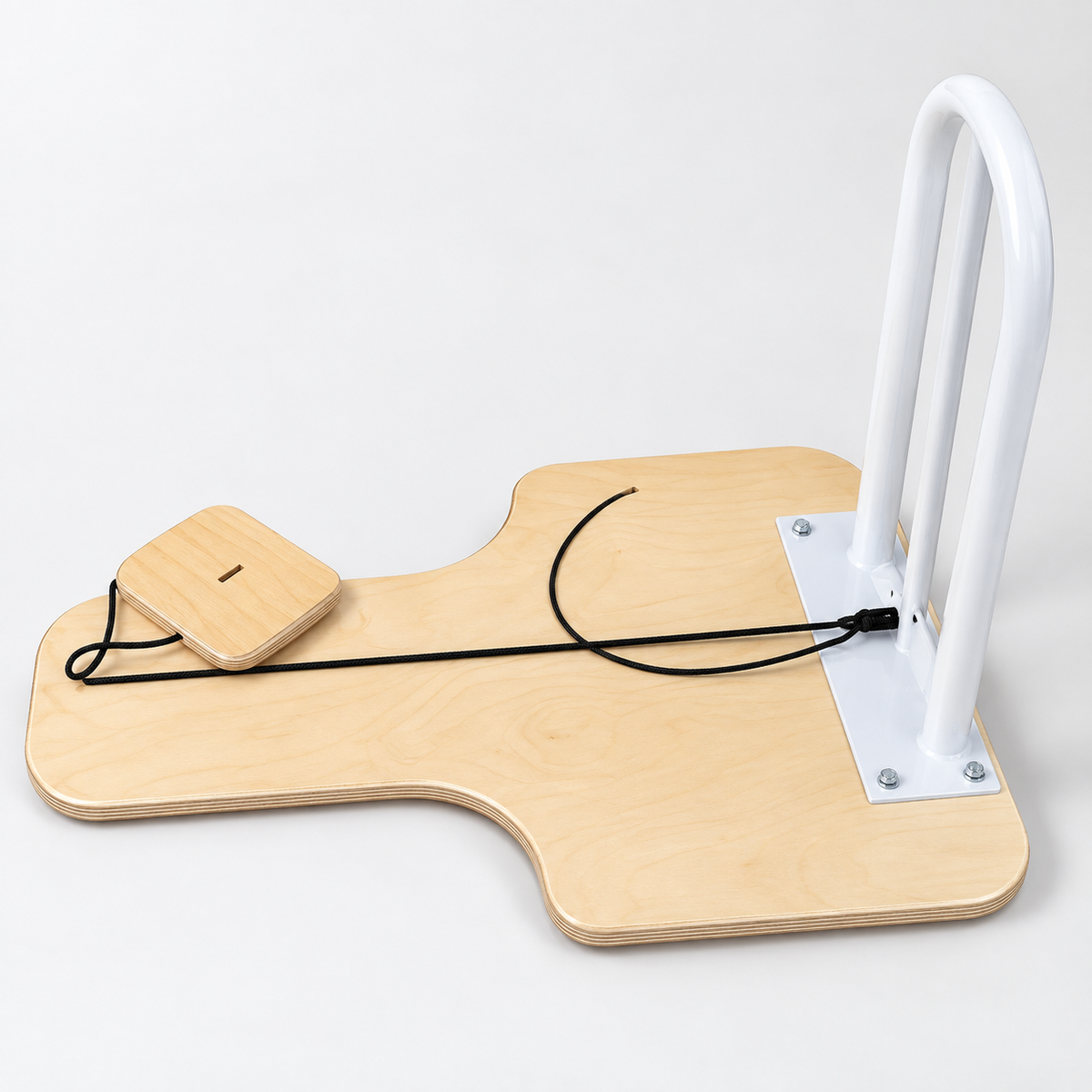

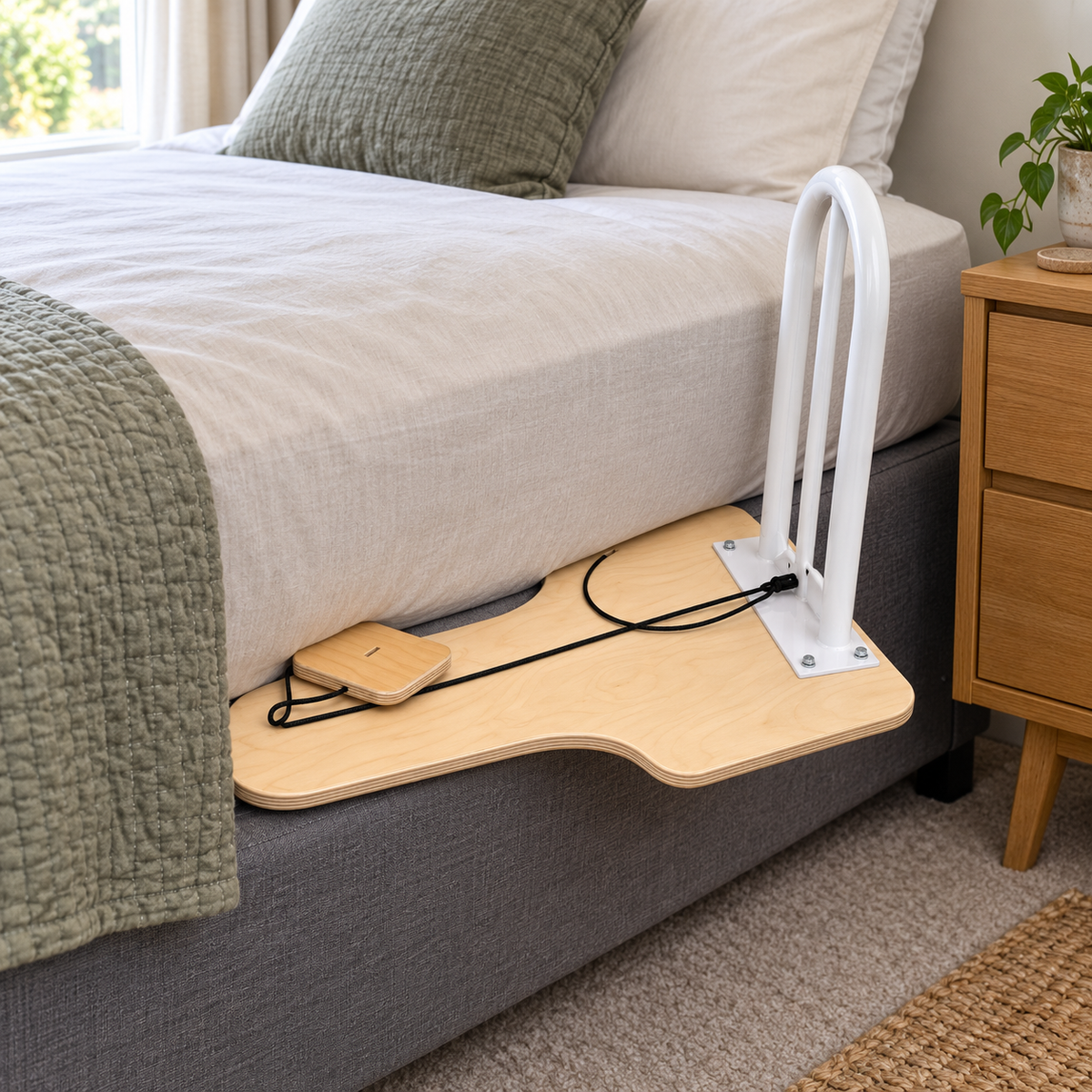

What is different about the Bariatric Winged model?

It uses reinforced construction and a winged base, with a 210 kg maximum user weight and 55 cm loop height.

Is the cord and cleat included?

Yes. The securing cord and cleat are included with the bed lever.

Can these bed levers be used on a profile or electric care bed?

No. This range is intended for suitable conventional beds and is not suitable for profile beds.

How much do the standard models weigh?

The 60 cm standard models weigh approximately 2.9 kg and the 80 cm standard models approximately 3.5 kg.

How close can the lever sit to the mattress?

The mattress-to-lever gap should remain below approximately 10 cm once the lever is correctly secured.

How far should the lever bar be from a wall or headboard?

Where relevant, keep the lever bar more than approximately 31.8 cm from a wall, headboard or footboard to reduce entrapment risk.

How often should the cord and cleat be checked?

Check the fixing regularly and refit it whenever the bed or mattress has been moved or remade.

Is the range made in New Zealand?

Yes. The bed lever range is manufactured in Christchurch, New Zealand.

What warranty applies?

A 3-year full replacement warranty applies.
