Grab Rails, Bath Rails & Bed Levers: Choosing the Right Support at Home
Share
The right handhold depends on the movement you are trying to make easier. A fixed wall grab rail is usually the best choice when dependable structural support is needed. A suction rail is better treated as a temporary light steadying handle. A clamp-on bath rail gives a handhold at the bath edge without drilling the wall. A bed lever is a different kind of support again, helping with movement at the side of a suitable conventional bed.
MoveSmart's current range now covers several quite different support styles, so this guide compares them in practical terms and explains when each one makes sense.
Quick comparison: which handhold suits which job?
| Support type | Best for | How it fixes | Important limitation | MoveSmart example |
|---|---|---|---|---|
| Fixed straight / shaped grab rail | Regular shower, toilet or transfer support where the wall can be structurally fixed | Permanent wall fixing | Position and wall structure matter as much as rail shape | Straight Grab Rail, 45° Angled Rail, L-Shaped Rail |
| Fold-up grab rail | Support beside a toilet or other transfer area where clear space is also useful | Permanent wall fixing | Needs strong structural mounting and enough room to fold | Fold-up Grab Rail |
| Suction handrail | Temporary light steadying on a suitable smooth, non-porous surface | Vacuum suction cups | Not for full body-weight support or primary transfer support | Vacuum Suction Cup Safety Handrail |
| Clamp-on bath rail | A removable upright handhold at a compatible bath edge | Clamps to the bath | Bath construction must suit the clamp; force direction matters | Roma Bath Grab Bar |
| Bed lever | Supported movement between lying, sitting and standing at a suitable bed | Base under mattress plus securing cord/cleat | Not a universal bed rail and not suitable for profile beds | Tas-Tech Bed Lever |

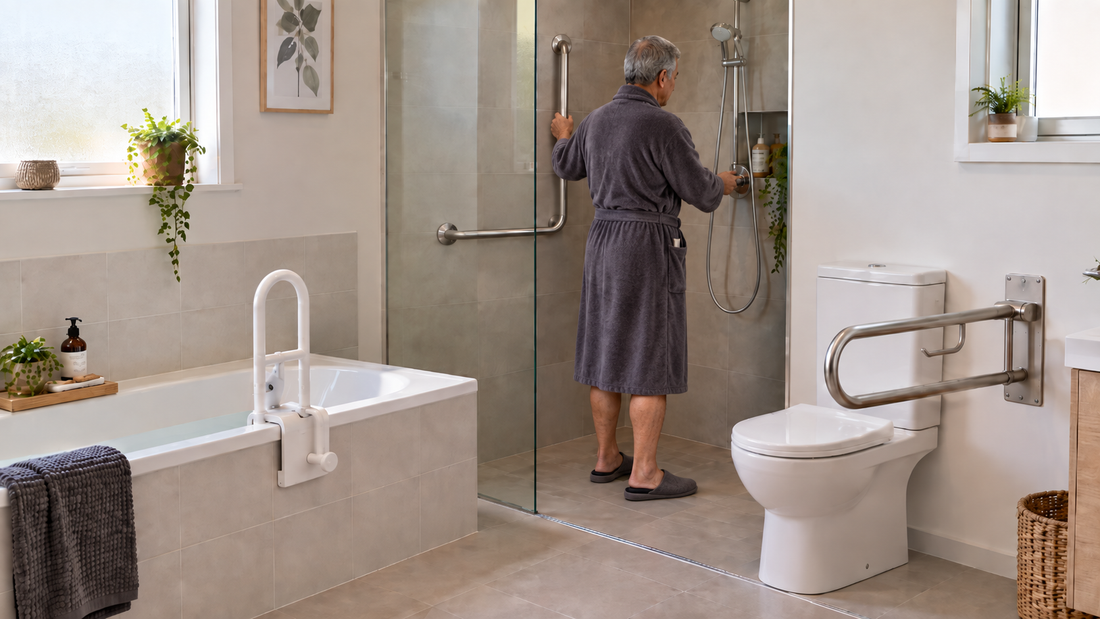

A simple way to picture the four main support types
Permanent structural support when correctly installed.
Removable steadying point on the right surface.
Removable upright support fixed to a suitable bath edge.
A bedside handhold secured beneath the mattress.
Fixed grab rails: choose the shape around the movement
Fixed grab rails make the most sense when the support needs to be available in the same place every day and the wall can be structurally fixed. The rail shape changes how the hand can move through the task.
Useful where the hand stays at a similar height through a movement.
Useful where the hand needs to move up or down while stepping or standing.
Gives a changing hand height along one continuous rail.
The Goldfern Straight Grab Rail comes in a wide range of lengths and can suit many bathroom or hallway layouts. The 45° Angled Grab Rail gives a diagonal grip where the hand naturally changes height through sitting, standing or stepping.
An L-Shaped Grab Rail provides both horizontal and vertical gripping sections from one fixed installation. The T-Shaped Grab Rail combines two gripping directions in a shower layout and includes a shower-head holder.
These fixed Goldfern rail ranges are published as NZS 4121 compliant, but installation still has to suit the wall structure and the actual user. Wall lining alone should not be assumed to provide adequate support; a competent installer should confirm the fixing method.
When is a fold-up rail useful?
The Goldfern Fold-up Grab Rail gives a substantial wall-mounted support point that can be raised out of the way when extra clearance is needed. That is particularly useful beside a toilet or in a shared bathroom where a permanently projecting rail would get in the way.
The folding mechanism does not make the installation less structural: the wall plate still needs secure fixing. Before use, check the rail is fully lowered into its intended operating position and that the mounting and rubber tip remain secure.
Where the new suction handrail fits
The Vacuum Suction Cup Safety Handrail fills a different gap. It is a removable steadying handle for suitable smooth, flat, non-porous surfaces such as appropriate glazed tile, glass, smooth acrylic or metal.
That makes it useful in rental homes, guest bathrooms or while travelling, where drilling into a wall is not practical. It also means the surface and seal become part of the safety check. Both suction cups need full contact, so grout lines, textured tile and porous or uneven surfaces can stop it sealing properly.
If the task involves substantial force — for example pulling up from a low toilet or taking significant weight while stepping over a bath edge — a fixed structural rail or another purpose-built support is usually the more appropriate route.
Clamp-on bath rails solve a very specific problem
The Roma Bath Grab Bar clamps directly onto a compatible bath edge, giving an upright handhold without wall drilling. Its clamp suits bath sides approximately 7.5–18 cm wide, and the published safe working load is 275 kg when used for downward pressure as intended.
That last part matters. The Roma is designed for downward loading; it should not be treated as a rail for strong sideways or outward pulling. Bath construction also varies, so the edge needs to be structurally suitable for a clamp fitting.
If stepping over the bath edge is still the main problem, a rail may not be enough on its own. A bath transfer bench can change the movement from stepping over the edge to a seated lateral transfer. Our broader Bathroom Safety Guide compares rails, shower seating and other bathing aids.
A bed lever is a handhold — not a bedside barrier
The Tas-Tech Bed Lever with Cord & Cleat provides a reachable handhold for moving between lying, sitting and standing at the side of a suitable conventional bed. The base sits beneath the mattress and is secured with the supplied cord and cleat.
Standard and Extra High configurations have a 150 kg maximum user weight, while the Bariatric Winged version is rated to 210 kg. Those ratings do not mean the lever is intended to take the user's full body weight; it is a movement and balance support.
A bed lever is also not the same as a long bed rail designed as a barrier along the mattress edge. Bed rails are not a universal fall-prevention device and can create entrapment or climbing risks for some users. The Tas-Tech lever itself needs careful positioning so unsafe gaps are not created, and it is not suitable for profile beds.
For wider bedroom planning, see our Bedroom Furniture for Home Care, Beds & Mattresses Guide and Furniture Raisers Guide.
What if the wall is not suitable for a fixed rail?
Sometimes the answer is not to find a different rail at all.
- Beside a toilet, a free-standing toilet surround can provide two supportive arms without structural wall fixing.
- If toilet height is also a problem, compare a raised seat, over-toilet frame and surround in our toilet support comparison.
- If prolonged standing is the issue in the shower, a shower chair or wall-mounted seat may reduce how long the user needs to stand.
- If the bath edge itself is the difficult movement, a transfer bench may be more useful than adding another rail.
This is why our Fall Prevention at Home guide looks at routes, lighting, seating, toileting and walking aids as well as grab rails. One good handhold can help, but it works best as part of the whole setup.
How to choose the right support
Before ordering a rail or lever, work through these questions:
- What movement is difficult? Stepping, turning, lowering, standing, rolling in bed or moving from lying to sitting?
- Which direction will force be applied? Downward, sideways, outward or through a changing hand height?
- How much support is needed? Light steadying is very different from substantial transfer support.
- What can the product fix to? Structural wall, smooth tile, bath edge or mattress/base?
- Is the support permanent or temporary? Rental and travel needs can make removable equipment more appealing.
- Will the support get in the way? Think about shared bathrooms, carers, shower doors and room for other equipment.
- Can the user reach it without over-stretching? A rail that is technically strong but badly positioned can still be unhelpful.
When professional assessment is worth it
An occupational therapist can be particularly useful where rail position, transfer technique, bathroom layout, bed access or entrapment risk is not straightforward. A physiotherapist may also be involved where balance, gait or lower-limb strength changes the way support is used.
Fixed grab rails should be installed into suitable structural support by a competent installer using fixings appropriate for the wall. For a bed lever, follow the product's installation and risk-assessment instructions and recheck the securing system whenever the mattress or bed has been moved.
Frequently asked questions
Is a suction grab rail as safe as a fixed rail?
No. A suction rail is removable and depends on the surface and vacuum seal. The MoveSmart suction handrail is intended for light steadying, not full body-weight or primary transfer support.
Can I fit a suction rail over grout lines?
No. Both suction cups need full contact with a smooth, flat, non-porous surface. Grout lines and textured tiles can prevent a reliable seal.
Should a suction rail be checked every time?
Yes. Check the indicator and gently test the rail before every use. Moisture, contamination, temperature and movement can all affect the seal.
Can a towel rail be used as a grab rail?
No. A towel rail should not be assumed to have the structure or fixing needed for body support.
Is a horizontal or vertical grab rail better?
Neither is automatically better. Choose the direction according to how the user's hand moves through the task. Angled and L-shaped rails can help where more than one hand position is useful.
When does a fold-up grab rail make sense?
It is useful where substantial fixed support is needed but the rail also needs to move out of the way, commonly beside toilets or in shared spaces.
Does the Roma Bath Grab Bar need drilling?
No. It clamps to a suitable bath edge between approximately 7.5 and 18 cm wide.
Can I pull sideways on the Roma Bath Grab Bar?
No. Its published 275 kg safe working load applies to downward pressure as intended, not strong sideways or outward pulling.
What is the difference between a bed lever and a bed rail?
A bed lever is a smaller reachable handhold for supported movement at the bed edge. A longer bed rail may act as a barrier as well as a handhold and introduces different entrapment and climbing considerations.
Can the Tas-Tech Bed Lever be used on a profiling care bed?
No. The current Tas-Tech lever range is intended for suitable conventional beds and is not suitable for profile beds.
Does a higher-capacity bed lever mean I can pull my full body weight on it?
No. The lever is intended for support during movement and balance, not as a full body-weight lifting device.
Can MoveSmart help me choose a rail shape?
Yes. Contact MoveSmart with photos of the area, the movement that is difficult and any relevant dimensions. For complex transfers or uncertain placement, an occupational therapist assessment is also useful.
