AMW Titan HT (Heavy Terrain) Scooter

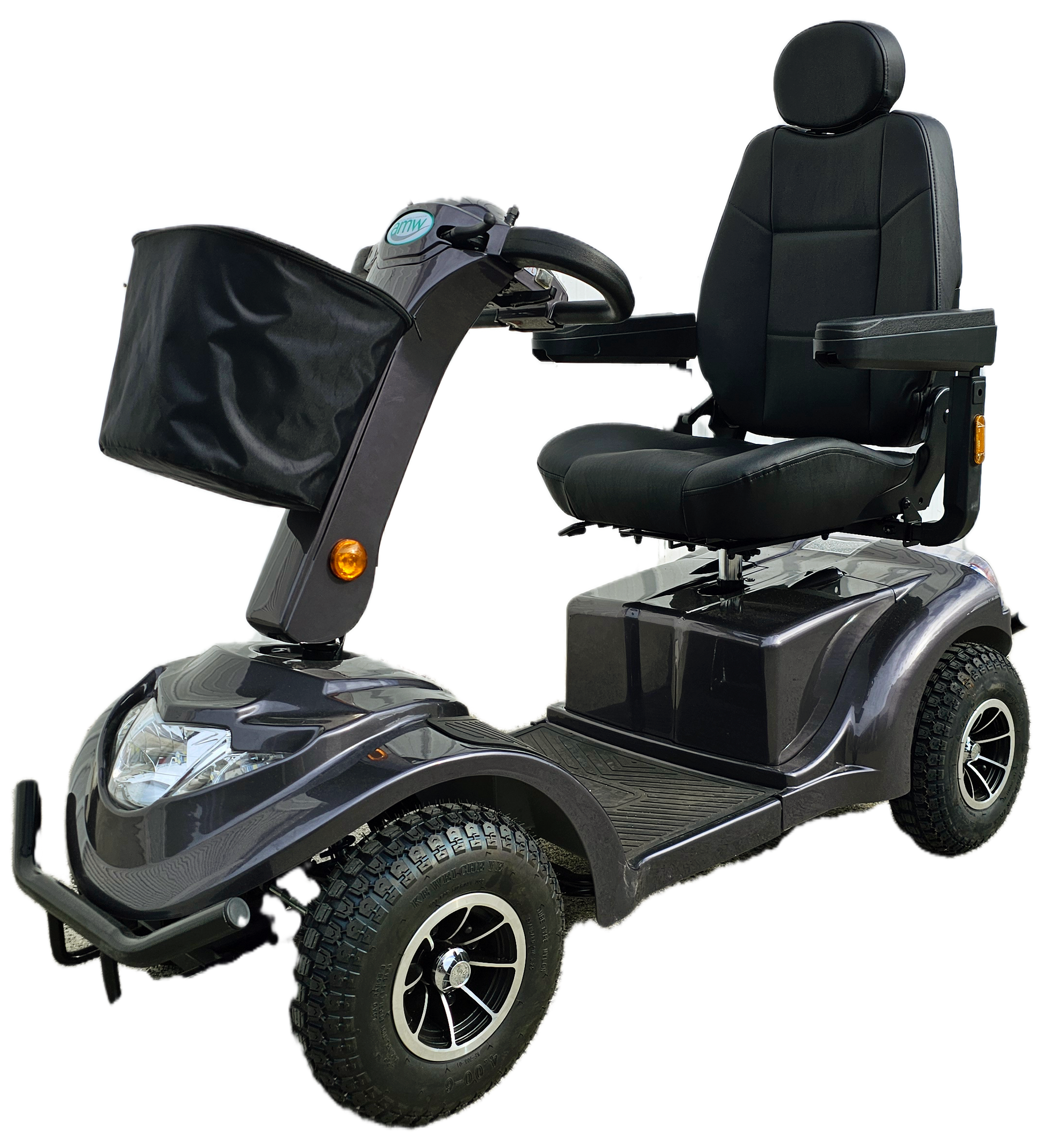

AMW Titan HT Heavy Terrain Mobility Scooter

The AMW Titan HT is a large heavy-terrain mobility scooter for riders who need substantial motor power, generous ground clearance and a comfortable suspended platform for longer outdoor travel. It uses a 1200W motor, 35.6 cm (14") tyres, full suspension and two 75Ah GEL batteries, putting it firmly in AMW's heavy-duty outdoor class.

With up to 18 km/h maximum speed, around 35–40 km of range in suitable conditions and 16 cm ground clearance, the Titan HT is designed for people whose regular routes go beyond smooth shopping-centre floors and ordinary pavement use.

Heavy-Terrain Capability

The 1200W drive system gives the Titan HT much more reserve than AMW's smaller Explorer and Discovery scooters, while the 35.6 cm (14") tyres and full suspension help it cope with firm gravel, grass, rougher paving and other uneven outdoor surfaces.

That extra capability comes with a larger chassis and greater turning space. The Titan HT is therefore most useful when outdoor performance matters more than compact manoeuvrability around tight indoor areas.

Large Battery Capacity for Longer Outdoor Journeys

Two 75Ah 12V GEL batteries provide the energy for longer-distance use. Range is around 35–40 km per charge in suitable conditions, but rider weight, gradients, terrain, temperature, battery age and driving style all affect actual distance.

For trips farther from home, plan with a sensible reserve rather than relying on the maximum range figure. Keeping the batteries regularly charged and in good condition also helps maintain predictable performance.

Adjustable Seating and Controls

The seat adjusts forward and back, swivels for easier access, changes height and allows backrest adjustment. This helps the riding position suit different leg lengths and seating preferences.

A P&G controller manages the drive system. Electronic regenerative braking slows the scooter when the throttle is released, and a dash-mounted brake release is provided for appropriate freewheel use.

Titan HT or Maxi HT?

The Titan HT and Maxi HT share many of the same core performance specifications, including the 1200W motor, 75Ah GEL batteries, 35.6 cm (14") tyres, 16 cm ground clearance, full suspension and the same combined owner’s manual. They should therefore be compared as two large AMW heavy-terrain options rather than as completely different classes of scooter.

When choosing between them, physical fit, current configuration, availability and personal preference are likely to matter as much as headline performance. A test drive is the best way to decide which platform feels right for the rider.

Key Features

• 1200W motor.
• 2 × 75Ah GEL 12V batteries.
• 35.6 cm (14") tyres.
• Full suspension.
• Up to 18 km/h maximum speed.
• Approx. 35–40 km range, depending on conditions.
• 150–200 kg user-capacity range, depending on terrain and use.
• 16 cm ground clearance.
• 15° climbing grade under suitable conditions.
• Electronic regenerative braking.
• 24V DC system.
• Adjustable seat with fore/aft, swivel, height and backrest adjustment.
• Dash-mounted brake release.
• P&G controller.

AMW Maxi/Titan (HT) Scooter Owners Manual

Who Is the AMW Titan HT Best Suited To?

The Titan HT is best considered by riders who expect to spend significant time outdoors and need a full-size scooter with high ground clearance, large batteries and strong motor performance. Rural properties, longer community journeys and firm mixed surfaces are where its size and capability make the most sense.

If the rider mainly travels on sealed footpaths and around shops, the smaller Discovery may be easier to live with. The Titan HT earns its place when the extra performance and chassis size are genuinely useful.

Frequently Asked Questions

What motor does the AMW Titan HT use?

The Titan HT uses a 1200W motor.

What batteries are fitted?

It uses two 75Ah GEL 12V batteries.

What is the user capacity?

The user-capacity range is 150–200 kg depending on terrain and use. For higher user weights, suitability should be considered against the intended terrain and operating conditions.

What is the maximum speed?

The maximum speed is up to 18 km/h.

What travel range can I expect?

Range is approximately 35–40 km per charge. Actual distance varies with rider weight, terrain, gradients, temperature, battery condition and driving style.

What size are the tyres?

The Titan HT uses 35.6 cm (14") tyres.

Does it have suspension?

Yes. It has full suspension.

What is the ground clearance?

Ground clearance is approximately 16 cm.

What is the turning radius?

The turning radius is approximately 165 cm.

What is the climbing grade?

The climbing grade is up to 15° under suitable conditions.

What braking system does it use?

The Titan HT uses electronic regenerative braking and has a dash-mounted brake release.

Is the seat adjustable?

Yes. The seat provides fore/aft, swivel, height and backrest adjustment.

What controller does it use?

The Titan HT uses a P&G controller.

Does it share an owner’s manual with the Maxi HT?

Yes. The combined AMW Maxi/Titan HT owner’s manual is linked above.

Is this mobility scooter available for delivery across New Zealand?

We can and do deliver to customers across New Zealand — however, mobility scooters and power chairs are more complex products and can be sizeable, so we generally recommend finding a local retailer who can provide hands-on service and ongoing support. It is also a good idea to test-drive or trial a mobility scooter before committing to a purchase. MoveSmart focuses its sales and servicing within the Central Plateau region, but we are always happy to chat. Get in touch and we can offer advice, suggest a trusted dealer closer to you, or work with you to tailor a solution.
