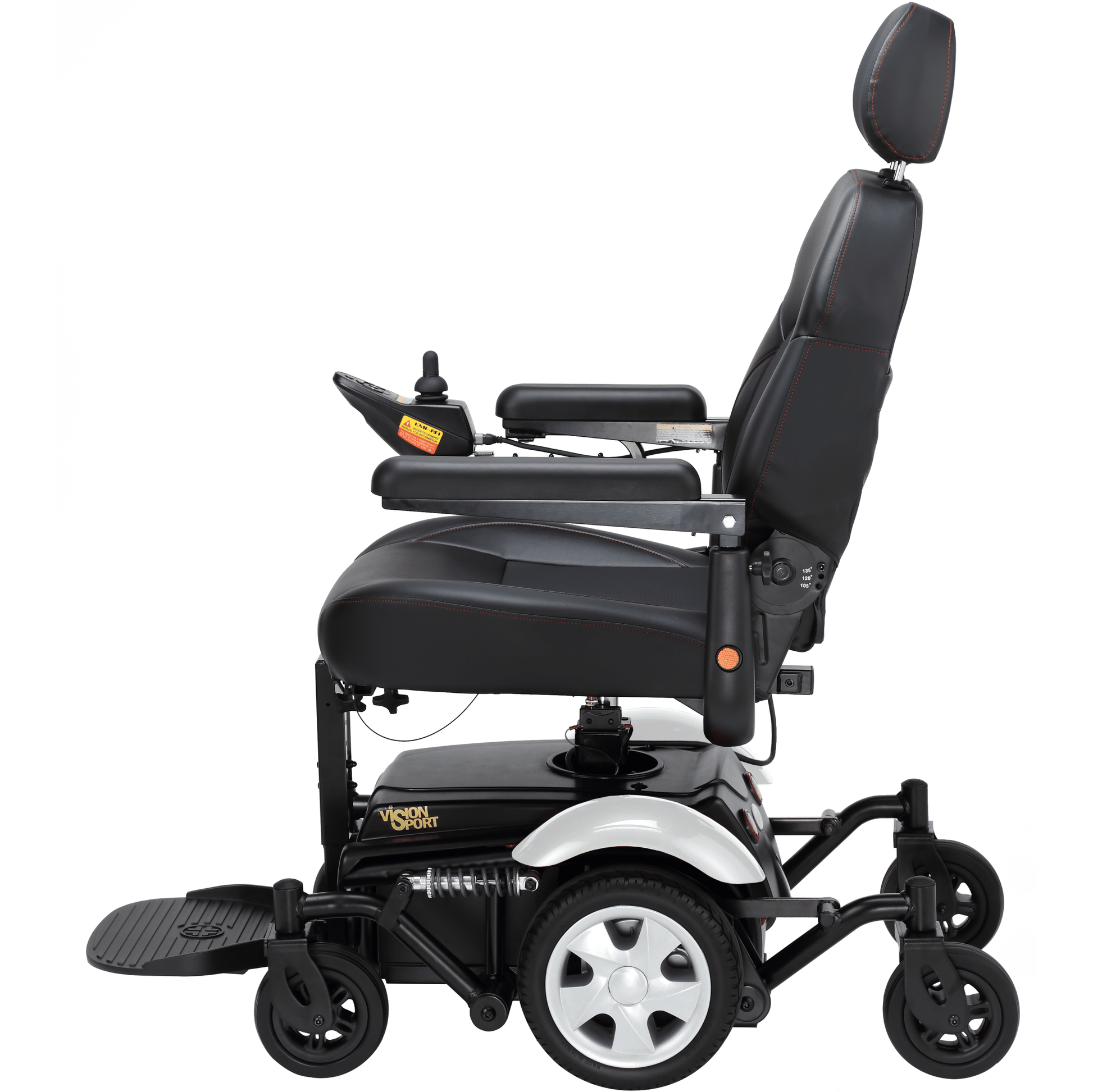

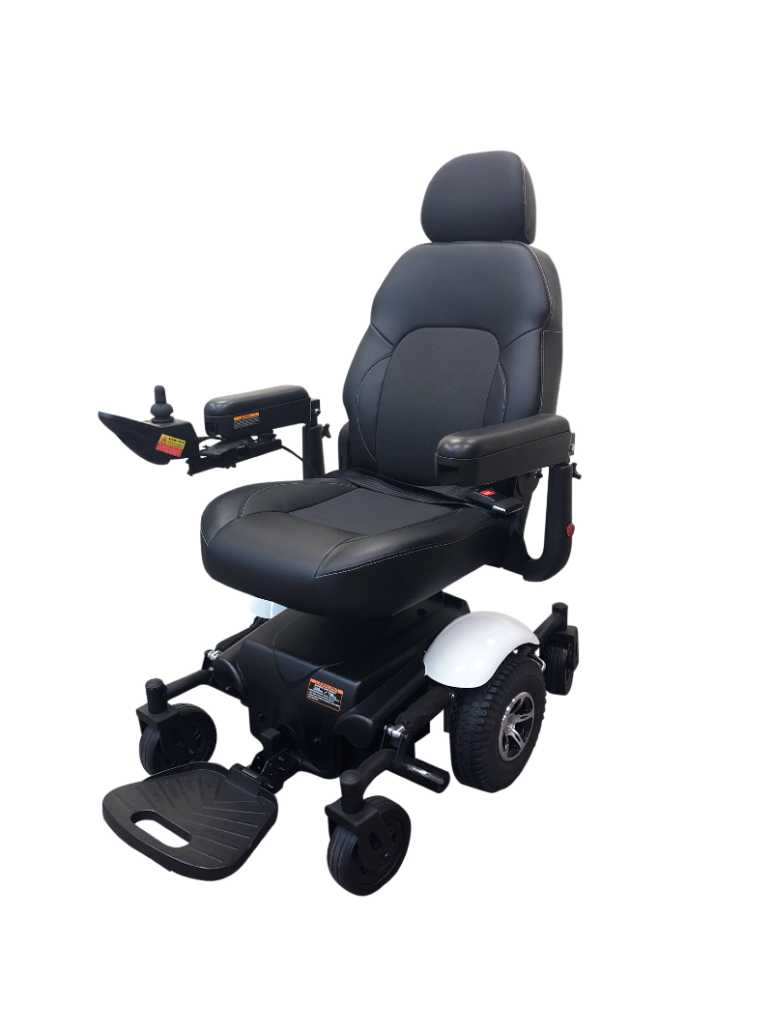

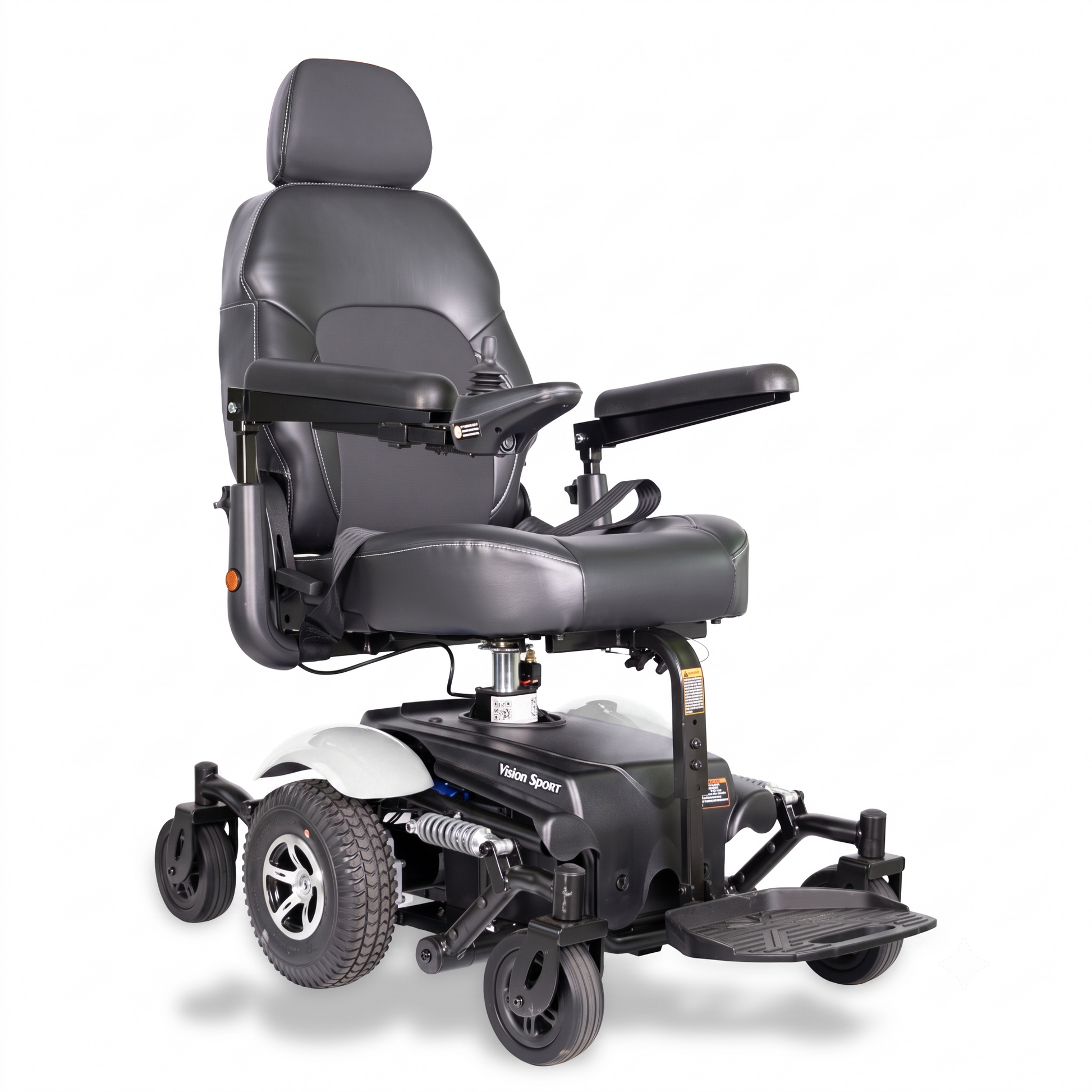

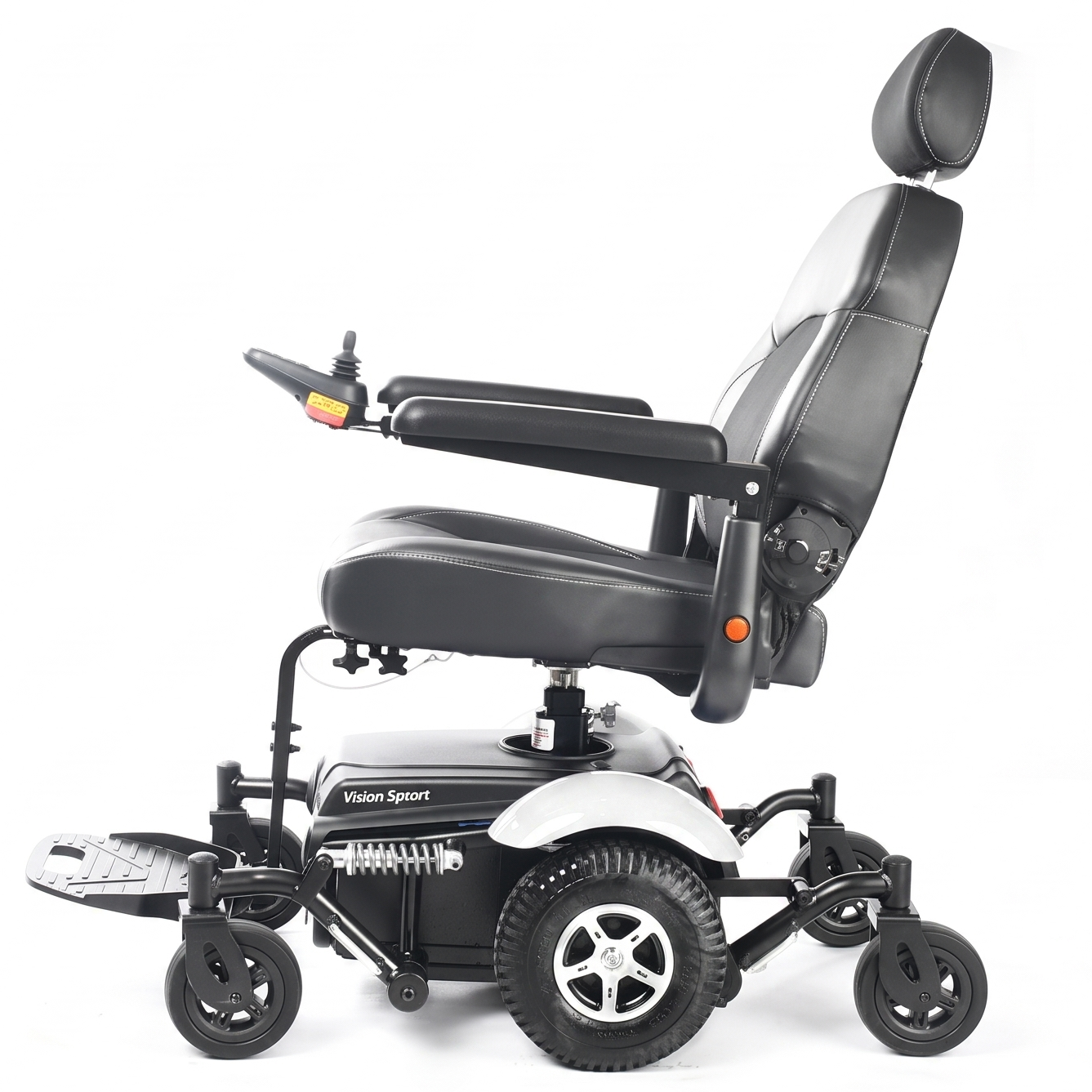

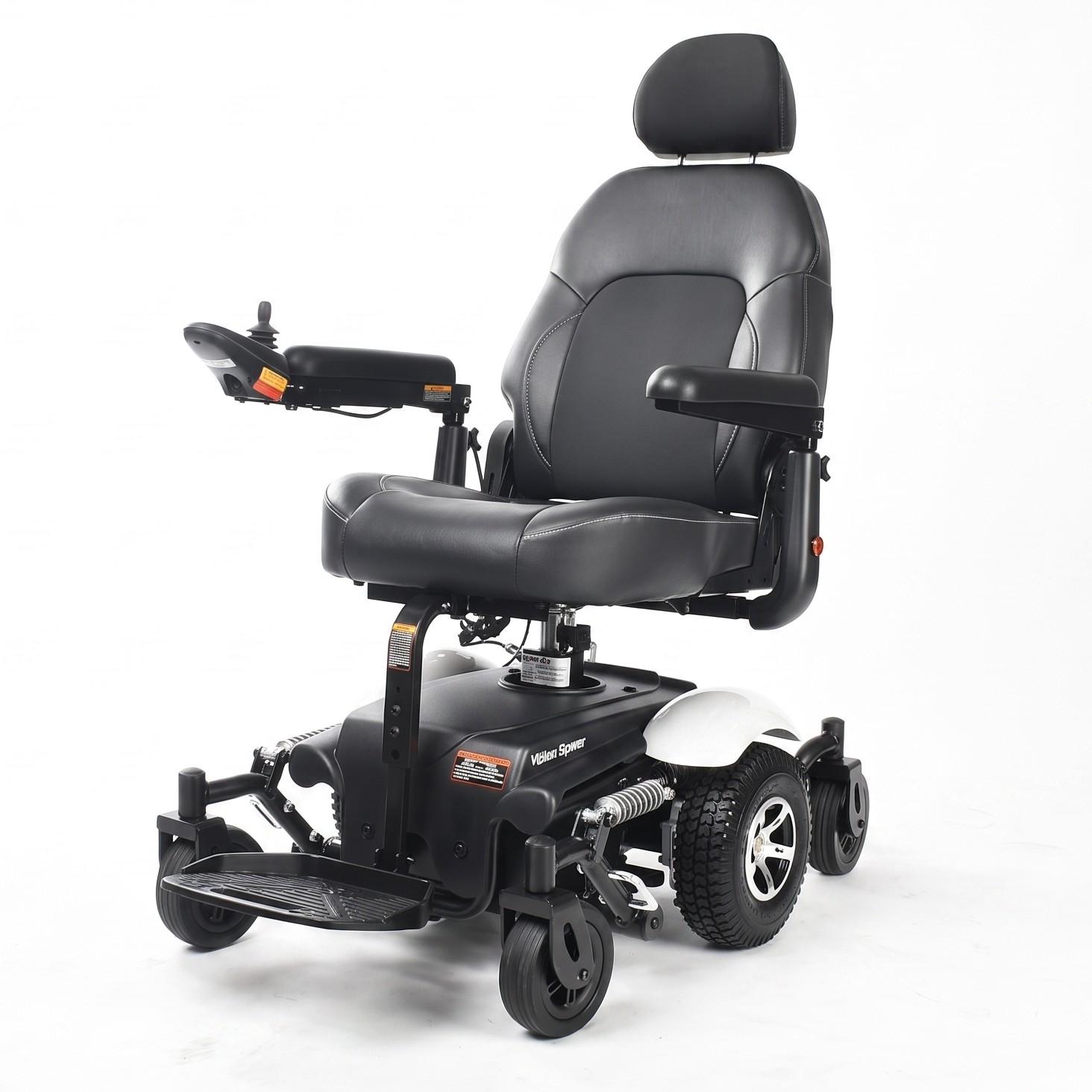

Merits Vision Sport Lift Power Chair
The Merits Vision Sport Lift Power Chair is a mid-wheel-drive power chair designed for precise indoor manoeuvring, outdoor comfort and powered seat-height adjustment. Its seat lift raises by up to 190 mm, helping the user reach higher surfaces and change eye level without transferring out of the chair.
The Vision Sport Lift supports users up to 136 kg, reaches up to 8 km/h, and has a stated maximum range of up to 28 km. Full front and rear suspension, dual in-line motors and a compact 500 mm turning radius support stable, responsive everyday driving.
Key Features
- 190 mm powered seat lift for adjustable seat height.
- Mid-wheel drive for tight indoor manoeuvrability.
- 500 mm turning radius.
- 136 kg maximum user weight.
- Maximum speed up to 8 km/h.
- Up to 28 km stated travel range.
- Full front and rear suspension.
- Dual in-line motors for efficient drive performance.
- Semi-reclining adjustable backrest.
- Height- and width-adjustable armrests.
- Adjustable seat height.
- 10-inch foam-filled drive tyres and 6-inch PU castors.
- White finish.
Merits Vision Sport Power Lift Chair Owners Manual
Why Choose the Merits Vision Sport Lift?
The Vision Sport Lift is useful for users who want the manoeuvrability of mid-wheel drive with the added function of a powered seat lift. Its compact turning circle works well indoors, while full suspension and larger drive wheels support everyday community use on suitable outdoor surfaces.
Matching the Powerchair to the User and Environment
Merits Vision Sport Lift Power Chair needs to suit both the seated user and the spaces where it will be driven. Seat width and depth, arm position, foot support and control placement all influence comfort and confident operation. At home, check doorway widths, turning areas, ramps and the approach to commonly used furniture; for community use, also consider transport, gradients and the surfaces encountered on usual journeys.
A practical trial is the best way to assess control response, transfer access and overall fit. Published range and performance figures are comparative rather than guaranteed, because load, terrain, temperature and battery condition affect real-world results. Consistent charging, tyre care and routine servicing help maintain reliable everyday performance.
Frequently Asked Questions
What is the maximum user weight?
The Vision Sport Lift supports users up to 136 kg.
What is the maximum speed?
The maximum speed is up to 8 km/h.
What is the stated range?
The NZ specification lists up to 28 km per charge. Actual range varies with user weight, terrain, gradients, battery condition, temperature, seat-lift use and driving style.

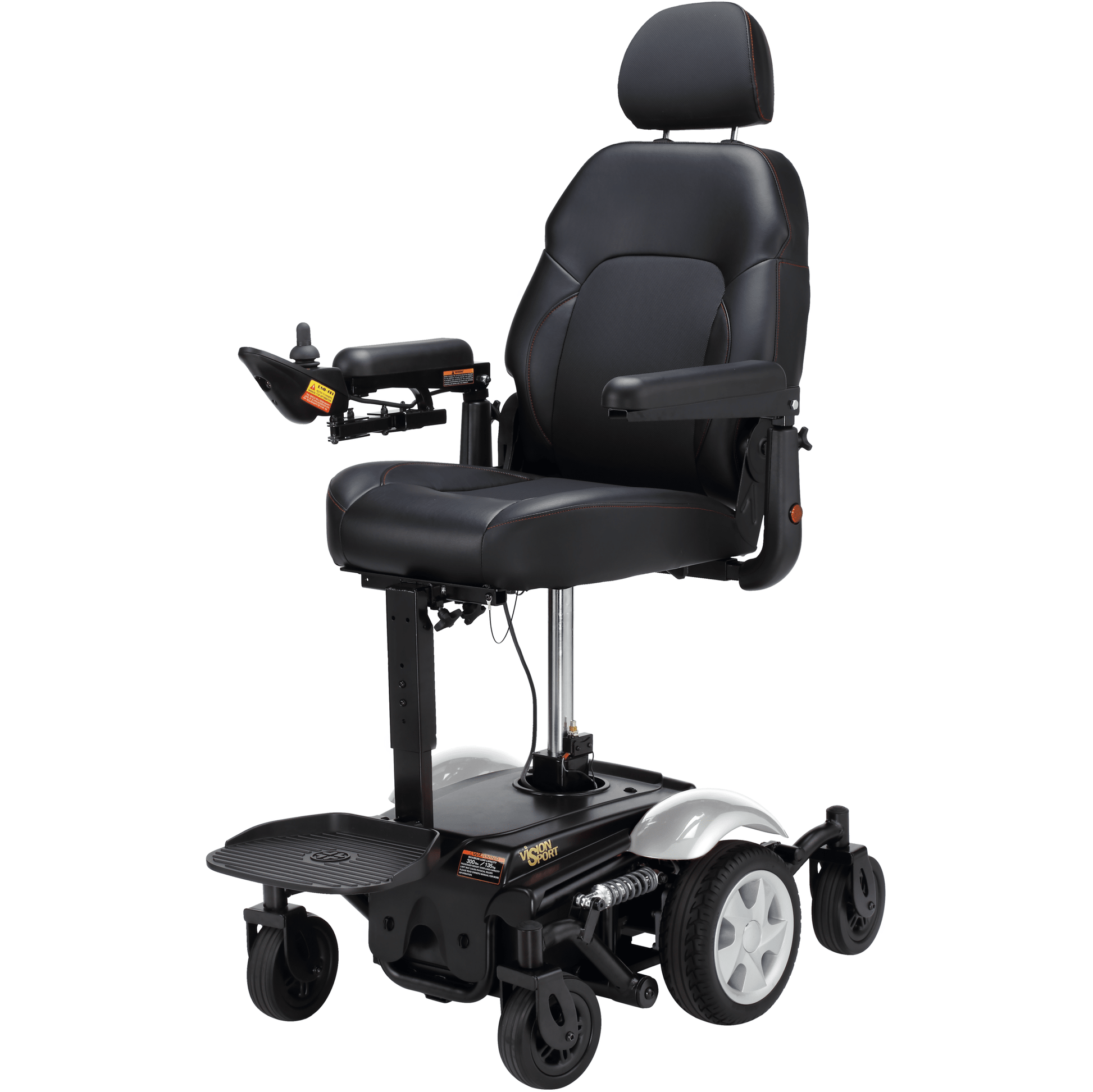

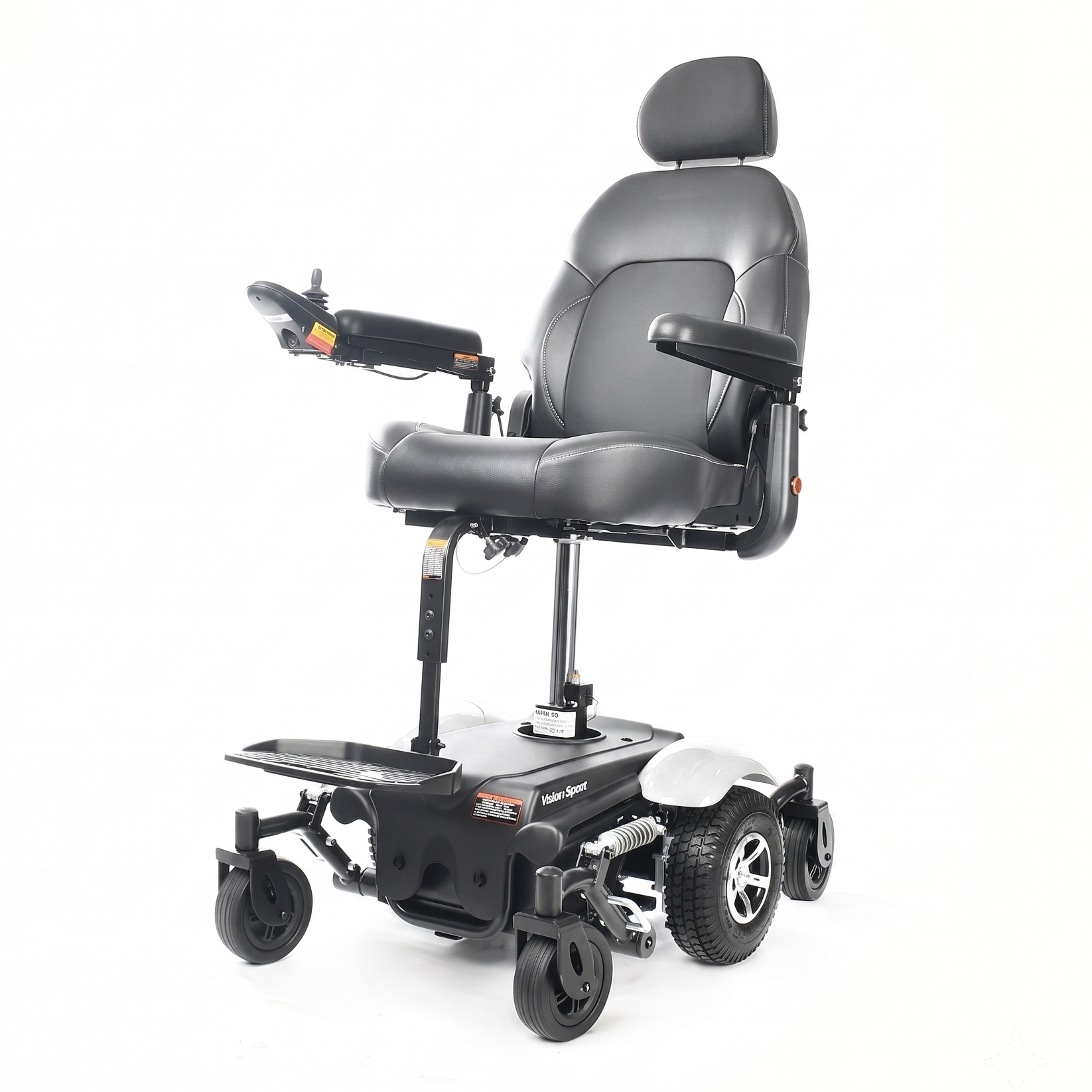

How high does the powered seat lift raise?
The powered seat lift provides up to approximately 190 mm of vertical adjustment.
What is the turning radius?
The current NZ specification lists a turning radius of approximately 500 mm.
Why is mid-wheel drive useful indoors?
Positioning the main drive wheels near the centre of the chair allows it to rotate in a relatively small footprint, which can help in corridors, kitchens and other tighter spaces.
Does it have suspension?

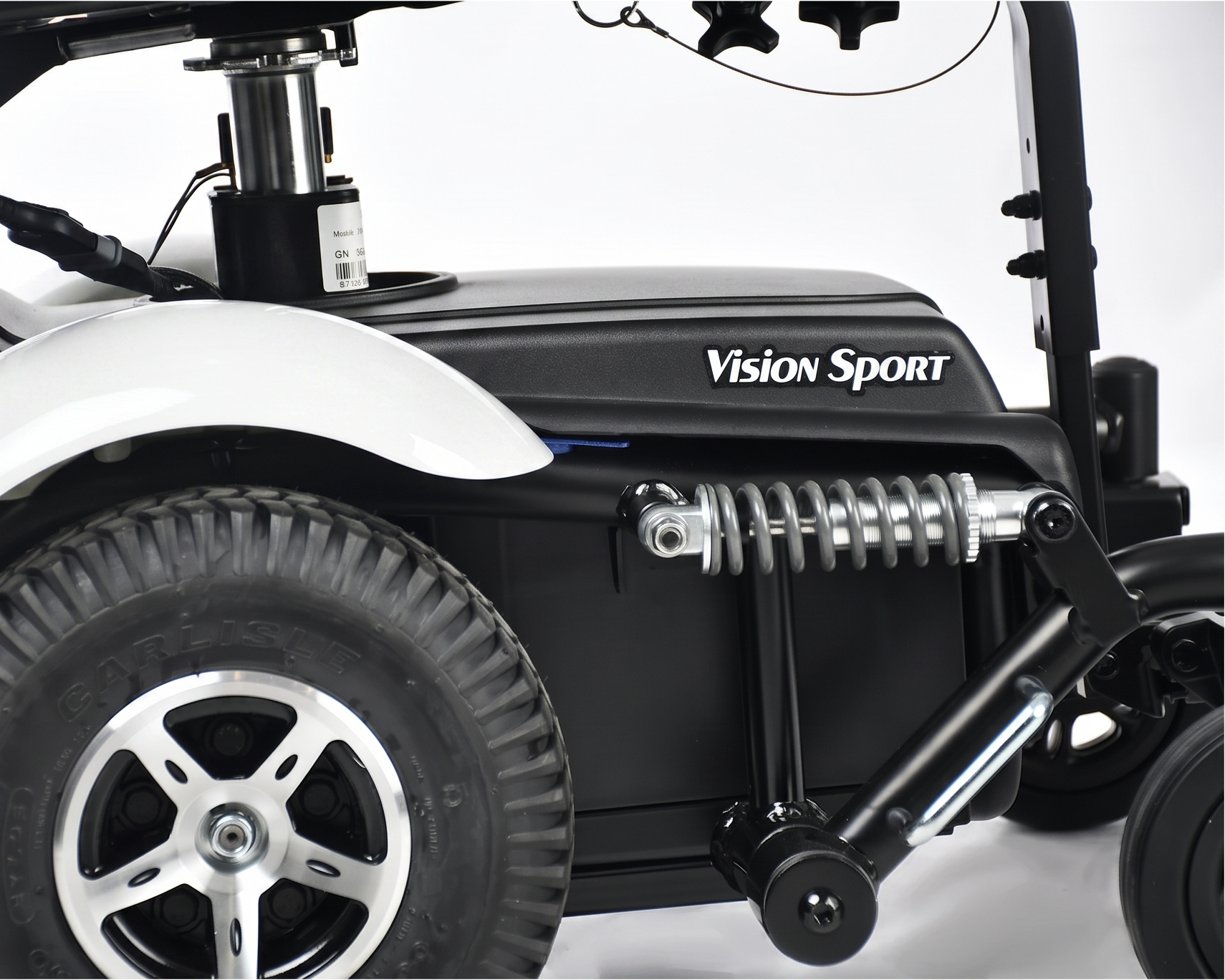

Yes. Full front and rear suspension helps absorb bumps and vibration on suitable surfaces.
What type of motors does it use?
The chair uses dual in-line drive motors. The motor specification is 160W rated with up to 520W maximum output.
What size are the wheels?
It uses 10-inch foam-filled drive tyres and 6-inch PU castors.
What is the ground clearance?
Ground clearance is approximately 50 mm.
Can the backrest be adjusted?
Yes. The backrest is semi-reclining and adjustable, and the armrests can also be adjusted for height and width.
What colour is available?
The current MoveSmart product is available in White.
Is an owner's manual available?
Yes. The Vision Sport owner’s manual is linked above.
Is this power chair available for delivery across New Zealand?
We can and do deliver to customers across New Zealand — however, mobility scooters and power chairs are more complex products and can be sizeable, so we generally recommend finding a local retailer who can provide hands-on service and ongoing support. It is also a good idea to trial a power chair before committing to a purchase. MoveSmart focuses its sales and servicing within the Central Plateau region, but we are always happy to chat. Get in touch and we can offer advice, suggest a trusted dealer closer to you, or work with you to tailor a solution.
| Specification | Details |
|---|---|
| Model | P326D |
| Maximum user weight | 136 kg |
| Maximum speed | 8 km/h |
| Stated maximum range | Up to 28 km |
| Turning radius | 500 mm |
| Ground clearance | 50 mm |
| Powered seat lift | 190 mm |
| Overall dimensions | 610 mm wide × 860 mm long × 1230 mm high |
| Drive wheels | 10-inch foam-filled tyres |
| Castors | 6-inch PU |
| Motor | DC 24V, 160W rated / 520W max |
| Battery | 12V U1 × 2 |
| Drive system | Mid-wheel drive, dual in-line motors |
| Suspension | Full front and rear |
| Colour | White |
